Platinum Tools EXO ezEX-RJ45 Termination Kit
SKU: PT90140
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Platinum Tools Termination Kit

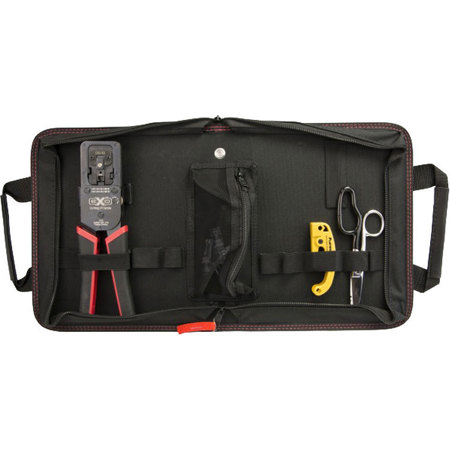

The EXO ezEX-RJ45 Termination System is the perfect mix of tools for new or experienced installers. You don't want to leave home without these essential tools. This kit includes electrician scissors, cable jacket stripper, EXO Crimp Frame, EXO-EX Die and 10 ezEX44 connectors. All tools and connectors come neatly organized in the Platinum Tools heavy-duty nylon zippered case.
-- EXO Crimp Frame with EXO-EX Die --
The patented EXO Crimp Frame with EXO-EX Die was developed to terminate larger cables and conductors (typically Cat6/6A). EXO Crimp Frame with EXO-EX Die is designed for the ezEX-RJ45 connectors. The ezEX-RJ45 connectors are an RJ45 pass through connector, developed for larger cables and conductors. Integrated Hi-Lo stagger for improved performance, one piece design pass through system. The EXO Crimp Frame has a patented push button lock, ergonomic TPR handles and works with the EZ-RJ45 Die for terminating EZ-RJ45 connectors.
-- Cat 5/6 Cable Jacket Stripper --
This economical tool strips the cable jacket from Cat5/5e/6 twisted pair cables with professional results. Features a long life blade specifically designed to self-adjust to prevent nicks to the inner conductors. Durable, high impact plastic housing is molded in yellow to make it easy to locate.
-- Professional Electrician's Scissors --
Designed for use in electrical, telephone and datacom service applications. The ergonomically designed large ring provides more power while reducing fatigue and wrist strain. Designed to comfortably fit in the power portion of the palm producing a cleaner, quicker cut with less effort. Bottom blade has serrated teeth the full length of the cutting edge to grip the cable/wire. Thru hardened (RC59).
-- Zippered Tool Case --
Platinum Tools has been selling kits using this case for years. Why not offer you the case by itself. Kit together your tools by job type. Have some favorite tools you'd prefer keeping separate from everything else Use this case to protect them for years to come!
Platinum Tools Termination Kit Features
- EXO Crimp Frame with EXO-EX Die Features:
- Single cycle crimp and flush trim
- EXO Die is easily interchangeable
- Reversible EXO Die for ambidextrous operation
- Connectors lock into tool for correct positioning during crimp
- Push button lock for easy storage
- Ergonomic comfort grip TPR handles
- Includes EXO-EX Die for crimping ezEX44 and ezEX48 connectors
- Terminates larger cables and conducts Cat6 and Cat6A
- Cat 5/6 Cable Jacket Stripper Features:
- Removes the cable jacket on Cat5/5e/6 cables
- Accepts cable diameters from 0.18" to 0.25" (4.5mm - 6.3mm)
- No adjustments required; easily switch from one cable type or insulation to another
- Does not nick inner conductors
- Recommended for PVC cable jackets
- Long life blade
- Professional Electrician's Scissors Features:
- Cuts stranded wire to 12 AWG.
- Cuts solid wire to 16 AWG.
- Trims Kevlar in fiber optic cable.
- Strips 19 to 23 AWG wire.
- Serrated edges on back of blades for cleaning wire and binding posts.
- Made in the USA
- Zippered Tool Case Features:
- Made with durable heavy duty nylon
- Red stitching with Platinum Tools badge
- Center zippered compartment
