Platinum Tools EXO Deluxe Termination and Test Kit

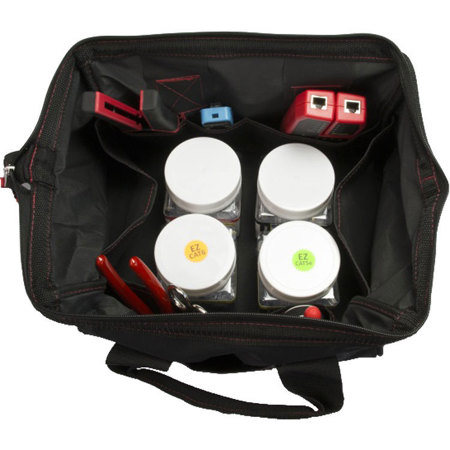

The EXO Deluxe Termination & Test Kit is the perfect one stop cable preparation, termination and test kit. This kit includes all the termination, preparation and test tools needed to properly terminate EZ-RJ45, ezEX44 and ezEX48 connectors. With this kit, you will be able to terminate various cable sizes and conductor diameters with precision and test for proper termination. All tools and connectors come neatly organized in the Platinum Tools heavy-duty nylon Big Mouth Tool Bag.

-- EXO Crimp Frame with EXO-EX Die --
The patented EXO Crimp Frame with EXO-EX Die was developed to terminate larger cables and conductors (typically Cat6/6A). EXO Crimp Frame with EXO-EX Die is designed for the ezEX-RJ45 connectors. The ezEX-RJ45 connectors are an RJ45 pass through connector, developed for larger cables and conductors. Integrated Hi-Lo stagger for improved performance, one piece design pass through system. The EXO Crimp Frame has a patented push button lock, ergonomic TPR handles and works with the EZ-RJ45 Die for terminating EZ-RJ45 connectors.

-- EZ-RJ45 Die for EXO Crimp Frame --
The patented EZ-RJ45 Die is used with the EXO Crimp Frame to terminate EZ-RJ45 connectors. The EZ-RJ45 Die is interchangeable and reversible when used with EXO Crimp Frame. Designed for the original pass through EZ-RJ45 connectors which have been a standard in this industry for many years.

-- LANSeeker - Cable Tester and RJ45 Tester --
The LANSeeker is a fast, rugged cable tester and tone generator in one unit. It displays cable test results using LED indicators on the main and remote unit. An easy-to-use professional grade tool, the LANSeeker is a must have for residential and commercial cable installers. When the unit senses a connection between the main and remote unit, the battery-saving auto-on feature initiates test results within 2 seconds. The tester automatically powers off within 5 seconds of the cable being disconnected. LANSeeker tests for shorts, opens, miswires, reversals, and split pairs and can display connection and fault information on a pair-by-pair basis. It also generates audio tones for use with tone tracers on all pairs.

-- CCS-6 Cable Cutter --
Platinum Tools introduces the optimal cutting solution for today's VDV (Voice, Data, Video) & security installers. Finally, a compact cable cutter designed to cut coax cable with steel center conductor! Easily cuts through copper and aluminum cable too.

Cyclops 2 Cable Jacket StripperThe Cyclops 2 takes the guesswork out of removing the cable jackets from many types of twisted pair, multicore and fiber optic cables. The tool self adjusts to automatically cut PVC, plenum and others without damaging the braids, foils or conductors. One piece design, ready to use right out of the package. Typical applications are in data, voice, video, audio, security and others.

ApplicationStripping tool for removing cable jackets from twisted pair cable (UTP/STP), single & multi-core cables and fiber optic cable.

• Accepts cable diameters to .43" (11 mm) diameter.
• Self adjusting.

Scissor-Run Electrician's Scissor --
An original favorite, this smooth cutting action, scissor-run design is excellent for cutting Kevlar, foil and wire. Cuts solid wire up to 16 AWG and stranded up to 12 AWG. Strips 19 and 23 AWG.

Application
• Telcom
• Datacom
• Security
• Electrical

-- 5" Side Cutting Pliers --
The 5" Side Cutting Pliers are perfectly suited for field or production line work. Use for cutting copper wire or trimming leads with the full flush cutting blades. The tool is manufactured from high carbon tool steel, precision ground and hardened for long life. Molded comfort grip handle. Rust resistance black oxide finish.

-- Big Mouth Tool Bag --
Durable Big Mouth Tool Bag is perfect for carrying your tools to the job site. The heavy duty construction means this bag will last for years to come!
