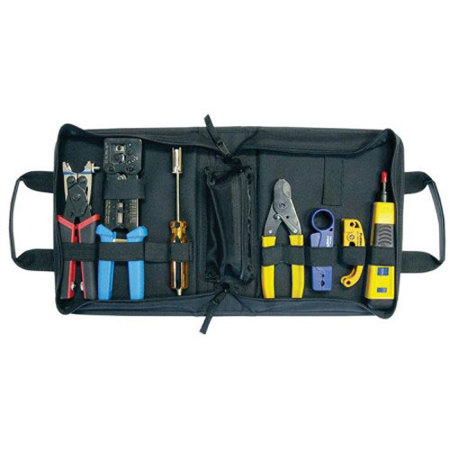

Platinum Tools PRO HD Twisted Pair & Coaxial Kit with Zip Case, Box

Kit includes all of the necessary tools for twisted pair and coaxial terminations. Features the patented EZ-RJ45 HD Crimp Tool and SealSmart Compression Crimp Tool. Cut, strip & terminate twisted pair & coaxial cables.

-- Coax & Round Wire Cable Cutter --
This durable, economically priced cutter is designed to cut solid and stranded wire to 8 AWG, multi-conductor and coaxial cable to 1/2" diameter. Features a curved, precision ground cutting blade that will not deform the conductors or dielectric you are cutting. Stamped from high carbon tool steel and heat treated for long life.

-- ProStrip 25R Cable Stripper --
The new Pro Strip 25R is a rugged 2 level coaxial cable stripper designed for the professional contractor. Quick change blade cartridges are factory pre-set for industry standard 1/4" cable preparation eliminating the need for tedious, time consuming blade depth adjustments. Stainless steel rollers provide smoother concentric, non-binding rotation on a wide range of cables for fast professional results. No adjustments required!

Application
RG 6 and RG 59 cable stripping port.

• RGB/Mini 59 cable stripping port for 23, 24 & 25 AWG center conductor cables
• 1/4" (6 mm) strip length

-- Cat 5/6 Cable Jacket Stripper --
This economical tool strips the cable jacket from Cat5/5e/6 twisted pair cables with professional results. Features a long life blade specifically designed to self-adjust to prevent nicks to the inner conductors. Durable, high impact plastic housing is molded in yellow to make it easy to locate.

-- SealSmart Compression Crimp Tool --
The SealSmart Compression Crimp Tool provides simple, fast and reliable terminations. The perfect solution for CATV, DSS, Security and Residential Structured wiring installations. Connector adapters are included for F, RCA & BNC SealSmart connectors and mount in handle for easy storage. Straight action mechanism provides 360 degree uniform compression. Crimp height is adjustable for use with similar style compression connectors.

-- EZ-RJPRO HD Crimp Tool --
The EZ-RJPRO HD Crimp Tool is designed for the professional installer providing a ratcheted, high leverage, ultra stable platform for consistent, repeatable terminations. This heavy duty tool is the perfect solution when working with high performance, larger OD cables that are tougher to terminate due to larger wire gauges, thicker, harder insulation on the conductors and pair separating splines. Not only will you overcome these connectivity obstacles but you can be assured that every termination will meet FCC specifications. Compatible with all EZ-RJ45 and EZ-RJ12/11 connectors as well as all standard modular plugs, except AMP.

Application
The EZ-RJPRO HD Crimp Tool uses the EZ-RJ45 'crimp & trim' system and is designed to handle larger dimensional size cables.

• EZ-RJ45 CAT5e connectors
• EZ-RJ45 Shielded CAT5e connectors
• EZ-RJ45 CAT6 connectors
• EZ-RJ12/11 connectors and all other RJ45, RJ12 and RJ11 modular plug connectors except AMP

-- Pro Punchdown Tool --
The new Pro Series Punchdown Tool combines a rugged design with ergonomic function. Manufactured to provide precise, repeatable and reliable terminations every time for a very long time! Precision controlled impact force settings for optimum termination of sensitive circuitry found in Cat 5e and Cat 6 cross connects.

Application
• Used to terminate and trim wires in 66, 110 krone and BIX cross connect blocks
• Used to terminate and trim wires in 110 and 630 style wall jack modules

-- F Connector Assembly, Removal Tool --
This dual function tool features a 7/16 inch hex socket at one end and 3/8-32 thread at the other end. The hex socket slides over cable and rear of the connector for easy mating and un-mating of hard to grasp F connectors. The threaded end provides a stable surface during cable insertion, eliminating the danger of stab wounds from the center conductor. Rugged extruded plastic handle. Long life chrome finish.
