About Platinum Tools Termination Kit
This system is the right solution for terminating larger cables like Cat6E, Cat6A, Cat7 and over-sized Cat5e/6 industrial Ethernet cables for data, audio and video applications.

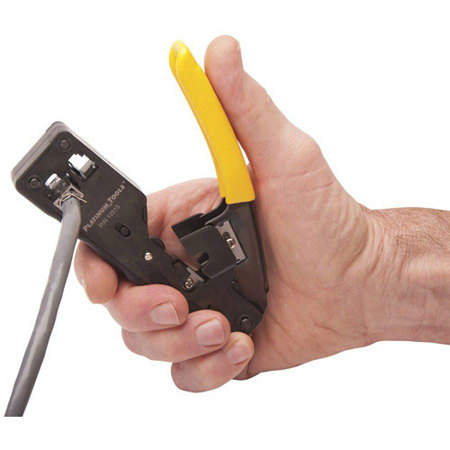

-- Tele-TitanXg CAT6A/10Gig Crimp Tool --
Streaming media whether data, audio or video, is on a sharp rise and users are demanding more bandwidth. That means bigger cable, commonly referred to as CAT6E, CAT6A and CAT7, and usually shielded. For maximum performance, connector and crimp tool choice is critical. Our CAT6A/10Gig termination system not only meets, but exceeds these requirements.
-- Cyclops 2 Cable Jacket Stripper --
The Cyclops 2 takes the guesswork out of removing the cable jackets from many types of twisted pair, multicore and fiber optic cables. The tool self adjusts to automatically cut PVC, plenum and others without damaging the braids, foils or conductors. One piece design, ready to use right out of the package. Typical applications are in data, voice, video, audio, security and others.
Application
Stripping tool for removing cable jackets from twisted pair cable (UTP/STP), single & multi-core cables and fiber optic cable.
• Accepts cable diameters to 0.43" (11 mm) diameter
• Self adjusting
-- External Ground Crimp Tool --
Perform 360 degree crimps on the external ground tab of shielded RJ45 connectors. Tool design allows the installer to perform a concentric termination with full control, preventing over/under crimping the external ground tab.
Application
Crimps the external ground tab on shielded RJ45 connectors for the following cable types:
• Cat5e
• Cat6
• Cat6E
• Cat6A
• Cat7
-- RJ45 CAT6A 10Gig Shielded Connector with Liner, Solid --
Streaming media whether data, audio or video, is on a sharp rise and users are demanding more bandwidth. That means bigger cable, commonly referred to as CAT6e, CAT6A and CAT7, and usually shielded. For maximum performance, connector and crimp tool choice is critical. Our CAT6A/10Gig termination system not only meets, but exceeds these requirements.
Platinum Tools Termination Kit Features
- Tele-TitanXg CAT6A/10Gig Crimp Tool Features:
- Specifically made for terminating, P/N 106190 CAT6A/10Gig connectors
- Straight action vertical crimp force
- Minimal hand force for a perfect crimp
- Compact and rugged
- Terminates to industry specified crimp heights
- Stays securely closed with gun-style lock
- Built-in cable stripper for round wire and flat satin
- Easily control the blade depth when stripping
- Built-in cable cutter
- Cyclops 2 Cable Jacket Stripper Features:
- Accepts cable diameters from 0.10" to 0.43" (2.5mm - 11mm)
- Removes cable jackets from twisted pair UTP/STP cables
- Removes cable jackets from multi-core cable (shielded & un-shielded)
- Removes cable jackets from fiber optic cable
- Self-adjusting
- External Ground Crimp Tool Features:
- Non-ratcheted design
- Dual cavity covers wide range of cable ODs
- Spring loaded
- Works on most external ground tabs
- All steel frame
- Black oxide finish
- RJ45 CAT6A 10Gig Shielded Connector with Liner, Solid Features:
- Max cable OD: 8.5mm/0.335"
- Max conductor OD: 1.35mm/0.053"
- Individual conductor OD range: 0.042" - 0.053" (1.07mm-1.35mm)
- Wire gauge range (AWG) 24-22
- Designed for both shielded and unshielded cabling
- 50micro Gold Contacts
- UL and RoHS compliant
