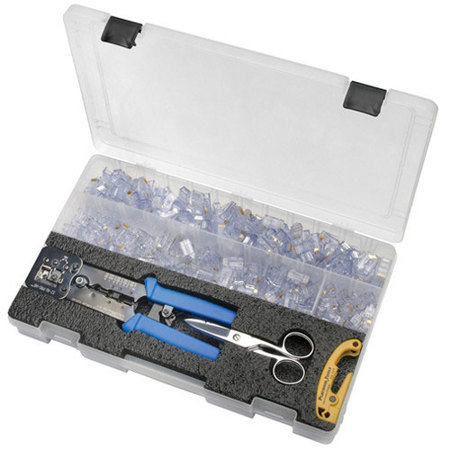

About Platinum Tools EZ-RJPRO Termination Pod
-- EZ-RJPRO HD Crimp Tool --
The EZ-RJPRO HD Crimp Tool is designed for the professional installer providing a ratcheted, high leverage, ultra stable platform for consistent, repeatable terminations. This heavy duty tool is the perfect solution when working with high performance, larger OD cables that are tougher to terminate due to larger wire gauges, thicker, harder insulation on the conductors and pair separating splines. Not only will you overcome these connectivity obstacles but you can be assured that every termination will meet FCC specifications. Compatible with all EZ-RJ45 and EZ-RJ12/11 connectors as well as all standard modular plugs, except AMP.
Application
The EZ-RJPRO HD Crimp Tool uses the EZ-RJ45 'crimp & trim' system and is designed to handle larger dimensional size cables.
• EZ-RJ45 CAT5e connectors
• EZ-RJ45 Shielded CAT5e connectors
• EZ-RJ45 CAT6 connectors
• EZ-RJ12/11 connectors and all other RJ45, RJ12 and RJ11 modular plug connectors except AMP
-- Cat 5/6 Cable Jacket Stripper --
This economical tool strips the cable jacket from Cat5/5e/6 twisted pair cables with professional results. Features a long life blade specifically designed to self-adjust to prevent nicks to the inner conductors. Durable, high impact plastic housing is molded in yellow to make it easy to locate.
-- Scissor-Run Electrician's Scissors 5" --
An original favorite, this smooth cutting action, scissor-run design is excellent for cutting Kevlar, foil and wire. Cuts solid wire up to 16 AWG and stranded up to 12 AWG. Strips 19 and 23 AWG.
-- EZ-RJ45 CAT5/5e/6 Connectors --
The Original EZ-RJ45 CAT5/5e/6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!
Crimp with one of the Platinum Tools EZ-RJ45 Crimp Tools. (Part Numbers 100062, 100054 or 100004)
-- EZ-RJ12/11 Connectors --
The new, patented EZ-RJ12/11 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order prior to termination. Use the EZ-RJPRO HD Crimp Tool (P/N 100054) for single cycle crimping and trimming of the excess wire. FCC compliant and UL rated. Made in the USA. Patented.
Platinum Tools EZ-RJPRO Termination Pod Features
- EZ-RJPRO HD Crimp Tool Features:
- Zero flex frame prevents torque loss during the crimping cycle
- Tool steel die head assembly provides 360 degree of connector support during crimp
- Clean, ultra flush trim on the EZ-RJ45 extended conductors
- Expanded surface area on contact drivers delivers full, uniform crimp force
- Built-in cutter and stripper for flat and round cable
- Full surface to surface contact delivers uniform crimp force
- Laser marked with wiring guide for proper wire sequence
- Cat 5/6 Cable Jacket Stripper Features:
- Removes the cable jacket on Cat5/5e/6 cables
- Accepts cable diameters from 0.18" to 0.25" (4.5mm - 6.3mm)
- No adjustments required; easily switch from one cable type or insulation to another
- Does not nick inner conductors
- Recommended for PVC cable jackets
- Long life blade
- Scissor-Run Electrician's Scissors 5" Features:
- Full serrated bottom blade for non-slip cutting
- Scraper and file on backside of blades
- Inside blade is chrome plated for rust protection
- Easily re-sharpens & holds cutting edge
- Stripping notches for 19 & 23 AWG wire
- Screw permits easy adjustment
- EZ-RJ45 CAT5/5e/6 Connectors Features:
- Cat5/5e Max Cable Outer Diameter: 0.275" (6.98mm)
- Cat6 Max Cable Outer Diameter: 0.275" (6.98mm)
- Max Insulation Diameter (Conductors): 0.040" (1.016mm)
- Meets ANSI/EIA/TIA/TAA specifications
- Solid or Stranded, 24 - 23 AWG
- UL Listed and RoHS/FCC compliant
- 50 micron gold plated contacts
- Color: Clear/Transparent
- Made in USA
- EZ-RJ12/11 Connectors Features:
- For use in telephone & security installations
- Faster, easier terminations with reduced scrap
- For specialized telephone installations & communications equipment
- For applications requiring custom/specific wire configurations
- Works on solid or stranded wire
- Designed for 6, 4, and 2 conductor applications
