Platinum Tools Premier Series RG59 CCTV Connectivity Kit, Box
SKU: PT90202
This item is no longer available.
Share:
Overview
Compare
Protection
Q&A

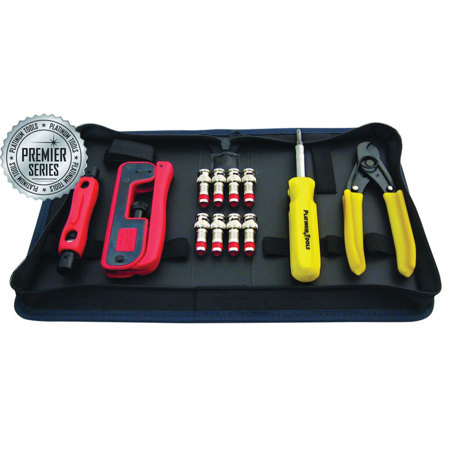

About Platinum Tools Premier Connectivity Kit
Platinum Tools Premier Series Kits deliver a practical solution and offer the installer a balanced mix of popular products that are known to withstand even the toughest jobs. Time and time again.
-- Coax & Round Wire Cable Cutter --
This durable, economically priced cutter is designed to cut solid and stranded wire to 8 AWG, multi-conductor and coaxial cable to 1/2" diameter. Features a curved, precision ground cutting blade that will not deform the conductors or dielectric you are cutting. Stamped from high carbon tool steel and heat treated for long life.
-- Double-Ended Coax Stripper --
Quickly and easily strips a broad range of coax cables in a single step without any adjustments. The blades are designed to produce the standard 1/4" braid, 2-level strip for compression connectors.
-- SealSmart II Compression Tool --
The SealSmart II Compression Tool utilizes a universal head design that will work with all standard compression connectors available on the market, including right angle and RGB mini.
-- 6-in-1 Screwdriver --
This versatile tool is a must have for any tool belt. No more searching for the right tool! Double-ended reversible bits with ball detent retention. S2 alloy steel bits for long life. Molded, ergonomic high impact plastic handle.
Bits Included:
• Phillips #1, 2
• Slotted #5, 7
• Nut Drivers 1/4
-- BNC-Type Nickel SealSmart Coaxial Compression Connectors --
Platinum Tools' SealSmart Compression Connectors provide simple, fast and reliable terminations. The perfect solution for CATV, DSS, Security, Home Theater and Residential Structured wiring installations.
Application
Use on RG59, RG6 and RG6 Quad shield cables. Connectors are color coded for cable type.
Platinum Tools Premier Connectivity Kit Features
- Coax and Round Wire Cable Cutter Features:
- Cuts solid and stranded wire to 8 AWG
- Cuts multi-conductor cable to 1/2
- Cuts coaxial cables without deforming the dielectric
- Double-Ended Coax Stripper Features:
- Works with RG-7/11/213/8 and RG-59/6/6 Quad cable types
- Quickly and easily remove the cable jacket and inner conductors in a single step
- Control the cutting depth by the number of rotations made around the cable
- Preset, no adjustments required
- Compact, lightweight and simple operation
- SealSmart II Compression Tool Features:
- Crimps all standard F, RCA, BNC, and right-angle compression style connectors
- Compact and light weight design
- Quickly adjust crimp height
- Works with RG59, RG6, RG6Q, and mini RGB coax cables
- Lock washer holds head in place once adjusted to proper crimp stroke
- BNC-Type Nickel SealSmart Coaxial Compression Connectors Features:
- Molded in gasket provides a weather tight seal at cable entry
- Single crimp termination with captive center contact design
- Universal crimp tool terminates all three SealSmart Connector designs
