Platinum Tools Premier Series DATA Connectivity Kit, Box

SKU: PT90203

This item is no longer available.

Overview
Compare
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

About Platinum Tools Premier Connectivity Kit

Platinum Tools Premier Series Kits deliver a practical solution and offer the installer a balanced mix of popular products that are known to withstand even the toughest jobs, time and time again.


-- Coax & Round Wire Cable Cutter --
This durable, economically priced cutter is designed to cut solid and stranded wire to 8 AWG, multi-conductor and coaxial cable to 1/2" diameter. Features a curved, precision ground cutting blade that will not deform the conductors or dielectric you are cutting. Stamped from high carbon tool steel and heat treated for long life.


-- Cat 5/6 Cable Jacket Stripper --
This economical tool strips the cable jacket from Cat5/5e/6 twisted pair cables with professional results. Features a long life blade specifically designed to self-adjust to prevent nicks to the inner conductors. Durable, high impact plastic housing is molded in yellow to make it easy to locate.


-- All-in-One Modular Plug Crimp Tool --
The new All-in-One Modular Plug Crimp Tool combines a rugged design with multipurpose functions. The primary tool for all telecom and network installers working with RJ45, RJ11, RJ12 & RJ22(Handset) modular plugs. Three crimp cavities for 4, 6 & 8 position modular plugs. Built in cutter and two strippers for both round and flat cable. Manufactured to provide precise, repeatable and reliable terminations every time for a very long time!

Application
For use with the following modular plug connectors, stranded & solid.

• RJ45 Cat 3/5/5e/6 (8X8)
• RJ12, 6 position (6X6)
• RJ11, 4 position (6X4)
• RJ11, 2 position (6X2)
• RJ22, 4 position (4X4)


-- 6-in-1 Screwdriver --
This versatile tool is a must have for any tool belt. No more searching for the right tool! Double-ended reversible bits with ball detent retention. S2 alloy steel bits for long life. Molded, ergonomic high impact plastic handle.

Bits Included:

• Phillips #1, 2
• Slotted #5, 7
• Nut Drivers 1/4


-- Standard CAT5e RJ45 Modular Plugs --
Traditional style modular plugs for use in terminating cables in both telephone and data applications. Manufactured to comply with FCC 68 guidelines and are UL listed.

Application
• Telecommunications
• Datacommunications

Platinum Tools Premier Connectivity Kit Features

  • Coax & Round Wire Cable Cutter Features:
  • Cuts solid and stranded wire to 8 AWG
  • Cuts multi-conductor cable to 1/2
  • Cuts coaxial cables without deforming the dielectric
  • Cat 5/6 Cable Jacket Stripper Features:
  • Removes the cable jacket on Cat5/5e/6 cables
  • Accepts cable diameters from 0.18" to 0.25" (4.5mm - 6.3mm)
  • No adjustments required; easily switch from one cable type or insulation to another
  • Does not nick inner conductors
  • Recommended for PVC cable jackets
  • Long life blade
  • All-in-One Modular Plug Crimp Tool Features:
  • Three separate crimp cavities
  • Ratchet mechanism with quick release assures optimum termination
  • Round and Flat (silver satin) cable stripper
  • Cable cutter
  • All steel frame with rust resistant black oxide finish and Rugged PVC handles
  • Standard CAT5e RJ45 Modular Plugs Features:
  • Multiple position & contact configurationstyles available
  • Round & flat cable versions
  • 2 prong stranded conductor contact
  • 3 prong solid conductor contact
  • Gold plated contacts provide reliable performance and long life: 50micro & 15micro gold
  • Complies with FCC 68 guidelines
  • UL listed
  • Flammability rating: UL94V-2
  • Materials: Polycarbonate
  • Contact material: Phosphor bronze

Key Features

  • Coax & Round Wire Cable Cutter Highlights:
  • Cuts solid and stranded wire to 8 AWG
  • Cat 5/6 Cable Jacket Stripper Highlights:
  • Removes the cable jacket on Cat5/5e/6 cables
  • All-in-One Modular Plug Crimp Tool Highlights:
  • Three separate crimp cavities

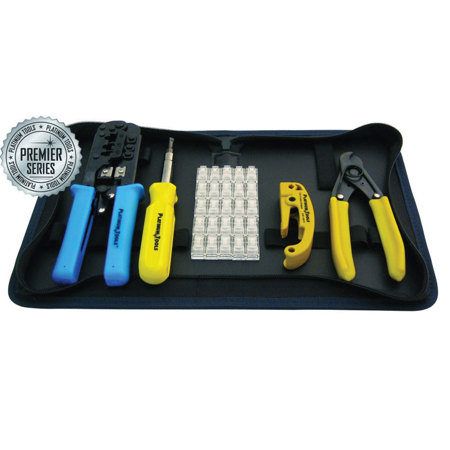

What's in the box:

  • Coax and Round Wire Cable Cutter
  • Cat5e/6 Cable Jacket Stripper
  • All-In-One Modular Plug Crimp Tool (Ratcheted)
  • 6-In-1 Screwdriver
  • 25x RJ45-8P8C Cat5e Modular Plug
  • Nylon Zippered Case
  • Platinum Tools 1 Year Warranty
