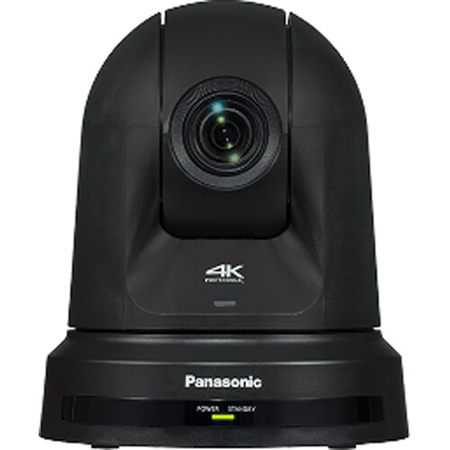

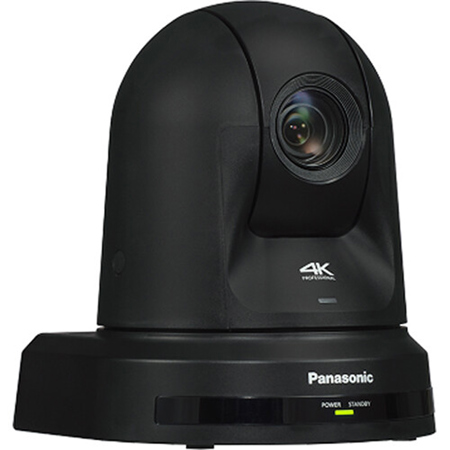

Panasonic AW-UE40 4K30p HDMI Professional 24x PTZ Camera, Black

SKU: PTAWUE40KPJ MFR: AW-UE40KPJ
Earn VIP Reward Points

Key Features

  • Capture stunning 4K video with the Panasonic PTZ camera's exceptional image quality.
  • Achieve incredible close-ups using the 24x optical zoom, perfect for detailed shots.
  • Easily control the PTZ camera remotely, making it ideal for live streaming events.
  • Enjoy versatile connectivity with HDMI and USB, ensuring seamless integration.
  • Experience smooth pan and tilt operations for professional video conferencing setups.
  • Benefit from superb low-light performance, capturing clear video in any environment.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : for cat 6 with this unit must it be shielded cat 6?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic AW-UE40 Specifications

  • Color

    Black

  • Lens

    Motorized Optical 24x zoom, F1.8 to F4.0
    [f=4.12 mm (5/32") to 98.9mm (3-29/32"), 35 mm (1-3/8") equivalent: 25.0 mm (31/32") to 600.0 mm (23-5/8")]

  • Minimum Illumination

    3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)

  • Zoom

    Optical zoom: 24x
    i.Zoom UHD 28x, FHD 36x
    Digital extender zoom: 1.4 x , 2 x

  • Horizontal Resolution

    UHD: 1,500 Typ (Center area)
    FHD: 1,000 Typ (Center area)

  • Gain Selection

    Auto, 0 dB to 36 dB (Super Gain function equipped : 37 dB to 42 dB)

  • White Balance

    ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.)
    AWB : AWB-A / AWB-B
    VAR (selectable between 2000 K and 15000 K by designating a value)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Current consumption

    1.8 A (Supplied AC adapter), 0.6 A (PoE+ power supply)

  • Power Requirements

    12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)

  • Color separation optical system

    1MOS

  • Focus

    Switching between auto and manual

  • Focus Distance

    Entire zooming range: 3.9' (1200mm)
    Wide end: 0.33' (100mm)

  • Gamma

    HD / Normal / Cinema1 / Cinema2 / Still Like

  • Input Connector

    DC 12 V IN

  • Pan/Tilt Operation Speed

    Speed range: 0.08 Degree /s to 60 Degree /s (Normal mode)
    3 speed modes installed
    Normal: 60 Degree /s, Fast 1: 90 Degree /s, Fast 2: 180 Degree /s

  • Quietness

    NC25 or less

  • Tilting Range

    -30 Degree to 90 Degree

  • Imaging Sensors

    1x 1/2.5-type 4K MOS

  • Frame Mix

    Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB

  • Chroma Amount Variability

    OFF, -99 % to 99 %

  • Ambient Operating Humidity

    20 % to 90 % (no condensation)

  • Finish

    Black

  • Image Resolution

    1920x1080, 1280x720, 640x360, 320x180

  • Panning range

    +/-175 Degree

  • Installation Method

    Stand-alone (Desktop) or suspended (Hanging)

  • Controller Supported

    AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000, AK-HRP1005, AK-HRP1015, AK-HRP250

  • Ambient Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Conversion Lens

    Not supported

  • Angle of View Range

    Horizontal angle of view: 74.1 Degree (wide) to 3.3 Degree (tele)
    Vertical angle of view: 46.0 Degree (wide) to 1.9 Degree (tele)
    Diagonal angle of view: 81.8 Degree (wide) to 3.8 Degree (tele)

  • Image Transmission setting (JPEG)

    Frame rate: Maximum 30fps
    Image quality (Fine / Normal)

  • Image Transmission Setting (H.264)

    Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
    Transmission Priority: Constant bit rate, Frame rate, Best effort
    Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps
    Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps

  • Image Transmission Setting (H.265)

    Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
    Transmission Priority: Constant bit rate, Frame rate, Best effort
    Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps
    Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps

  • Tally LED display color

    Red / Green

  • PoE+

    IEEE802.3at compliant : DC42 to 57 V (Camera Input) (Software authentication (LLDP) is supported)

  • Mic/line input

    AAC compatibility (compatible with IP only)
    Diameter: 3.5 mm stereo mini jack
    During MIC input
    Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
    Supply voltage: 2.5 V +/-0.5 V (plug-in power compatible)
    Input impedance: Approx. 2 k Ohm (when plug-in power is turned ON), Approx. 20 k Ohm (when plug-in power is turned OFF)

  • Mic/line input (Contd.)

    During LINE input
    Input level: -10 dBV
    Input impedance: Approx. 3 k Ohm
    Input volume variable range: -36 dB to 12 dB (3 dB step)
    Embedded audio output level: -12 dBFS
    Sampling frequency: 48 kHz

  • IP connecting cable

    If you have a PoE+ ethernet hub
    LAN cable (category 5e or above, straight cable) Max 328' (100m)
    If you don't have a PoE+ ethernet hub
    LAN cable (category 5e or above, straight cable) Max 328' (100m)

  • AW protocol connecting cable

    LAN cable (category 5e or above, straight cable) Max 3280' (1000m)

  • Windows

    Windows 10
    Windows Internet Explorer 11 (32 bit / 64 bit)
    Microsoft Edge
    Google Chrome

  • Mac

    Mac OS v11.0.1 / Safari 14.01
    Mac OS v11.0.1 / Google Chrome
    Mac OS v10.15 / Google Chrome
    Mac OS v10.14 / Google Chrome

  • Android

    Android OS
    Google Chrome

  • iPhone / iPad

    iOS
    Safari
    iPadOS

  • Image Stabilization

    OIS 2-axis
    MENU switching: Select between Off/O.I.S.

  • Supported OS & web browsers

    9

  • F-Number Display

    Displayed on the AW-RP150GJ and AW-RP60GJ sides

  • Menu Display on IP Video

    Supported

  • Power LED

    ON/OFF control

  • Tripod Screw Penetration Measures

    Possible

  • Pan/Tilt Mechanical Method

    New Direct Drive System

  • Privacy Mode

    The lens surface faces backward when standing by (ON/OFF)
    Default is OFF

  • Dimensions (W x H x D)

    6.3 x 7.6 x 6.5" (160 x 192.1 x 166mm) (Excluding protrusions, cable cover, ceiling mounting bracket)

  • Weight

    Approx. Excluding ceiling mounting bracket: 3.97 lbs (1.8kg)
    Approx. Including ceiling mounting bracket: 4.51 lbs (2.05kg)

  • UPC Code

    885170388215

About Panasonic AW-UE40

Become a professional in the world of video conferencing and live streaming with the advanced AW-UE40 4K30p HDMI Professional 24x PTZ Camera. This high-tech device is designed to seamlessly blend into any environment, offering quiet operation and sophisticated features that make it an ideal choice for any video shooting location or condition.

The AW-UE40 is more than just a camera; it's an innovative solution for capturing stable, high-resolution images. With its 4K UHD resolution, you can expect crystal clear and detailed visuals that will enhance the quality of your online video streaming. Its wide-angle lens and high-magnification zoom function allow you to capture the ambiance of classrooms, halls, and podiums, ensuring that every detail is clearly visible.

This professional PTZ camera is equipped with Panasonic AW-SF100/AW-SF200 Auto Tracking Software, enabling the camera to follow and capture presenters or teachers as they move around the podium. This feature ensures realistic scenes are recorded at all times, without the need for detailed camera operation.

The AW-UE40 also supports SRT, a next-generation video transport protocol that ensures secure and stable streaming, even in unstable network environments. This reduces the risk of communication trouble and information leakage, making it a safe choice for any video content.

With the ability to upgrade to NDI|HX version 2, the AW-UE40 can transmit high-quality video via IP, ensuring smooth playback of high-image-quality video. This feature allows for a flexible video production flow at the shooting site, with the video source being accessible from any devices on the same network.

The AW-UE40 is easy to install and operate, with a single LAN cable transmitting video, audio, and control signals, as well as the power supply. This not only minimizes the risk of wiring trouble but also reduces the time and effort for setting up and removing the equipment.

Whether you're using it for online classes, seminars, or professional meetings, the AW-UE40 4K30p HDMI Professional 24x PTZ Camera is a versatile and reliable choice that delivers superior image quality and advanced features.

Panasonic AW-UE40 Features

  • 4K 25/30p and 24x Optical Zoom
  • New Direct Drive System for improved responsiveness and quietness
  • IT Certifications
  • Supports NDI|HX version 2 and SRT protocol
  • Excellent system flexibility to achieve smart wiring and smooth operation

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning 4K video with the Panasonic PTZ camera's exceptional image quality.
  • Achieve incredible close-ups using the 24x optical zoom, perfect for detailed shots.
  • Easily control the PTZ camera remotely, making it ideal for live streaming events.
  • Enjoy versatile connectivity with HDMI and USB, ensuring seamless integration.
  • Experience smooth pan and tilt operations for professional video conferencing setups.
  • Benefit from superb low-light performance, capturing clear video in any environment.

What's in the box:

  • Panasonic AW-UE40 4K30p HDMI Professional 24x PTZ Camera (Black)
  • Power Supply
  • Panasonic 1 Year Limited Warranty
