PTZOptics ePTZ ZCAM: Picture 1 thumbnail
PTZOptics 4K EPTZ ZCam
1 video
PTZOptics 8.51MP Full HD 3G-SDI Indoor ePTZ ZCam Box Camera, White
See all PTZOptics items

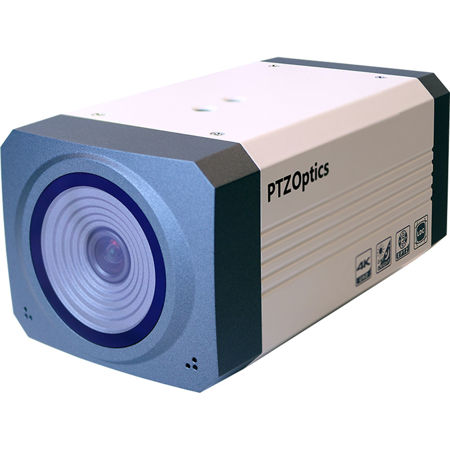

PTZOptics 8.51MP Full HD 3G-SDI Indoor ePTZ ZCam Box Camera with Dual SDI Output, White

SKU: PTEPTZZCAMG2
(1)

This item is no longer available.

Recommended Alternatives

PTZOptics NDI|HX ZCam Box Camera: Picture 1 regular

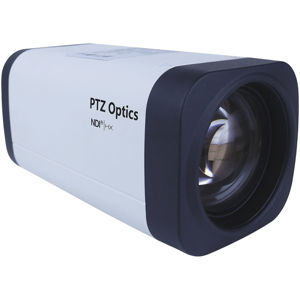

PTZOptics 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera, 12x Optical Zoom, White
$1,209.00
PTZOptics NDI|HX ZCam Box Camera: Picture 1 regular

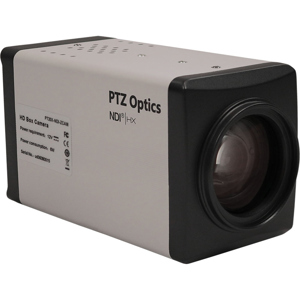

PTZOptics 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera, 20x Optical Zoom, White
$1,319.00
PTZOptics 3G-SDI Box Camera: Picture 1 regular

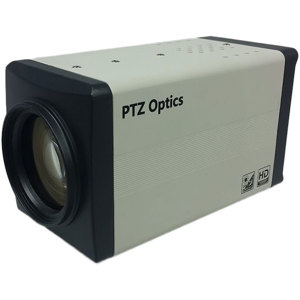

PTZOptics 2.07MP Full HD 3G-SDI Box Camera, 20x Optical Zoom, White
$879.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the benefit of having a 4K sensor in the 8.51MP Full HD 3G-SDI Indoor ePTZ ZCam Box Camera?

A 4K sensor allows you to capture zoomed-in views while maintaining the high-quality resolution of 1080p and 720p. It also enables digital ePTZ functionality, letting you determine the maximum zoom level that suits your project, thereby optimizing your 4K image output.

What does 'Dual SDI outputs' mean for this camera?

Dual SDI outputs mean that the camera can produce two separate video feeds at the same time. This allows for seamless cutting between wide and tight camera views from the same camera, adding a dynamic element to your video production.

What is the purpose of the iOS/Android Control App?

The iOS/Android Control App allows you to remotely control and manage the camera. This includes adjusting settings, controlling the pan, tilt, and zoom, and viewing the camera feed from your smartphone or tablet.

What does 'Power Over Ethernet' mean?

Power Over Ethernet (PoE) is a technology that allows network cables to carry electrical power. For devices like this camera, PoE means you only need one cable for both data connection and electrical power, simplifying installation.

Shopper : Why Did You Choose This?MARK M : Seems to be a good single camera option to cover a small to medium space. Good image quality, easy to set up and control over IP link.

Reviews about this item

Review Summary

2022-02-17T17:38:32

Rated 5 out of 5

Amazing little camera

Using these for recording my band. Best if you start with SDI first and go to IP. Watch the youtube videos for undocumented features. Getting all the software bits working is a bit of a chore the first time. The camera itself has exceeded expectations in every regard, with the eptz functionality quite useful in context. It's early days, but so far a happy buyer.

Charles H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

PTZOptics ePTZ ZCAM Specifications

  • Video System

    1080p-30/25, 720p-30/25

  • Sensor

    Panasonic 1/2.5", CMOS, Effective Pixels: 8.51M

  • Scanning Mode

    Progressive

  • Lens

    F=2.5mm

  • Minimal Illumination

    0.5 Lux (@F1.8, AGC ON)

  • Shutter

    1/30s - 1/10000s

  • White Balance

    Auto, Indoor, Outdoor, One-Push, Manual, VAR

  • Backlight Compensation

    Support

  • Digital Noise Reduction

    2D & 3D Digital Noise Reduction

  • Video

    S/N >=55dB

  • Horizontal Angle of View

    104 Degree

  • Vertical Angle of View

    72 Degree

  • Ceiling Installation

    Yes

  • Ceiling Installation

    Yes

  • Number of Presets

    255

  • Preset Accuracy

    0.1 Degree

  • Video coding standards

    H.264, H.265, MJPEG

  • Video Freeze

    Yes

  • Face Detection

    Via Future Firmware Update

  • HD Output

    2x SDI (3G-SDI), BNC female
    1x RJ45 IP 10/100/1000 Ethernet Port

  • Network Interface and Output

    1x RJ45: 10M/100M/1000M Adaptive Ethernet port

  • Audio Input

    1x 3 pin phoenix port audio interface, LINE IN (embedded on IP Stream only)

  • Control Input / Output

    1x RS-485: 2pin phoenix port, Max Distance: 1500m, Protocols: VISCA/Pelco-D/Pelco-P

  • Video Compression

    H.265 / H.264 / M-JPEG

  • Video Stream

    Three (3) IP Video Output Streams Available

  • First Stream Resolution

    1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360

  • Second Stream Resolution

    3840x2160@15, 1920x1080, 1280x720, 1024x576, 720x576 (50Hz), 720x480 (60Hz), 720x408, 640x360, 480x270, 320x240, 320x180

  • Third Stream Resolution

    1024x576, 960x540, 720x576 (50Hz), 720x480 (60Hz), 720x408, 640x360, 480x270, 320x240, 320x180

  • Video Bit Rate

    32Kbps - 102400Kbps

  • Bit Rate Type

    Variable Rate, Fixed Rate

  • Frame Rate

    50Hz: 1fps - 25fps, 60Hz: 1fps - 30fps

  • Audio Compression

    AAC

  • Audio Bit Rate

    48Kbps, 64Kbps, 96Kbps, 128Kbps

  • Support Protocols

    TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.

  • Power Connector

    JEITA type (DC IN 12V) or RJ45 via PoE 802.3af

  • Input Voltage

    12VDC (10.8 - 13.0V DC)

  • Current Consumption

    0.3A (Max)

  • Temperature

    Operating: 14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)
    Storage: -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C)

  • Power Consumption

    3.6W (Max)

  • Dimensions (W x H x D)

    2.8 x 2.4 x 5.6" (72 x 60 x 143mm)
    Including SDI: 6.3" (162mm)

  • Weight

    1.4 lbs (0.63kg)

  • UPC Code

    737993162247

About PTZOptics ePTZ ZCAM

FEATURED REVIEWS

Amazing little camera

By Charles H.

Using these for recording my band. Best if you start with SDI first and go to IP. Watch the youtube videos for undocumented features. Getting all the software bits working is a bit of a chore the first time. The camera itself has exceeded expectations in every regard, with the eptz functionality quite useful in context. It's early days, but so far a happy buyer.

Dual Output SDI ZCams
With the latest 4K video camera sensor built-in you can captured zoomed in views while maintaining 1080p and 720p quality levels. Determine the maximum zoom level that fits your project to get the most out of your 4K image. Zoom into your 4K image and create digital ePTZ presets that you can recall with the click of a button.

Digital PTZ inside 4K
EPTZ simulates pan, tilt and zoom operations inside of a large resolution pixel space. For example, a 4K image space allows for 3X lossless digital zoom with a 720p output. With two unique SDI outputs, your production can effectively cut between wide and tight camera views from the same camera.

Overview Video
The EPTZ ZCams are going to change the way you think about 4K and 1080p production environments using the power of electronic Pan, Tilt and Zoom.

Ultra HD Video
A large UHD CMOS image sensor and camera lens make close up details more realistic on video. Whether you are recording a video, live streaming, or video conferencing details will look crisper even when digitally enhanced with ePTZ.

Two Cameras In One
This short set up video shows you how quickly you can use this camera with two SDI video sources in your system. Learn how to connect and control this camera on your network.

Consider controlling this PTZ camera with the (IP Joystick or NDI studio monitor). Once connected to your LAN (Local Area Network) you can also control this camera with our free PTZ control applications for Mac and PC OR with a compatible video production software such as vMix, Wirecast, OBS (Open Broadcaster Software), NewTek Tricasters, MimoLive and more. You can also extend video and control of your PTZ camera wirelessly using the new WirelessCable.
• High Definition
• Power Over Ethernet
• H.264 & H.265
• Wide Angle Lens
• iOS/Android Control App

PTZOptics ePTZ ZCAM Features

  • Panasonic 1/2.5" HD CMOS Sensor
  • Full 1920x1080p HD Resolution up to 30 FPS
  • 104 Degree Horizontal Field of View
  • 2D & 3D noise reduction
  • Simultaneous Dual 3G-SDI & High Definition IP Output
  • Dual SDI output (Full view / EPTZ view)
  • H.264, H.265 & MJPEG IP streaming outputs
  • RTMP / RTMPS & RTSP
  • AAC Audio encoding over RTSP and RTMP / RTMPS
  • Dynamic / Static IP addressing (Hold D-Pad left for 5+ sec to toggle)
  • High performance in low light scenarios
  • RS-485 & VISCA over IP available for camera control
  • Four (4) Std 1/4-20 female threads for camera mounting
  • PoE 802.3af (Power over Ethernet) or 12VDC
  • 255 Presets

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Panasonic 1/2.5" HD CMOS Sensor
  • Full 1920x1080p HD Resolution up to 30 FPS
  • 104 Degree Horizontal Field of View
  • 2D & 3D noise reduction
  • Simultaneous Dual 3G-SDI & High Definition IP Output
  • Dual SDI output (Full view / EPTZ view)

What's in the box:

  • PTZOptics 8.51MP FHD 3G-SDI Indoor ePTZ ZCam Box Camera (White)
  • Power Adapter
  • User Manual
  • PTZOptics 3 Year Limited Warranty
