PTZOptics Producer Kit, Includes 20x-SDI Live Streaming Camera, Intel NUC Skull Canyon PC, Joystick, 'USB Capture SDI' Dongle and Shure Motiv MVi Mic Interface

The all new PTZ Producer Kits from PTZOptics are complete, turn-key, live streaming systems built around the groundbreaking Intel NUC Skull Canyon Micro-PC. These systems, available with 12X and 20X optical zoom 3G-DI cameras, finally make television quality video production affordable. With hundreds of potential video angles made possible with PTZ cameras and the included 3D PTZ Joystick, this system will make any venue your next live streaming destination.

• Systems built around the Intel NUC "Next Unit of Computing" Skull Canyon high performance PC
• Open Platform Windows 10 PC includes 6th generation i7 Processor, 32 GB of Ram, 256 GB SSD and 802.11ac Wi-Fi
• Works with all the latest live streaming and video production software applications
• 2nd Generation PTZOptics 3G-SDI Cameras provide hundreds of possible streaming angles
• 2nd Generation RS-232 Joystick provides seamless camera control switching and preset selections
• Kits include 'USB Capture SDI' Dongle, 100' of HD-SDI Cabling and 100' of RS232 Serial Control cabling for each camera

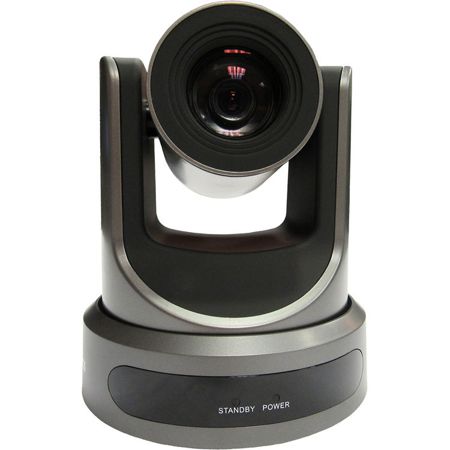

Broadcast & Conference Camera
The PTZ Optics 20X-SDI is a 1080p camera with 20X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI and IP Streaming (H.264, H.265 & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording or video conferencing applications.

• 60.7 degree wide-angle lens
• High performance in low illumination situations with Wide Dynamic Range
• Full 1920x1080p HD Resolutions up to 60 frames per second
• 2D and 3D noise reduction with our latest "low noise CMOS sensor"
• RS232 & RS485 (Serial) and IP (LAN/WAN) Control
• H.264, H.265 & MJPEG Streaming over RJ-45 LAN port
• HDMI, 3G-SDI, IP Streaming (All 3 Simultaneous)

Skull Canyon NUC
From editing images to rendering 4K video, the 6th generation Intel Core i7 processor with Intel Iris Pro Graphics gives you maximum performance for anything you create. Thunderbolt 3 technology connects you up to 3 4K displays and allows you to ramp your graphics performance with external graphics cards or transfer your data to and from an external drive at an incredible 40 Gbps. That's 2X the video bandwidth (3) and exactly what you need for working with large media files featuring high-resolution, vibrant visuals.

• 6th generation Intel Core i7-6770HQ processor (2.6 GHz up to 3.5 GHz Turbo, Quad Core 6MB cache, 45W TDP)
• Dual-channel DDR4 SODIMMs, 32GB maximum
• Intel Iris Pro graphics 580
• One Thunderbolt 3 port, One Display Port via USB-C
• Four total USB 3.0 ports with one SDXC slot
• Two M.2 slots with flexible support for a 42 or 80 mm SATA or PCIe SSD
• Intel Dual Band Wireless-AC 8260 and Bluetooth 4.2
• Consumer Infrared sensor on the front panel
• Support for user-replaceable 3rd party lids

Magewell 'USB Capture SDI' Dongle
Record or stream a 3G-SDI signal via USB 3.0 with the Magewell 'USB Capture SDI' Dongle. With its 3G-SDI input, this capture device will accept resolutions of up to 1920 x 1200 at 60p. If you need to stream or record at a certain resolution, the XI100 will internally up or down-covert the input signal to the set resolution. It can also perform frame-rate conversion and de-interlacing in real-time with its own hardware, taking the processing load off your computer's CPU.

• No drivers needed for Windows, Mac or Linux
• Automatically determines input video format and converts it to the specified output size and frame rate
• Automatically converts input audio formats to 48KHz PCM stereo Audio 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied

MVi digital audio interface
MVi digital audio interface offers content creators professional-quality audio recording in the studio and on the go. Take advantage of five onboard DSP recording presets to quickly dial in the right sound for your project or dive even deeper with the free ShurePlus MOTIV iOS app for enhanced recording, editing and sharing. A combination microphone/instrument input and zero-latency headphone connector housed in rugged, all-metal construction delivers great-sounding recordings.

• A flexible 24-bit/48kHz USB recording interface for your computer or mobile device
• Onboard DSP presets for speech, singing, flat, acoustic instrument and loud sources onboard
• Class A microphone preamp delivers clear sound and phantom power for studio condensers
• Integrated headphone output provides real-time, low-latency monitoring

3D Serial joystick controller
Easy pan, tilt & zoom controls for any RS-232, RS-422, RS-485 VISCA or Pelco protocol camera! Controls pan & tilt with variable speed. Use 3-dimensional joystick with "twist" for variable control of zoom.

• Durable Metal Housing
• VISCA, PELCO-P, PELCO-D
• RS232, RS422, RS485
• On Screen Display
• Variable Speed Pan, Tilt & Zoom Control
• Iris, Focus, Home, Backlight & Preset controls
• 4 Camera Quick Select keys
