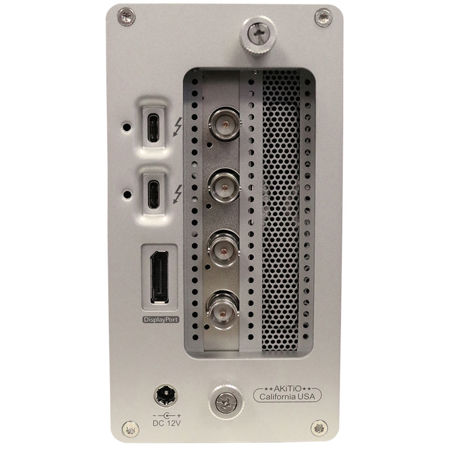

PTZOptics Producer+ Upgrade External PCIe Box

4x BNC (3G/HD/SD-SDI)

PCIe Gen2 x4

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2, supports x86, x64 & arm architecture)
Mac OS X

Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA

VLC, VirtualDub, OBS, xSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

Image resolutions up to 2048 x 2048
Frame rates up to 120 fps (actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions; above 1280 x 1024)

4:2:0 8-bit output formats; NV12, I420, YV12
4:2:2 8-bit output formats; YUY2, YUYV, UYVY
4:4:4 8-bit output formats; V308, IYU2, V408, BGR24, BGR32
4:4:4 10-bit output formats: V410, Y410
More output formats are supported via Pro Capture SDK for DirectKS

400 MB/s per channel DMA bandwidth in a PCIe 2.0 system
200 MB/s per channel DMA bandwidth in a PCIe 1.0 system

Per Channel: idle, input signal locked, memory failed, or FPGA configuration failed

Maximum Current at 12 V: 0.6 A
Maximum Current at 3.3 V: 2.4 A
Maximum Power Consumption: 14.3 W

32 to 104 Degree F (0 to 40 Degree C)

-4 to 158 Degree F (-20 to 70 Degree C)

5 to 90%, non-condensing

Normal profile PCIe x1 add-on card
4.4 x 4.1" / 112.2 x 102.9 mm, without PCI bracket

CE, FCC, VCCI, Thunderbolt technology

High-quality aluminum with metal chassis

1x PCIe card
Supports half-length, full-height, and double-width cards
PCIe (x16) slot provides a maximum of 25 W
Note: Not designed for graphics cards

2x Thunderbolt 3 (USB-C) ports
1 x DisplayPort 1.1
1 x Internal PCIe (x16) slot with 4-lane PCI Express 3.0 interface

Thunderbolt 3 up to 40 Gb/s
DisplayPort 1.1a (4K at 60 Hz)

Windows 7 and later computer with Thunderbolt 3 port

Operating Temperature: 41 to 95 Degree F / 5 to 35 Degree C
Storage Temperature: -4 to 140 Degree F / -20 to 60 Degree C
Relative Humidity: 5 to 95%, non-condensing

External power adapter (UL, cUL, CE, FCC, BSMI, TUV approved)
Input: 100 to 240 VAC, 50/60 Hz
Output: 12 VDC, 6 A

23 dBA

9.17 x 5.87 x 2.99" (23.3 x 14.9 x 7.6cm)

737993160311
