Introducing: VDV MapMaster 2.0 - Voice/Data/Video Length
1 video

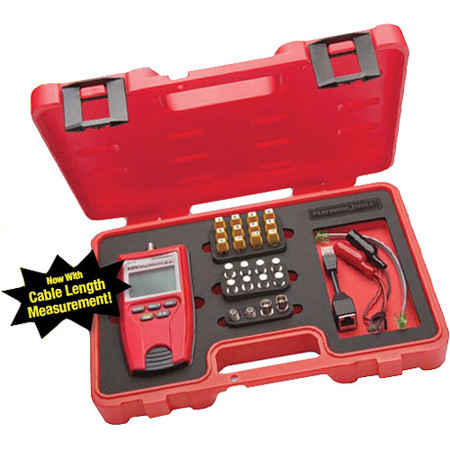

Platinum Tools VDV MapMaster 2.0 Test Kit
See all Platinum Tools items

Platinum Tools VDV MapMaster 2.0 Test Kit

SKU: PTT129K1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Platinum Tools VDV MapMaster 2.0 Specifications

  • Maximum Voltage

    Between any two connector pins without damage:
    RJ Jack: 66V DC or 55V AC
    F-Connector: 50V DC or AC

  • Battery Life

    9V alkaline battery typical
    Standby: 4 years
    Active: 425 hours

  • Cable Types

    Shielded or Unshielded; Cat7, Cat6x, Cat5e, Cat5, Cat4, Cat3, Coax

  • Maximum RJ Cable Length

    0 to 1000' (305m)

  • Minimum Cable Length

    1.5' (0.5m) (for Split Pair Detection)

  • Low Battery

    Icon flashes when battery voltage falls below 6V

  • Measurement Technology

    Capacitance testing

  • Length Accuracy

    +/- 3% plus +/- 1' without Length Constant Accuracy

  • Cable Length Measurement

    1 to 2000' CAT5E cable with 15 pF/ft length constant

  • Default Length Constant

    Restored with power on reset:
    Voice: 17.4 pF/ft
    Video: 16.5 pF/ft
    Data: 15 pF/ft

  • Safety

    CE

  • Operating Temperature

    0 to 32 deg. C (32 to 90 deg. F)

  • Storage Temperature

    -20 to -4 deg. F (-29 to -20 deg. C)

  • Humidity

    10% to 90%, non-condensing

  • Dimensions

    6.4 x 2.8 x 1.4" (16.26 x 7.11 x 3.56cm)

  • Weight

    9.0 oz (255.15g) with battery and remote

  • UPC Code

    849160005230

About Platinum Tools VDV MapMaster 2.0

The VDV MapMaster 2.0 combines continuity testing, mapping, tone generator and length measurement functions into a single unit. Capable of identifying and mapping 19 locations at one time. Whether your jobs are commercial or residential, the versatility & added features of the VDV MapMaster 2.0 makes it an installer's best friend!

Platinum Tools VDV MapMaster 2.0 Features

  • Tests and indicates pins with shorts, opens, reversals, miswires and split pairs
  • Tests Voice (6 wire), Data (8 wire) and Video (coax)
  • Measures the entire length of a cable and/or individual wire pairs and lengths to Opens. (Feet/Meters)
  • Easy to read, extra large 7-segment LCD screen with large icons
  • Identify up to 19 network or coax cable runs at a time using ID only remotes
  • Works with Cable Tester Smart Remotes (#1-8)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Platinum Tools VDV MapMaster 2.0 Main Unit
  • #1-8 ID Only Coax Remote Set
  • #1-12 ID Only Network Remote Set
  • 2x F81 F Connector Coupler
  • Cable Assembly RJ45 to Alligator Clip
  • No-Fault RJ12 Cable
  • RJ45 Port Saver
  • BNC Adapter Kit
  • 9V Battery
  • Durable Plastic Case & Insert Foam
  • Platinum Tools 1 Year Limited Warranty
