Platinum Tools VDV MapMaster 3.0 Cable Tester Kit
See all Platinum Tools items

Platinum Tools VDV MapMaster 3.0 Cable Tester Kit

SKU: PTT130K1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Platinum Tools VDV MapMaster 3.0 Specifications

  • Display

    Large 2.75" Backlit Monochrome LCD

  • Maximum Voltage

    RJ12/RJ45/F: 50V DC or AC (Voltage between any two connector pins without damage)

  • Battery Life

    9V alkaline battery typical
    Standby: 4 years
    Active: 425 hours

  • Cable Types

    Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax

  • Maximum RJ Cable Length

    (Testing) 0 to 1000' (305m)

  • Minimum Cable Length

    for Split Pair Detection: 1.5' (0.5m)

  • Maximum Coax Cable Length

    Varies depending on cable resistance varies

  • Low Battery

    Icon flashes when battery voltage falls below 6V

  • Measurement Technology

    Capacitance testing

  • Length Accuracy

    (Without Length Constant) +/- 3% plus + 1 foot

  • Default Length Constant

    (Restored with power on reset)
    Voice (Twisted pair): 17.4 pF/ft
    Video (Coax): 16.5 pF/ft
    Data (Twisted pair): 15 pF/ft

  • Temperature

    Operating: 0 Degree C/32 Degree F to 50 Degree C/122 Degree F
    Storage Temperature -20 Degree /-4 Degree F to 60 Degree C/140 Degree F

  • Humidity

    10% to 90%, non-condensing

  • Dimensions

    6.8 x 3.2 x 1.4 (17.3 x 8.1 x 3.5cm)

  • Weight

    10.8 oz (305g) with battery and remote

  • UPC Code

    849160008576

About Platinum Tools VDV MapMaster 3.0

The VDV MapMaster 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer!

This new kit offers a set of 20 ID Only Network remotes, patch cables, RJ45 Port Saver in a hanging pouch. This kit offers a great cable tester with the ability to easily locate unlabeled network cables.

Platinum Tools VDV MapMaster 3.0 Features

  • Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
  • Single-ended Testing for Shorts & Split Pairs
  • Measures Length in Feet/Meters
  • Identifies cable location on active ports using flashing Port Link Light
  • Easy to read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
  • Identify up to 20 network or coax cable runs at a time
  • Audible Tone Generator, 4 selectable cadences
  • Tests Voice (6 wire), Data (8 wire) and Video (coax)
  • Works with Cable Tester Smart Remotes (#1-8)
  • Made in USA with global components

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
  • Single-ended Testing for Shorts & Split Pairs
  • Measures Length in Feet/Meters
  • Identifies cable location on active ports using flashing Port Link Light
  • Identify up to 20 network or coax cable runs at a time
  • Audible Tone Generator, 4 selectable cadences

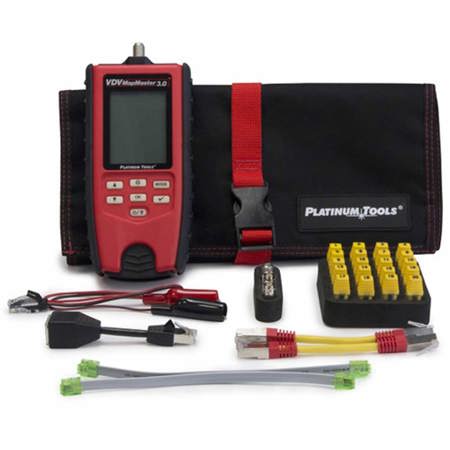

What's in the box:

  • VDV MapMaster 3.0 Main Unit
  • 20x ID Only Network Remotes (#1-20)
  • RJ45 Port Saver
  • 2x No-Fault RJ12 Cable
  • 5 " FTP Patch Cable
  • Cable Assembly (RJ45 to Alligator Clip)
  • BNC Adapter Kit
  • 9V Battery
  • Hanging Pouch
  • Platinum Tools 1 Year Limited Warranty
