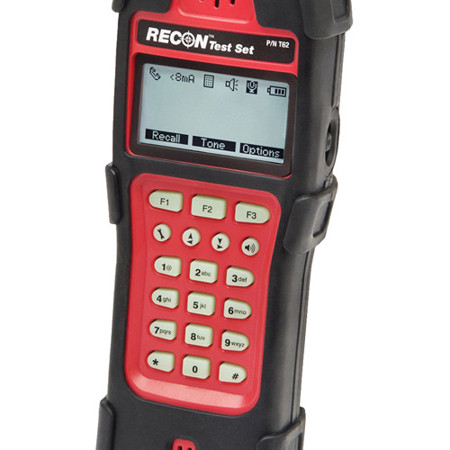

Platinum Tools RECON Test Set

The RECON is the first true 21st century telecommunication line analyzer setting a new standard for POTS butt sets. It is a field instrument that delivers more information of online conditions & status than any other test set on the market, anywhere in the world!!

Functions
• 60-in cord set with Alligator Clips, Angled Bed-of-Nails, Piercing Point and No-Fault RJ12 8P8C connector
• Speaker with fine volume adjustment
• Noise cancelling microphone
• Microphone mute with toggle on/off locking feature
• Soft key menu system
• Metal spring-loaded belt clip
• Cushion boot for extra protection
• Off-hook current and polarity
• On-hook voltage and polarity
• On-hook and call waiting Caller ID info
• Amplified Line Monitor for volume levels comparable to
• 8 number Stored memory with Alpha/Numeric tags
• Fuel Gauge Battery condition
• Continuous Polarity Indication
• Caller ID/Call Waiting and Caller ID error detection
• Tone and Pulse dialing
• Configurable Auto Off in all modes
• Detects and identifies DSL and T1 lines
• Last number dialed, redialed or received
• Multilingual (English, French, Spanish)
• Backlight 0-100% adjustable with on/off option

Digital Protection Features
• Data Defender Data line-in-use capability
• High line voltage detection with next step options
• Data measurement options
• Active monitor circuitry minimizes load on subscriber line
• DTMF digit detection and display in monitor mode
• Detects DSL and T1 lines
• DigitView, DTMF decode sees defects on customer equipment while dialing out
• PwrSave circuitry for Extra Long battery life
