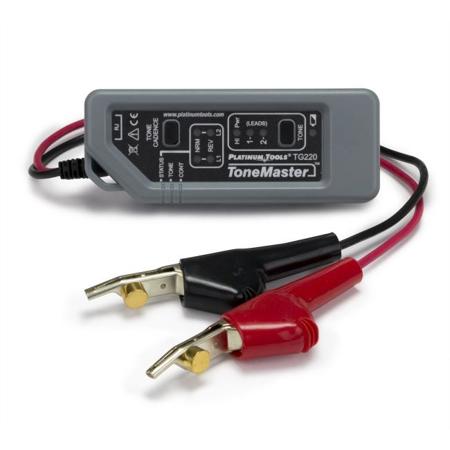

Platinum Tools ToneMaster High Powered Tone Generator with ABN Clips

SKU: PTTG220C
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Platinum Tools Tone Generator Specifications

  • Tone Frequencies

    Dual 1165 Hz and 874 Hz
    Two single tones 1165 Hz and 874 Hz

  • Tone Power

    Typical (into 600Ohms, new battery to 5.0 V)
    LO 3.6 dBm
    HI 9.3 dBm

    High Power Mode:
    LO 12.3 dBm
    HI 18.4 dBm

  • Voltage Protection

    Status: DC 60 V, continuous & AC 300 V peak, 2 secs
    Continuity (into 600Ohms) - DC 52 V
    Tone Mode: 250 DC or peak AC volts

  • Electrical Battery Life

    Time is for the full capacity of the battery used continuously (one 9 V Alkaline, 540 mA-hr, not included): 120 hrs, typical

  • Environmental

    Operating Temperature: 0 to 50 deg. C (32 to 122 deg. F)
    Storage Temperature: -50 to 75 deg. C (-58 to 167 deg. F)

  • Dimensions

    11.4 x 4.4 x 3.3cm (4.49 x 1.73 x 1.30")

  • Weight

    42g (1.48 oz) (with battery)

  • UPC Code

    849160008958

About Platinum Tools Tone Generator

The Platinum Tools ToneMaster high-power tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax and telephone cable applications. Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel. Paired with the Platinum Tools ToneSeeker tracer the ToneMaster makes easy work of tracing and locating cables and cable ends.

Platinum Tools Tone Generator Features

  • 700% more power than standard tone generators
  • Unbalanced tone mode supports longer distances on UTP cables
  • Constant amplitude output ensures no signal decrease as battery discharges
  • Auto-off for battery conservation
  • Full talk battery to power a dry line
  • Tone may be added in any mode - phone sets without a monitor feature can pick up tone
  • Part number TG220C includes molded-in angled bed-of-nails (ABN) clips

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Platinum Tools ToneMaster High Powered Tone Generator with ABN Clips
  • Platinum Tools 1 Year Warranty
