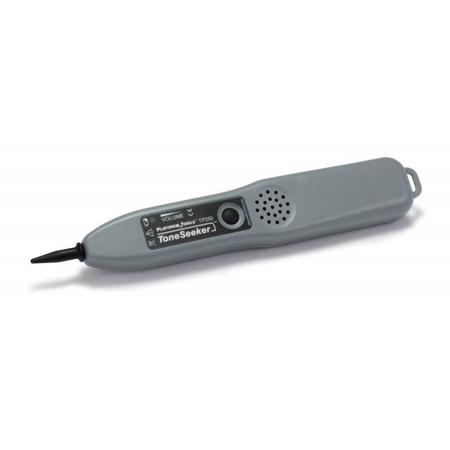

Platinum Tools ToneSeeker Tone Tracer Probe

SKU: PTTP250C

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Platinum Tools ToneSeeker Specifications

  • Tone Sensitivity

    Input Impedance: 10MOhms (to internal ground, inaccessible outside the case)
    Probe Tip Resistance (min): 10KOhms/square (bulk resistance)
    Frequency Range: 340 Hz - 1.6K Hz

  • Electrical Battery Life

    Time is for the full capacity of the battery used continuously (one 9 V alkaline, 540 mA-hr, not included): 15 hrs, typical

  • Environmental

    Operating Temperature: 0 to 50 deg. C (32 to 122 deg. F)
    Storage Temperature: -50 to 75 deg. C (-58 to 167 deg. F)

  • Dimensions

    24.13 x 3.81 x 2.54cm (9.50 x 1.50 x 1.00")

  • Weight

    121g (4.27 oz) (with battery)

  • UPC Code

    849160008965

About Platinum Tools ToneSeeker

The Platinum Tools Tone Tracer is an ergonomic, high-sensitivity probe for field service professionals. Used in conjunction with any analog tone generator, the ToneSeeker identifies wire and cable without having to make direct metallic contact with the conductor. Compatible with any analog tone generator, the ToneSeeker emits a clear and loud tone as a cable is traced. Frequency filtering blocks out background noise and the auto-off extends battery life. The surface area and shape of the replaceable tip is optimized to detect weak tones and to penetrate wire bundles to make wire tracing easy.

Platinum Tools ToneSeeker Features

  • Comfortable ergonomic shape, balanced weight
  • Volume control
  • Tip replacement without opening case
  • Battery-low indicator
  • Slender profile to fit in any tool pouch
  • Lanyard attachment point

What's in the box:

  • Platinum Tools ToneSeeker Tone Tracer Probe
  • Platinum Tools 1 Year Warranty
