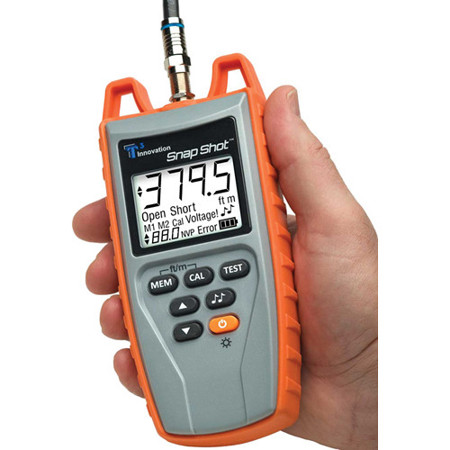

Platinum Tools Snap Shot Fault Finder/Cable Length Measurement SSTDR

SKU: PTTSS200

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Platinum Tools Snap Shot Specifications

  • Input Protection

    To 400 volts peak 50/60 Hz AC or DC

  • Voltage Warning

    At maximum of Safety Extra Low Voltage limits (60V peak AC or DC)
    Measurement continues while warning is displayed

  • Measurement Method

    Spread Spectrum Time Domain Reflectometry (SSTDR)

  • NVP (VOP) Range

    20.0 to 99.9%

  • NVP Accuracy Range

    +/-1% with known NVP and consistent cable parameters

  • Maximum Length

    3000' (914.4m) on cables with low attenuation

  • Common Cable Length Ranges

    Coaxial Cable - 0 to 2000' (0 to 609.6m)
    Data Cable - 0 to 1500' (0 to 457.2m)
    Electrical Cable - 0 to 1000' (0 to 304.8m)

  • Tone Generation

    4 selectable tone cadences centered on 1 kHz
    Constant output amplitude of 3 Vp-p

  • Power

    4 AA alkaline batteries
    Standby: 4 years
    Active: 15 hours average

  • Battery Low Level

    Approximately 4 volts

  • Operating Environment

    Operating temperature: 32 to 122 Degree F (0 to 50 Degree C)
    Storage temperature: -4 to 140 Degree F (-20 to 60 Degree C)
    Humidity: 10% to 90%, non-condensing
    Altitude: 10000' (3050m) maximum

  • Compliance

    Complies with Conformite Europeenne directives

  • Dimensions

    6.8 x 3.15 x 1.3" (17.3 x 8.0 x 3.3cm)

  • Weight

    With Battery: 12 oz (340g)

  • UPC Code

    849160004653

About Platinum Tools Snap Shot

When you need to accurately find the length of any cable; a short, a break or an open fault in a very long cable; a cable that is buried or a cable that is energized, look no further than the Snap Shot. With Advanced Spread Spectrum TDR (SSTDR) technology the Snap Shot works in all wire environments and is immune to voltage, current or data stream disruptions. Measure cable lengths and faults up to 3000 feet in environments where electrical noise, current and power can render your other testers ineffective or inaccurate. See the true picture of your wiring and cable systems with Snap Shot today.

Application

Types of applications:
• CCTV installations
• Solar power installations
• Aircraft or naval data communications
• HVAC controls
• Data Centers
• Under ground cabling
• Event venues

• Holds up to two different NVP values for multiple cable tests
• Tests length, opens or shorts present on the cable, up to 3000'
• Produces four different tones for locating cables
• Ability to calibrate NVP for any cable

Platinum Tools Snap Shot Features

  • Finds cable length or distance to fault from one end up to 3000'
  • Easily measures cable distance on spool
  • Accuracy of 1% or better
  • Calibrates custom NVP values for any cable
  • Internal memory for storing most used NVP values
  • Large backlit LCD display
  • Built-in tone generator for cable tracing & identification
  • Loop test for continuous testing
  • Displays length reading in feet or meters
  • Auto-off to preserve battery life

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Finds cable length or distance to fault from one end up to 3000'
  • Easily measures cable distance on spool
  • Accuracy of 1% or better
  • Calibrates custom NVP values for any cable
  • Internal memory for storing most used NVP values
  • Large backlit LCD display

What's in the box:

  • Snap Shot Fault Finder/Cable Length Measurement SSTDR
  • TCA001 Cable Assembly for Snap Shot Tester
  • TCA002 Cable Assembly for Snap Shot Tester
  • TCA003 Cable Assembly for Snap Shot Tester
  • F81 Connector Coupler for the Snap Shot
  • 2x 18303 F-Jack to BNC Jack Adapter
  • Platinum Tools 1 Year Limited Warranty
