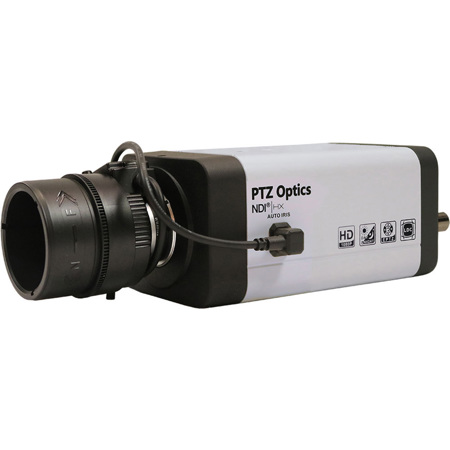

PTZOptics VL-NDI-ZCAM Full HD NDI|HX 3G-SDI IP Network Camera with 4x Zoom Lens
See all PTZOptics items

PTZOptics VL-NDI-ZCAM Full HD NDI|HX 3G-SDI Broadcast and Conference IP Network Camera with 4x Zoom Lens

SKU: PTVLNDIZCAM
Be the first to review this item

This item is no longer available.

Recommended Alternatives

PTZOptics NDI|HX ZCam Box Camera: Picture 1 regular
PTZOptics 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera, 12x Optical Zoom, White
$1,209.00
PTZOptics NDI|HX ZCam Box Camera: Picture 1 regular
PTZOptics 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera, 20x Optical Zoom, White
$1,319.00
PTZOptics 3G-SDI Box Camera: Picture 1 regular
PTZOptics 2.07MP Full HD 3G-SDI Box Camera, 20x Optical Zoom, White
$879.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

PTZOptics ZCAM Specifications

Camera & Lens

Camera & Lens

Jump to...

  • Video Sensor

    1/2.7" CMOS, 2.07 Mega Pixels

  • Frame Rates (SDI)

    1080p-60/50/30/25, 1080i-60/50/30/25
    720p-60/50/30/25

  • Focal Length

    F4.42mm-88.5mm, F1.8-F2.8

  • Included Lens Zoom

    4x

  • Incl. Field of View

    122 Degree

  • Min Lux

    0.5 Lux at F1.8, AGC ON Physical Specifications

  • Shutter Speed

    1/30s - 1/10000s

  • SNR

    >=55dB

  • Vertical Flip & Mirror

    Supported

  • Horizontal Field of View

    28 Degree (tele) to 122 Degree (wide)

  • Vertical Field of View

    16 Degree (tele) to 91 Degree (wide)

  • Working Environment

    Indoor

Rear Board Connectors

Jump to...

  • Communication Interface

    RS485 VISCA, Pelco-D, Pelco-P

  • Baud Rate

    2400/4800/9600 bits

  • Power Supply Interface

    JEITA type Power Adapter (DC in 12V)

Physical

Jump to...

  • Dimensions (W x D x H)

    2.4 x 5.7 x 3.0" (60.9 x 144.7 x 76.2mm)

  • Weight

    1.4 lb (0.63kg)

Other

Jump to...

  • UPC Code

    737993161295

About PTZOptics ZCAM

Broadcast & Conference Camera

The PTZOptics VL-NDI ZCAM is a 1080p camera with wide angle lens for capturing HD images at short distances. With support for NDI|HX, 3G-SDI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

PTZOptics ZCAM Features

  • Panasonic 1/2.7" HD CMOS Sensor
  • 3G-SDI & NDI|HXTM High Definition Video Output
  • H.264, H.265, & MJPEG IP streaming output (dual stream)
  • AAC Audio encoding over IP
  • High performance in low light scenarios
  • Full 1920x1080p HD Resolutions up to 60 FPS via SDI (30 FPS over NDI)
  • 3G-SDI, & NDI or IP streaming (Both simultaneously)
  • Std 1/4-20 female thread for camera mounting (top & bottom)
  • PoE (Power over Ethernet) or 12VDC
  • RTMP, RTSP, and NDI|HX
  • C/CS Type lens mount
  • RS485 and IP remote camera control

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Panasonic 1/2.7" HD CMOS Sensor
  • 3G-SDI & NDI|HXTM High Definition Video Output
  • H.264, H.265, & MJPEG IP streaming output (dual stream)
  • AAC Audio encoding over IP
  • High performance in low light scenarios
  • Full 1920x1080p HD Resolutions up to 60 FPS via SDI (30 FPS over NDI)

What's in the box:

  • PTZOptics VL-NDI-ZCAM Full HD NDI|HX 3G-SDI IP Network Camera
  • 4x Wide-Angle Zoom Lens
  • Power Adapter
  • User Manual
  • PTZOptics 3 Year Limited Warranty
