AC100-240V, 50Hz/60Hz
368 W (4.0A-1.7A) (395VA) (The power consumption is 358 W at 200-240V)
Normal: 355 W (100-240 V), 345 W (200-240 V)
Eco: 275 W (100-240 V), 265 W (200-240 V)
Quiet1: 320 W (100-240 V), 310 W (200-240 V)
Quiet2: 270 W (100-240 V), 260 W (200-240 V)
Normal: 20W
Eco: 0.5W
Max 1,256 BTU
0.64" (16.3mm) diagonal (16:10 aspect ratio)
3x Transparent LCD panel (R/G/B)
2,304,000 (1920 x 1200) pixels
60 Hz Refresh rate varies depending on scanning frequency.
Laser Diode
Normal: 6,200 lm / 6,200 lm(ANSI)
(PICTURE MODE) is set to (DYNAMIC), (DAYLIGHT VIEW) is set to (OFF), (AUTO POWER SAVE) is set to (OFF)
Eco: 4,350 lm
Quiet1: 5,250 lm
Quiet2: 4,350 lm
Normal: 20,000 hours
Eco: 24,000 hours
Quiet: 20,000 hours
20,000 hours (Under the dust conditions of 0.08mg/m)
10,000 hours (Under the dust conditions of 0.15 mg/m)
Filter cleaning cycle varies depending on the environment. The filter can be washed and reused up to two times.
WUXGA (1920 x 1200dots)
3,000,000:1
When (PICTURE MODE) is set to (DYNAMIC), (DYNAMIC CONTRAST) is set to (1)
80-250" (203.2-635cm), 16:10 aspect ratio
85%
1.2x Manual zoom (Optical) (Throw ratio 0.797-1.01:1)
Powered focus lens, F=1.6-1.71, f=11.5-14mm
Throw Ratio 0.797-1.27:1 (Corresponding value) (When optical zoom is used together.)
+50% (from the origin point of the lens mounter)
+/-20% (from the origin point of the lens mounter)
Ceiling/floor, front/rear, free 360-degree installation
10W (monaural)
Resolution: 640 x 400 to 1920 x 1200
Dot clock frequency: 162 MHz or less
PIAS (Panasonic Intelligent Auto Scanning) system
Resolution: 480i/576i to 1920 x 1080
Dot clock frequency: 148.5 MHz or less
The HD/SYNC and VD terminals do not support 3 value SYNC.
Moving image signal resolution: 480i/576i to 4096 x 2160
Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace)
Dot clock frequency: 25 MHz to 297 MHz
Moving image signal resolution: 480i/576i to 4096 x 2160
Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace)
Dot clock frequency: 25 MHz to 297 MHz
2x HDMI-19 pin
Deep Color, compatible with HDCP 1.4, 4K/30p signal input, CEC supported
Audio Signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
1x D-sub 15 pin (female)
RGB: 0.7 V (p-p), 75 ohms (1.0 V (p-p), 75 ohms for sync on G)
HD/SYNC, VD: TTL, high impedance, positive/negative automatic
YPbPr: Y: 1.0 V (p-p), including sync signal, Pb/Pr (Cb/Cr): 0.7 V (p-p), 75 ohms
1x M3 stereo mini-jack
0.5 V (rms), input Impedance 22 k Ohms and more
1x M3 stereo mini-jack
0 V (rms) to 2.0 V (rms) variable, output Impedance 2.2 k ohms and less
1x D-sub 9-pin (female) for computer control (RS-232C compliant)
1x RJ-45 for network connection, PJLink (Class 2) compatible with 10Base-T/100Base-TX
1x RJ-45 for network and DIGITAL LINK connection, HDBase-T compliant, 100Base-TX, compatible with PJLink (Class 2), HDCP 1.4, Deep Color, 4K/30p signal input
1x USB connector (Type A) for Memory Viewer function, optional Wireless Module AJ-WM50, power supply (DC 5 V, maximum 2 A)
IPv4, IPv6
6' (2m)
Normal: 37 dB
Eco: 37 dB
Quiet1: 32 dB
Quiet2: 27 dB
Class 1 (IEC/EN 60825-1:2014)
Risk Group 2 (IEC 62471-5:2015)
32 to 113 Degree F (0 to 45 Degree C)
20% to 80% (no condensation)
White
Molded plastic
Excluding Protrusions: 16.38 x 4.80 x 16.77" (41.6 x 12.2 x 42.6cm)
Including Protrusions: 16.38 x 6.69 x 16.77" (41.6 x 17 x 42.6cm)
18.15 lbs (8.6kg) (Approx.)
3V DC (2x AAA/R03/LR03 battery)
98' (30m) (Approx.) (when operated directly in front and Lear of signal receptor)
1.88 x 5.70 x 1.06" (48 x 145 x 27mm)
3.60 oz (102g) (Approx.) (including batteries)
885170435520

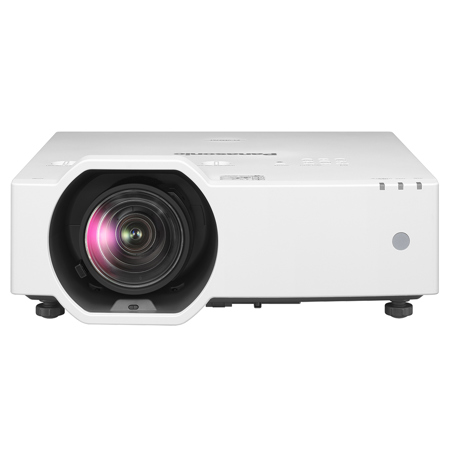

Projectors play a key role in bringing engaging, inspiring and though-provoking experiences, requiring crystal clear image quality and flexible installation in venues with limited space. Whether it's for a lecture hall, boardroom, art exhibition or sports simulation, the PT-VMZ6ST Series Short Throw LCD projectors answer these diverse needs. This projector series offers high performance and improved sustainability in a space-efficient, whisper-quiet design adapting seamlessly and unobtrusively to various physical layout.
Stress-free Installation Adapts to Various Layouts
Designed for golf simulators and digital museums, the VMZ6ST Series projects vibrant 100-inch images from just 1.72 m (5.6 ft), minimizing screen shadows in tight spaces. Powered focus eliminates manual adjustment in hard-to-reach areas while 1.2x optical zoom, V/H lens shift, and 6-Point Screen Correction enhance layout flexibility. Grid Adjustment, Angle Monitor, and data-cloning via LAN/USB streamline installation, making the VMZ6ST Series a smart choice for creating engaging experiences in diverse environments.
Clear Projection in Bright Spaces
The VMZ6ST Series delivers sharp, realistic visuals in well-lit spaces with up to 6,200 lm brightness, 3,000,000:1 Dynamic Contrast, and Daylight View Basic for optimal image quality in any lighting. Advanced color adjustment offers precise adjustments for more vibrant reproduction, ideal for colorful game content and museum artwork. DIGITAL LINK supports 4K signal input and control commands over LAN, enhancing flexibility in larger venues, while CEC command-compatible HDMI simplifies control with compatible devices.
Eco-Friendly Design
Designed for a sustainable life cycle, the projector body plastic contains about 59% recycled resins and is shipped in a carton featuring easily recyclable cardboard insulation. Its high-efficiency laser light source and long-life ECO Filter require no maintenance for 20,000 hours, minimizing downtime, resource consumption, and waste. Auto Power On reduces energy wastage during idle periods, while the new built-in scheduling feature supports automated operation and playback according to a daily schedule, optimizing resource management.
