24% Off

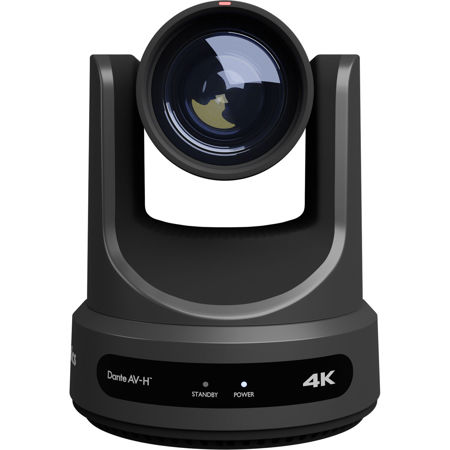

PTZOptics Link 4K SDI/HDMI/USB/IP Dante AV-H Indoor PTZ Camera with Tally Light Gray 12x

SKU: PTZ12XLK4KGY MFR: PT12X-LINK-4K-GY
Earn VIP Reward Points

Key Features

  • Capture stunning 4K UHD video with this PTZ camera, perfect for broadcasting and streaming.
  • Experience smooth pan, tilt, and zoom functions for professional video production and remote control.
  • Use auto-tracking to keep subjects in frame, ideal for lectures and dynamic presentations.
  • Connect via HDMI, SDI, USB, or IP for versatile integration in any video production workflow.
  • Enjoy simple setup with PoE+ support, streamlining installation for live events and conferences.
  • Dante AV-H enabled for seamless audio integration, enhancing your video conferencing experience.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CHRISTOPHER B : We have two already, and are starting to add and upgrade to Dante capability.

Reviews about this item

Review Summary

PTZOptics Link 4K Specifications

Image Sensor & Lens

Image Sensor & Lens

Jump to...
  • Video Sensor

    12x: 1/2.5", UHD Sony CMOS sensor, effective pixels: 8.51M
    20x and 30x: 1/1.8", Sony CMOS sensor, effective pixels: 8.42M

  • Resolution and Frame Rate

    HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
    SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94

  • Lens Zoom

    12x: f = 4.4mm - 52.8mm, F1.8 - F2.6
    20x: f = 6.25mm - 125mm, F1.58 - F3.95
    30x: f = 7.1mm - 210mm, F1.61 - F5.19.

  • Field of View

    12x: Horizontal: 6.9 Degree (tele) - 72.5 Degree (wide), Vertical: 3.9 Degree (tele) - 44.8 Degree (wide)
    20x: Horizontal: 3.5 Degree (tele) - 60.7 Degree (wide), Vertical: 1.9 Degree (tele) - 34.1 Degree (wide)
    30x: Horizontal: 2.5 Degree (tele) - 59.2 Degree (wide), Vertical: 1.4 Degree (tele) - 34.6 Degree (wide)

  • Min. Lux

    0.5 Lux @ (F1.8, AGC ON)

  • Shutter

    1/30s - 1/10000s

Pan/Tilt Movement

Jump to...
  • Pan Movement

    +/-170 Degree

  • Pan Speed

    -1.7 Degree - 100 Degree /s

  • Tilt Movement

    -30 Degree - +90 Degree

  • Tilt Speed

    1.7 Degree - 69.9 Degree

  • Presets

    255 Presets

  • Preset Accuracy

    0.1 Degree

  • Image Flip, Mirror and Freeze

    Supported

Electrical Index

Jump to...
  • Power Supply

    DC 12V / PoE+ (802.3at)

  • Input Power

    18W (Max)

Rear Board Connectors

Jump to...
  • HD Video Output

    1x RJ45: 10/100/1000M Adaptive Ethernet Port
    1x HDMI: version 2.0
    1x USB 2.0: type A
    1x 3G-SDI: BNC type, 800mVP-p, 75 Ohm, Along to SMPTE 424M standard

  • Audio Interface

    1x 3.5mm Line level Input

  • Communication Interface

    1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P

  • IR

    4x IR addresses, max distance 30ft / 9m

  • Power Jack

    JEITA type (DC IN 12V)

Physical

Jump to...
  • Available Colors

    Black, White

  • Material

    Aluminum, Plastic

  • Working Environment

    Indoor

  • Operating Temperature

    14 Degree F - 104 Degree F (-10 Degree C to 40 Degree C)

  • Storage Temperature

    -40 Degree F - 140 Degree F (-40 Degree C to 60 Degree C)

  • Dimensions (W x D x H)

    12x and 20x: 5.57 x 5.94 x 6.93 (141.5 x 151 x 176mm) (7.91" (201mm) with tilt up)
    30x: 6.69 x 7.12 x 8.98" (170 x 181 x 228mm)

  • Weight

    12x and 20x: 3.25 lbs (1.47kg)
    30x: 4.41 lbs (2kg)

  • UPC Code

    840170500739

About PTZOptics Link 4K

Your Dante Workflow is About to Get Easier
Ready to add video to your Dante setup With Dante AV-H and the latest in auto-tracking capabilities, the Link 4K fits easily into even the most complex Dante design or workflow. The Link 4K combines broadcast quality with Dante's simple discovery, set up and management, simplifying and professionalizing any video production installation.

What is Dante AV-H
Dante AV-H brings device interoperability and the power of Dante to H.26x endpoints. With Dante AV-H, all video and audio routing, configuration, and management of devices is done with one easy to use platform. The Link 4K will automatically sync up with your Dante system clock leader ensuring seamless audio and video synchronization, and is able to output Dante AV-H video on your network natively, along with audio sources connected to the 3.5mm audio input.

Designed with the Future in Mind
Every Link 4K camera features SDI, HDMI, USB, and IP output for unparalleled performance and versatility. The Link 4K features 4K at 60fps over HDMI, USB, and IP. Using technology by Dante, the Link 4K can also provide 4K at 60fps resolution over Dante AV-H.

The Link 4K offers built-in auto-tracking capabilities - no need to run software on another computer - freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Link 4K can fit seamlessly into any production scenario.

Pan, Tilt, Zoom, Track.
Control your production from behind the scenes - or right in front of them. The Link 4K's auto-tracking can lock onto a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Link 4K can track subjects up to 300 feet away.

In addition to the Link 4K's auto-tracking features, users will also have access to our latest Web UI - updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Discreet Mounting Options
Mount your PTZOptics Link 4K camera above, below or beside the action to capture the ideal view every time. The Link 4K's automatic video inversion feature senses the camera's orientation and saves time on installation and setup.

• Wall Mounts
• Ceiling Mounts
• Pole Mounts
• Outdoor Enclosures

Take Control Your Way
Users can control Link 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster - or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube

Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:

• Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
• Control apps for desktop and mobile devices
• Plugins and integrations for popular platforms, including OBS and Twitch
• Camera configuration and management tools
• Support and testing utilities
• And more!

More Than Just Video
The PTZOptics Link 4K camera can send video over the network via Dante AV-H, and it can also send and receive audio. The PTZOptics Link 4K camera features a 3.5mm audio input and output that can be used with Dante AV-H. The 3.5mm audio input can be used to take analog audio and send two channels of Dante audio out over the network (left and right channel audio). The 3.5mm audio output can be used to output audio from another Dante source on the network.

PTZOptics Link 4K Features

  • Built-In Auto-Tracking
  • Wide Dynamic Range
  • Up to 4K Resolution @ 60fps
  • Dante AV-H
  • 3D Noise Reduction

Key Features

  • Capture stunning 4K UHD video with this PTZ camera, perfect for broadcasting and streaming.
  • Experience smooth pan, tilt, and zoom functions for professional video production and remote control.
  • Use auto-tracking to keep subjects in frame, ideal for lectures and dynamic presentations.
  • Connect via HDMI, SDI, USB, or IP for versatile integration in any video production workflow.
  • Enjoy simple setup with PoE+ support, streamlining installation for live events and conferences.
  • Dante AV-H enabled for seamless audio integration, enhancing your video conferencing experience.

What's in the box:

  • PTZOptics Link 4K SDI/HDMI/USB/IP Dante AV-H Indoor PTZ Camera with Auto-Tracking and Tally Light
  • 12 VDC Power Adapter
  • IR Remote Control
  • USB-A to USB-A Cable
  • RS-232 Cable
  • 2x AA Battery
  • PTZOptics 5 Year Limited Warranty
