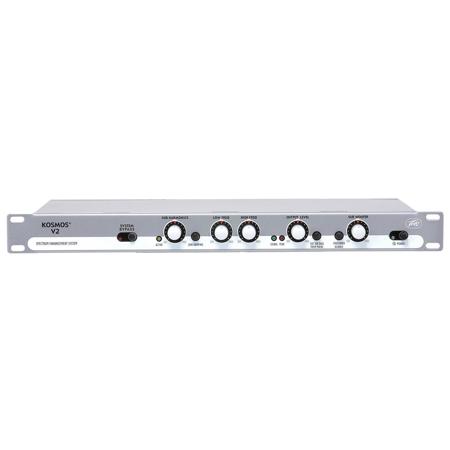

Peavey Kosmos V2 Spectrum Enhancement System, 10Hz-80KHz Frequency Response (Bypassed), 60dB CMRR, <75dB Crosstalk

The Kosmos v2 is a second generation sub harmonic and stereo image enhancement system. As the successor to the award winning Kosmos, it incorporates improved circuitry and adds features to provide even more functionality for live sound and recording applications. Like the original Kosmos, it can provide planet rattling bass as its sub harmonic processor watches the source material, analyzes the bass, then generates additional phase-synced low frequencies an octave below it. Borrowing from the Kosmos Pro, the damping (tracking) has two preset ranges.

When using the Kosmos v2, it is recommended that other equalization (especially output equalization) be set flat. Adjust the Kosmos v2 to optimize the tone quality, then make any fine adjustments with the other gear. You may find that little needs to be tweaked, since the Kosmos v2 corrects deficiencies in the speaker system. Bass boost applied before the Kosmos v2 may defeat what you are trying to accomplish by causing the sound to be muddy or distorted.
