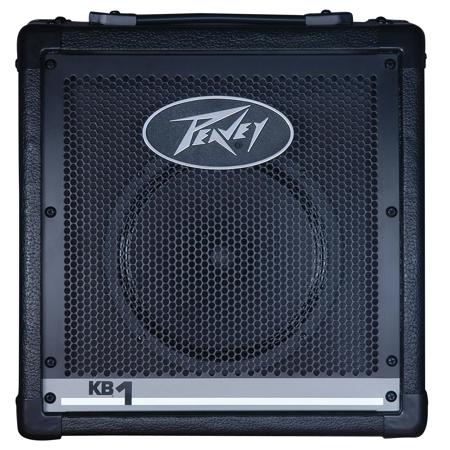

Peavey KB1 20W Keyboard Amplifier, 8" Extended Range Speaker, 0Hz-10kHz Frequency Response, 2-Band EQ Per Channel, Headphone Out

SKU: PV00573100 MFR: 00573100
Earn VIP Reward Points

Key Features

  • Experience clear keyboard sound with the Peavey KB1's 8" extended range speaker.
  • Perfect for practice, this 20W keyboard amplifier delivers power without the bulk.
  • Shape your sound with the KB1's 2-band EQ, offering precise tonal control for keyboards.
  • The headphone output allows for private practice, ideal for late-night keyboard sessions.
  • Durable design ensures this keyboard amp can handle frequent use and transportation.
  • Versatile input options make this keyboard amp great for various instruments and setups.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Peavey KB 1 Specifications

  • Rated power and load

    20W RMS into 4 Ohms

  • Power at clipping (typical)

    20 W RMS into 4 Ohms (5% THD, 1 kHz, 120 VAC line)

  • Total harmonic distortion

    12 W RMS, 60 Hz to i0 kHz, 4 Ohms (typically below 0.2%)

  • Power consumption

    50 Watts, 50/60 Hz, 120 VAC

  • Preamp Section

    The following specs are measured at 1i kHz with the master EQ flat at 0 dB.
    Nominal values are with Levels at 5
    Minimum values are with Levels at 10

  • Input impedance

    220 kOhms

  • Nominal input level

    -4.5 dBV, 600mV RMS

  • Minimum input level

    -20.6 dBV, 93 mV RMS

  • Maximum input level

    +12 dBV, 4V RMS

  • Frequency response

    +0, -2 dB, 0 Hz to 10 kHz

  • Headphone Out

    Stereo headphone jack, mono signal

  • Load impedance

    4 Ohms or greater

  • Nominal power output

    20 mW into 4 Ohms (Switching jack disconnects the internal speaker when plug is inserted)

  • System hum and noise

    80 dBV (both channels operating)

  • Equalization (both channels)

    +/-15 dB at 80 Hz and 8 kHz, shelving

  • Dimensions (W x D x H)

    13.75 x 9 x 14.25" / 34.93 x 22.86 x 36.20cm

  • Weight

    17.4lbs / 7.89kg

  • UPC Code

    14367115956

About Peavey KB 1

The Peavey KB 1 is perfect for practice, pre-gig warm-ups, songwriting or any application where quality sound is important, but a large, bulky unit is just too much. The design of the KB 1 makes it a compact workhorse amplifier for keyboardists, acoustic guitar players and other musicians needing full-range output in a small package. At 20 Watts RMS, the KB 1's heavy-duty 8" speaker gets the job done! And for situations that require headphones, the KB 1 delivers. Two channels are provided, featuring 1/4" inputs, level controls and two-band active equalization (Low, High). The front panel headphone jack automatically disables the internal speaker when connected.

Special attention was given to make the KB 1 as compact and light as possible to maximize portability, yet provide a "big" sound. Go ahead...pick it up! At 17.4 lbs., it's perfect for "on-the-go" projects. And the size Well, let's say it'll fit just about anywhere.

Like all of the KB Series, the KB 1 is built for the road. First, extremely tough black covering is provided along with heavy-duty corners. Second, a serious handle is available at the top of the unit. Third, a heavy-duty metal grille is provided to protect the speaker.

Peavey KB 1 Features

  • 8" extended range speaker
  • Two separate channels
  • 2-band EQ per channel
  • Headphone out
  • 20 watts of clean Peavey power

Key Features

  • Experience clear keyboard sound with the Peavey KB1's 8" extended range speaker.
  • Perfect for practice, this 20W keyboard amplifier delivers power without the bulk.
  • Shape your sound with the KB1's 2-band EQ, offering precise tonal control for keyboards.
  • The headphone output allows for private practice, ideal for late-night keyboard sessions.
  • Durable design ensures this keyboard amp can handle frequent use and transportation.
  • Versatile input options make this keyboard amp great for various instruments and setups.

What's in the box:

  • Peavey KB1 20W Keyboard Amplifier
  • Power Cord
  • Peavey 5 Year Warranty (2 Year + 3 Year with Registration)
