Review Summary
Power at Clipping (Typically):
(1 kHz, 120 VAC line)
40 W RMS into 6 Ohms
+0, -2 dB 100 Hz to 20 kHz at 35 W
RMS into 6 Ohms
Greater than 86 dB below rated power
Domestic: 75 W at 60 Hz, 120 VAC
Export: 75 W at 50/60 Hz, 220-240 VAC
Measured at 1 kHz with the controls preset as follows:
Clean Mode Switch, Classic
Lead Mode Switch, Classic
Low and High at 10
Mid at 0
Lead Pre and Post Gain at10
Lead Mode Switch, Vintage Reverb at 0
Nominal Levels are with Clean Volume at 5
Minimum Levels are with Clean Volume at 10
Load Impedance: 16 O or greater 0.3 W RMS
At Nominal Input Level: Greater than 78 dB below rated power (20 Hz to 20 kHz unweighted)
0.4 V RMS Nominal
Special Low, Mid and High passive type EQ
Vintage/Classic/Warm switch (clean)
Three distinct EQ voicings
Classic/Modern/High gain switch (lead)
Three different EQ and Gain voicings
Clean or Lead channel selection and volume Boost
17 x 19.37 x 9.25" / 431.80 x 492.00 x 234.95mm
24.5lbs / 11.11kg
0014367123791

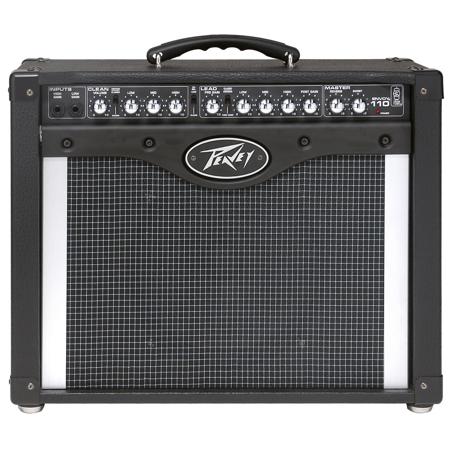

At the 1995 NAMM show thousands of players, media and dealers crammed into a small demo room inside the Peavey exhibit, one after another, where Peavey engineers set up a blind A/B comparison between their new invention and a real tube amp. No one could tell the difference between the two. Some "golden ears" even thought the TransTube Bandit was the real tube amp. But How? In devising the TransTube Circuitry, Peavey engineers studied every aspect of how a tube amp works. Peavey learned that recreating tube tone isn't merely a question of gain structure.
It's about the entire component chain and how each one interacts with the others. It's about damping factor and the corresponding speaker response. It's about power amp compression. How the amp breaks up when driven hard, harmonic structure and non-linear gain stages. It's about cabinet size, bracing, wood and thickness. But most importantly, it's about what it's not. Those other manufacturers' half-hearted attempt at tube emulation failed because they focused on the wrong elements. So Peavey concentrated on emulating the tone characteristics. They all recognize and love about tubes and 86'd the rest. It's a deceptively simple concept, but it took three U.S. Patents to map the entire process for the history books. Set up a comparison at your Peavey dealer and discover the TransTube difference for yourself. No marketing hype needed. You won't believe your ears!
