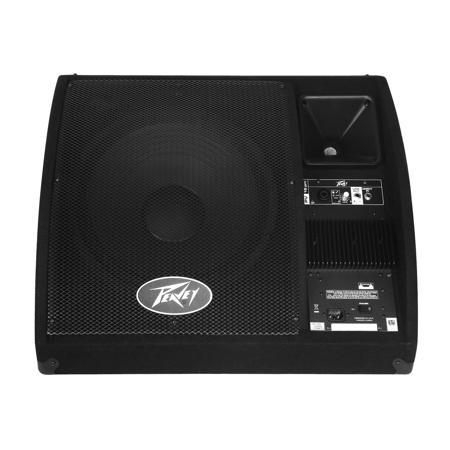

Peavey PV 15PM Two-Way Powered 15" Monitor Speaker System, Single
See all Peavey items

Peavey PV 15PM Two-Way Powered 15" Monitor Speaker System, 69Hz-17kHz Frequency Response, Single

SKU: PV03600380

This item is no longer available.

Recommended Alternatives

See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Peavey PV 15PM Specifications

  • Amplifier: Power Rating

    Woofer: 150 W at less than 0.1% distortion
    Tweeter: 50 W at less than 0.1% distortion

  • Amplifier: Nominal Input Impedance

    Primary Balanced Input: 20 kOhms line level sensitivity selected, 2.4 kOhms mic level sensitivity selected, 10 kOhms unbalanced 1/4".

  • Amplifier: Sensitivity

    Mic Switch Sensitivity Increase: 30 dB

  • Amplifier: Infrasonic filter protection

    36 dB/octave roll-off

  • Amplifier: Frequency Response

    Nominal: 0, -1 dB from 10 Hz to 30 kHz

  • Amplifier: Distortion

    Woofer Servo Distortion Reduction: 10 dB
    THD and IM: Typically less than 0.1 %

  • Amplifier: Compensation

    Equal Loudness Compensation Dynamic Range: 35 dB, frequency response of this stage is fully flat 10 dB below full amplifier power.

  • Amplifier: Hum and Noise

    Greater than 90 dB below rated power

  • Amplifier: DDT Dynamic Range

    Greater than 14 dB

  • Amplifier: Damping Factor (8Ohms)

    Greater than 100 at 1000 Hz

  • Amplifier: Power Requirements

    System (Nominal/Domestic): 110 W, 120 VAC, 60 Hz

  • Enclosure: Frequency Range

    -10 dB, Half Space: 52 Hz to 21 kHz

  • Enclosure: Frequency Response

    +/- 3 dB, Half Space: 69 Hz to 17 kHz

  • Enclosure: Sensitivity

    1 W / 1 m: 98 dB

  • Enclosure: Maximum SPL

    119 dB

  • Enclosure: Transducer

    Compliment: Sheffield Pro 1500+ 15" premium woofer, 14T 1.4" titanium diaphragm dynamic compression driver on 75 deg. X 75 deg. coverage Quadratic Throat Waveguide horn

  • Enclosure: Coverage Pattern

    Nominal Coverage Pattern: 75 deg. x 75 deg.

  • Enclosure: Crossover Frequency

    Electro-Acoustic: 3 kHz

  • Enclosure: Input Connections

    Combo female XLR and 1/4" TRS phone jack. Switchable between mic-level and line-level sensitivity.

  • Enclosure: Finish/Material

    Wedge-shaped black carpet covered enclosure with dado joined 0.25" (0.63 cm MDF (Medium Density Fiberboard) and a black powder coated steel grille

  • Enclosure: Mounting

    Steel 1.4" pole-mount cup for stand mounting, 4 x rubber feet for floor use

  • Dimensions (H x W x D)

    16.1 x 25.4 x 18.0" / 408.94 x 645.16 x 457.20mm

  • Weight

    47.0lbs / 21.32kg

  • UPC Code

    0014367149692

About Peavey PV 15PM

The Peavey PV 15PM is a two-way powered monitor system engineered with a bi-amplified class D power section that drives a 15" woofer with a 2 3/8" voice coil and a 1.4" titanium diaphragm 14T compression driver with 200 watts total power. The high-speed amp topology yields the highest audio resolution and efficiency available and combined with the woofer's neodymium speaker magnet, yields extra-light weight.

Peavey PV 15PM Features

  • Both power amps have DDT speaker protection
  • 15" heavy duty woofer with 2-3/8" voice coil and neodymium magnet
  • Woofer Servo for reduced woofer distortion
  • Automatic equal loudness (Fletcher-Munson) compensation
  • 14T 1.4" titanium compression driver
  • Peak SPL up to 120 dB with music
  • Combo jack with 1/4" TRS and female XLR mic- or line-level balanced input
  • Two 1/4" phone jacks for link-out / direct-in capability
  • Bi-amplified Class D powered system with 200 W total power

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Both power amps have DDT speaker protection
  • Woofer Servo for reduced woofer distortion
  • 14T 1.4" titanium compression driver
  • Peak SPL up to 120 dB

What's in the box:

  • Peavey PV 15PM Two-Way Powered 15" Monitor Speaker System
  • Peavey 5 Year Warranty (2 Year + 3 Year with Registration)
