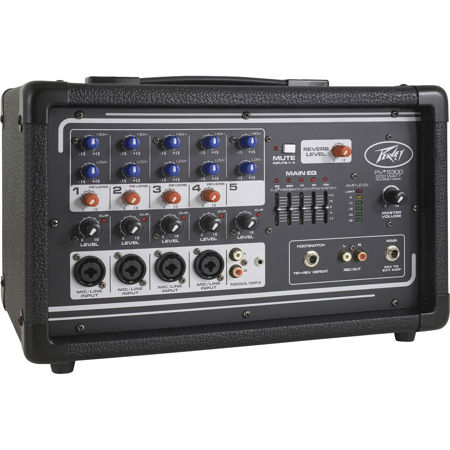

Peavey PV 5300 4-Input Channel 200 Watt Powered Mixer Amplifier, 1/4" / XLR, 50Hz to 20kHz Mic to Amp, 120V AC Power

Mic In to full power at the power amp: -48dBu
Mic In to Master Volume Nominal: -28dBu
Line In to full power at the power amp: -18dBu
Mic In to Master Volume Nominal:+3dBu

Low EQ: 80Hz +/-15dB
High EQ: 12kHz +/-15dB

Clip LEDs come on 3 dB before clipping

Mic to Main 30Hz - 20kHz (+0, -1dB)
Line to Main 20Hz - 30kHz (+0, -1dB)
Mic to Amp 50Hz - 20kHz (+0, -3dB)
Line to Amp 40Hz - 20kHz (+0, -3dB)

Main = Main line output, 22 - 22kHz filter
Amp 1 = Amplifier output, loaded at 4 Ohms , through AP AUX-0025 switching amplifier filter
All controls full down:
Main: <-95 dBu
Amp 1: <-70 dBu
Master Volume nominal:
Main: <-90 dBu
Amp 1: <-67 dBu

All controls nominal:
<0.01% at main line output, -30dBu in mic input Channel 1
<0.09% at amp 1 with output adjusted to 45Watts
All controls nominal:
<0.005% at main line output, +4dBu in line input Channel 1
<0.08% at amp 1 with output adjusted to 45Watts

80 Hz +/- -12 dB
250 Hz +/- -12 dB
1 kHz +/- -12 dB
3 kHz +/- -12 dB
10 kHz +/- -12 dB

-6dB, -12dB, -18dB, -24dB, -30dB

Limits amplifier power just before clipping. The limiter holds the amp power without clipping and can be driven up to 18dB past maximum output

Both channels loaded at 8 Ohms :
30Watts RMS per ch
60Watts Peak per ch
Both channels loaded at 4 Ohms :
50Watts RMS per ch
100Watts Peak per ch

Domestic: 120VAC 50/60Hz 40Watts Nominal
Export: 230VAC 50/60Hz 40Watts Nominal

9 x 14 x 9" / 22.86 x 35.56 x 22.86cm

14lbs / 6.35kg
