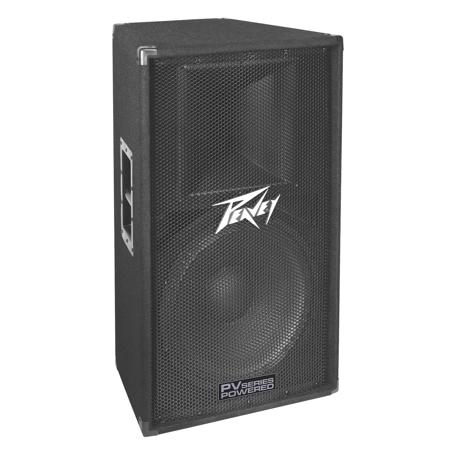

Peavey PV115D 400W Two-Way Powered 15" Active Speaker System, 66Hz-17kHz Speaker Frequency Response, 800W Peak Output Power, 95dB Sensitivity, Single

SKU: PV03602020

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Peavey PV115D Specifications

  • Speaker: Transducer Type

    15" woofer with 2.375" voice coil and 50oz magnet
    RX14 1.4" titanium diaphragm dynamic compression driver
    Constant Directivity 60 x 40 Degree horn

  • Speaker: Frequency Range

    46Hz-21kHz, -10 dB (1 meter on-axis, swept-sine in 1/2 space environment)

  • Speaker: Frequency Response

    66 Hz to 17 kHz, +/-3 dB (1 meter on-axis, swept-sine in 1/2 space environment

  • Speaker: Sensitivity

    95 dB (1W at 1m)

  • Speaker: Maximum SPL

    121 dB (peak)

  • Speaker: Coverage Angle

    60 Degree horizontal x 40 Degree vertical

  • Speaker: Crossover Frequency

    3 kHz

  • Speaker: Input Connections

    1 x XLR/TRS combo jack, balanced or unbalanced

  • Speaker: Output Connections

    1x 1/4" TS - Speaker Out, powered up to 400W at 8:Ohms
    1x 1/4" TS - Link Out, unpowered for connection to another active speaker

  • Amplifier: Output Power

    800W peak
    400 watts continuous into 4Ohms at less than 1% distortion

  • Amplifier: Input Impedances

    2.7kOhms balanced (XLR or 1/4")
    1.35kOhms unbalanced (1/4")

  • Amplifier: Filter Protection

    24 dB/octave roll-off, Infrasonic

  • Amplifier: Frequency Response

    20 Hz to 20 kHz, +0 /-3 dB

  • Amplifier: Hum and Noise

    > 90 dB below rated power

  • Amplifier: Dynamic Range

    > 14 dB, DDT

  • Amplifier: THD

    < 0.5%, typically

  • Amplifier: Damping Factor

    > 400 at 1000 Hz, 8Ohms

  • Power Requirements

    100 to 120VAC or 220 to 240VAC, 50/60 Hz

  • Fuse

    For 100 to 120 VAC:
    International fuse classification T6.3AL. In the USA, types GDC, GMC, 215, 218 and 477 cartridge-style 5 x 20 mm size fuses with a 6.3 amp 250V rating can be used.

    For 220 to 240 VAC:
    International fuse classification T3.15AL. This is a cartridge style 5 x 20 mm size time-delay fuse with a 3.15 amp 250V rating.

  • Enclosure Type

    Trapezoidal, black carpet covered 12 mm MDF, black powder-coated full length perforated steel grille

  • Mount Type

    Steel 1 3/8" pole-mount cup for stand mounting

  • Dimensions (H x W x D)

    32.25 x 18.83 x 14.75" / 819.15 x 478.28 x 374.65mm

  • Weight

    56lbs / 25.40kg

  • UPC Code

    0014367610017

About Peavey PV115D

The PV Series, one of the most enduring loudspeaker enclosures from Peavey, is now powered with class D technology. Peavey proudly debuts the PV 115D, two lightweight and portable loudspeaker enclosures, utilizing Peavey's legendary loudspeaker and class D power amp technology to deliver unparalleled performance and value. A long tradition in sound reinforcement, the PV Series enclosures are housed in durable wooden, carpet-covered enclosures with a built-in pole mount. The new PV powered enclosures deliver 400 watts of bass-pounding, distortion-free sound utilizing Peavey's DDT compression.

Peavey PV115D Features

  • 400 Watts "peak" available power
  • 800 Watts "peak" available power when connecting an additional passive 8Ohms enclosure to the speaker out
  • Two-way powered sound reinforcement enclosure
  • DDT compression/anti-clipping protection
  • Signal input via combo female XLR/ 1/4" phone jack, providing balanced operation
  • Constant directivity tweeter horn, 60 Degree X 40 Degree
  • Contour switch provides bass and treble lift
  • Heavy-duty crossover network with high frequency driver protection
  • Steel handles and protective corners
  • Full-coverage heavy-duty perforated steel grill with powder coat finish
  • RX 14 titanium diaphragm compression driver, with 1.4" titanium diaphragm
  • Steel pole mount adaptor
  • Peavey exclusive 15" heavy-duty woofer with 2 3/8" voice coil & 50 oz. magnet
  • T-Nut speaker mounting
  • Class-D powered system with up to 800 W total peak available power
  • Power amp output jack available to power another passive speaker
  • Carpet covered trapezoidal enclosure

Key Features

  • 400 Watts "peak" available power
  • Two-way powered sound reinforcement enclosure
  • DDT compression/anti-clipping protection
  • Contour switch provides bass and treble lift
  • Steel handles and protective corners
  • Steel pole mount adaptor

What's in the box:

  • Peavey PV115D 400W Two-Way Powered 15 " Active Speaker System
  • Peavey 1 Year Warranty
