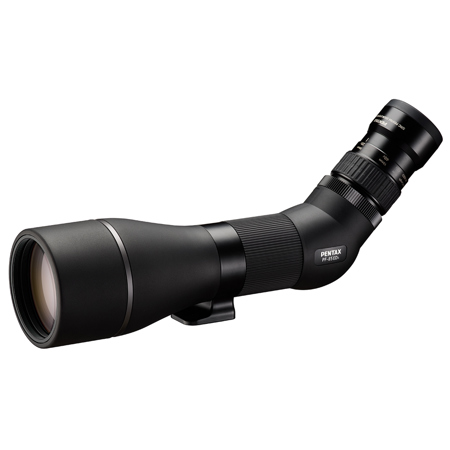

Pentax PF-85EDA 85mm Angled Waterproof Spotting Scope with 8-24mm Zoom Eyepiece

SKU: PX70971 MFR: 70971
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with this Pentax spotting scope's ED glass elements.
  • The 85mm objective lens gathers ample light for bright, clear high-resolution images.
  • Enjoy versatile viewing with the included 8-24mm zoom eyepiece for varied magnifications.
  • Waterproof construction ensures reliable performance in any weather conditions; great for birding.
  • The angled design of this spotting scope provides comfortable viewing for extended sessions.
  • Compact design makes this Pentax spotting scope easy to transport; perfect for travel.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Pentax PF-85EDA Specifications

PF-85EDA 85mm Spotting Scope

PF-85EDA 85mm Spotting Scope

Jump to...
  • Color

    Black

  • Type

    Roof prism (45 Degree tilted)

  • Lens Construction

    5 elements in 4 groups, ED glass elements with 85mm effective aperture

  • Eyepiece Ring Diameter

    1.25" (31.7mm)

  • Focus Range

    About 5m to infinity

  • Eyepiece Ring

    Collet type

  • Weather Protection

    Waterproof (equivalent to JIS Class 7 Water resistance to a depth of one meter, Nitrogen filled

  • Dimensions

    Approx. 13.7 x 4.6 x 4.0" (347 x 116.5 x 101.8mm)

  • Weight

    Scope only: Approx. 56.5 oz (1.6kg)
    Eyepiece Kit: Approx. 76 oz (2.15kg)

SMC 8-24mm Zoom Eyepiece

Jump to...
  • Type

    Zoom Eyepiece 8-24mm

  • Magnification

    20x / 60x

  • Real field of view

    1.9 / 1.0

  • Apparent Field of View

    38 / 60

  • Field of view at 1000m

    108.26' / 55.77' (33m / 17m)

  • Field of view at 1000yard

    99' / 51' (30.17m / 15.54m)

  • Exit pupil aperture

    4.3mm / 1.4mm

  • Eye relief

    18mm / 22mm

  • Distance

    from eyepiece rubber in parentheses: 5mm / 9mm

  • Attachment diameter

    1.24" (31.7mm)

  • Relative brightness

    18.1 / 2.0

  • Dimensions (Dia. x L)

    2.7 x 5.7" (69 x 144mm)

  • Weight

    1.2 lbs (550g)

  • UPC Code

    027075305335

About Pentax PF-85EDA

While compact and highly portable, the PF-85EDA 85mm Angled Waterproof Spotting Scope with 8-24mm Zoom Eyepiece is a high-performance device, perfect for nature observation, bird spotting, and even stargazing. Its advanced optics, featuring a large 85mm objective lens, provide a bright, clear field of view, allowing you to see even the finest details with excellent contrast.

This PENTAX spotting scope stands out with its ED (Extra-low Dispersion) glass optical elements, which effectively minimize chromatic aberrations. The latest multi-layer coating process drastically reduces reflectance compared to conventional models, ensuring a clear, high-contrast field of view for superior observations.

Despite its large objective lens, the PF-85EDA is designed to be compact and highly portable, thanks to its innovative roof prism optical design. This makes it an ideal companion for birdwatching, nature and astronomical observations, and even score checking in archery contests.

The eyepiece mount of this spotting scope features an American-standard 31.7mm (1.25 inches) sleeve, compatible with a range of eyepieces, including the XF series specifically designed for PENTAX spotting scopes, and the XW series perfect for astronomical observation. This allows you to choose the eyepiece that best suits your specific application.

The PF-85EDA also features a unique slanted-barrel design, with the eyepiece section slanted upward at a 45-degree angle. This design enables easy adjustment of the eye level and allows for comfortable, long-term observation in a natural, relaxed posture.

Designed with a dust-proof glass element in the eyepiece mount, this spotting scope offers outstanding waterproof performance, making it reliable even in rain or mist. Please note, however, that this model is not designed for underwater use.

The interior of the PF-85EDA is filled with nitrogen gas to prevent fogging caused by sudden temperature changes, ensuring a clear field of view in all weather conditions.

The included SMC 8-24mm Zoom Eyepiece, constructed with high-refraction, low-dispersion, multi-coated lanthanum glass optics, fits all Pentax spotting scopes for terrestrial viewing, and can also be used with telescopes with 1.25" focusers. Offering a generous 18-22mm eye relief for comfortable viewing and an apparent angle of view as wide as 60 degrees, it is built to Japanese Industrial Standards Class 4, making it weather resistant.

Pentax PF-85EDA Features

  • Bright, clear field of view
  • Compact body for excellent portability
  • Compatibility with a range of eyepieces
  • Slanted-barrel design
  • Waterproofed for use in a rain
  • Nitrogen-filled body for a clear field of view without fogging

Key Features

  • Experience stunning clarity with this Pentax spotting scope's ED glass elements.
  • The 85mm objective lens gathers ample light for bright, clear high-resolution images.
  • Enjoy versatile viewing with the included 8-24mm zoom eyepiece for varied magnifications.
  • Waterproof construction ensures reliable performance in any weather conditions; great for birding.
  • The angled design of this spotting scope provides comfortable viewing for extended sessions.
  • Compact design makes this Pentax spotting scope easy to transport; perfect for travel.

What's in the box:

  • Pentax PF-85EDA 85mm Angled Waterproof Spotting Scope
  • SMC 8-24mm Zoom Eyepiece (1.25")
  • Objective Lens Cap
  • Eye Lens Cap
  • Case
  • Pentax 25 Year Limited Warranty
