Pentax SMC 8-24mm Zoom Eyepiece (20x-60x with PF80 Spotiing Scopes)
See all Pentax items
Special

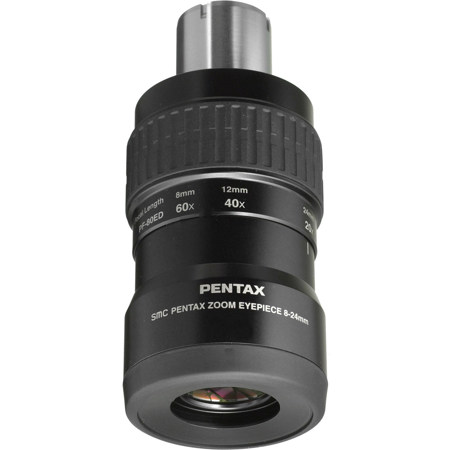

Pentax SMC 8-24mm Zoom Eyepiece (20x-60x with PF80 Spotiing Scopes)

SKU: PXZ MFR: 70509
(10)4 questions, 24 answers
$326.00
$359.00
Save: $33 (9%)
OR
$55/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enjoy versatile views with this Pentax zoom eyepiece, offering 20x-60x magnification.
  • Experience comfortable observing sessions with the eyepiece's generous 20mm eye relief.
  • The Pentax eyepiece's multi-layer coating ensures bright, high-contrast image quality.
  • Easily find your subject with a wide field of view, perfect for celestial or terrestrial viewing.
  • This 1.25" barrel eyepiece is compatible with many telescopes and spotting scopes.
  • Achieve optimal clarity and brightness with the Pentax eyepiece's excellent light transmission.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Beut O : Will it work with my 65ED?
Shopper : Has anyone tried this product with glasses? I am worried that there is insufficient eye relief to use it comfortably while wearing prescription glasses...RICHARD W : I also wear glasses and I have had no issues using this eyepiece with a Pentax 80mm scope body with a straight eyepiece mount. Hope that helps.W S : I wear progressive high-refractive lenses and don't have a problem. Like this scope... there are better but at 4X the price. Can use for .22 caliber at 200 yards.KYLE N : I have glasses, and haven't had any problems with this scope. I do have to have my glasses lense almost touching the eyepiece.MURRAY H : I routinely use this eyepiece while wearing somewhat bulky and oversize wrap around shooting glasses. While the eye relief is not the best out there among high end spotting scopes, I have found it to be acceptable, especially given the overall quality of the optic for the price paid.MITCHELL F : I have this exact eyepiece. Even though I wear glasses during the day, I do NOT use glasses when viewing through the telescope. Focusing adjusts quite fine. However, I just looked with and without my reading glasses. There was enough eye relief both ways. If I had to buy this scope and eyepiece again, I would NOT order this zoom eyepiece. It works fine at about 20-30X but above that, the image degrades horribly and is all but unusable (dull, low contrast, not fine detail. I highly suggest you get a 20 or 30X fixed lens. I love the scope, but not the zoom feature.JOHN D : I use it this eyepiece with shooting glasses and have not had any issues.DICK K : Works fine with my trifocals. I was concerned also.GREG S : I can't really say, I normally take my glasses off when looking through the eye piece. The reason is that I don't have to rely on my glasses that much, but more importantly (and I learned this from surveying) is that if you take your glasses off and then focus the eye piece, only the eye piece is in focus. This makes it easy to ignore the other eye's input to the brain, and you don't have to squint one eye closed so as to ignore it's input. This saves eye strain and makes viewing easier. If you have good eyes just use your dominate eye (there is a very simple way to figure that out) and you can train yourself to ignore the non-dominate eye. But people that use glasses benefit by having their non-dominate eye out of focus. Hope that helps but if not maybe someone has the exact answer to your question.
Shopper : "when used with the 100mm Spotting Scope" is noted in the description. I'm looking for one to use with the PF80EDA. Will this work or is there another one that I need to be looking at? Thanks, JamesDONALD K : This is probably THE best 20x-60x eyepiece made. I have the PF80EDA and the combo is great. Even the Swaro or Kowa et al are not better at twice the cost.LAURENCE D : Yes, this eyepiece works fine with the Pentax PF80 spotting scope. It gives 20x to 60x magnification with the PF80. My reading of the "26x - 78x" note is that the eyepiece is also compatible with the 100mm scope, but gives higher magnification because that scope has a longer focal length than the PF80. I have used a number of different eyepieces with my PF80 and had no compatibility issues with any of them.GREGORY D : I use the Pentax SMC Zoom Eyepiece 20x-60x with the 80mm PF80EDA scope and the combination works just fine.PAUL T : I use this eye piece on my PF80EDA and it works great. Paul TranterEDWARD K : You can use it on the PF80EDA. That is the scope/eypiece combination I use. No problems. It is the only eyepiece I have for the scope at this point.BRETT H : I use this eye piece with my PF80EDA. MARTIN A : It should work fine. I use mine with the straight 80 mm scope and I love it. I also bought the Pentax camera adapter and a K mount to Canon lens adpater to use with my Canon DSLR. It's expensive but it works well.GEORGE P : Yes, it wil fit fine.DAMON B C : I believe this is the correct one. The power will be 20x - 60x with the 80mm scope and 26x - 78x when used with the 100mm Spotting scope.

Reviews about this item

Review Summary

2013-06-24T21:00:00

Rated 5 out of 5

Amazing lense/spotting scope

I'm using this on a Pentax 80mm straight body for shooting range duty up to 1000 yrds. Amazing detail, great zoom and focus. Would recommend.

Isaac H.

2013-05-07T21:00:00

Rated 5 out of 5

Great with 80mm spotting scope

I can score targets with my 80mm ED scope and this eyepiece at 400 yards.

KYLE N.

2012-07-07T21:00:00

Rated 5 out of 5

Excellent Eyepiece

Wonderful waterproof eyepiece that offers an excellent combination of eye relief, field of view and correction. Pair it with a scope housing a large, quality objective lens and you will obtain a clear, bright and detailed view throughout this zoom optical's power range. Partners well with the Pentax PF-80ED-A spotting scope and compliments any Pentax fixed XW eyepiece collection. Outstanding value considering the cost.

D.S R.

2012-02-19T19:00:00

Rated 4 out of 5

Works well

Needed to see 22 cal. holes in targets at 200 yds, haven't used it much but appears to work well. Gerat for wildlife, could easily track flying geese 200-300 yds.

Sparky

2011-02-20T19:00:00

Rated 4 out of 5

Substantial

I was struck by how large and heavy this eyepiece is compared to those on other spotting scopes that I have used. Once I used it, I realized that the size and quality allow it to do an excellent job of giving you all the image quality that the scope it is attached to can deliver.

RICHARD W.

2011-01-09T19:00:00

Rated 5 out of 5

Big but great Zoom lens!!

I use this with a Tele Vue 85 (also bought from Adorama) and Stellarvue 105 Apo- I'm happy with it's compatibility with both. My wife and I are part-time birders with the 85 and I also love astronomy. Sure this zoom is big, but not any bigger or heavier than the new Ethos eyepieces of Tele Vue. The eye relief is excellent & you won't be squinting to see objects. I agree with the other review, you'll come away with a different point of view (no pun intended) with the Pentax zoom. It's expensive but you'll be glad you invested in it.

New T.

2008-12-26T19:00:00

Rated 4 out of 5

Pentax SMC Zoom eyepiece

Used with astronomical telescopes...APO refractors 85mm and 152mm. Spectacular performer...I have full set of regular Pentax EPs and this one get second most use (20mm tops). This even outperforms my special purpose Coronado Ha solar eyepieces in a very dramatic way. Negatives...tall and heavy. Also zoom action is a bit stiff but not a big price to pay considering its performance. If you have tried other zooms...be prepared to have all your preconceptions about zoom performance trashed!

ROBERT B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Pentax 8-24mm Zoom Eyepiece Specifications

  • Magnification

    20x-60x

  • Real Angular Field of View

    1.9 Degrees - 1 Degree

  • Field of View at 1000 Yards

    108-56 ft.

  • Exit Pupil

    4-1.3mm

  • Eye Relief

    20mm

  • Relative Brightness

    16-1.7

  • Dimensions

    5.7 x 2.7 in.

  • Weight

    19.2oz.

  • UPC Code

    027075048737

About Pentax 8-24mm Zoom Eyepiece

FEATURED REVIEWS

Excellent Eyepiece

By D.S R.

Wonderful waterproof eyepiece that offers an excellent combination of eye relief, field of view and correction. Pair it with a scope housing a large, quality objective lens and you will obtain a clear, bright and detailed view throughout this zoom optical's power range. Partners well with the Pentax PF-80ED-A spotting scope and compliments any Pentax fixed XW eyepiece collection. Outstanding value considering the cost.

Amazing lense/spotting scope

By Isaac H.

I'm using this on a Pentax 80mm straight body for shooting range duty up to 1000 yrds. Amazing detail, great zoom and focus. Would recommend.

Overcome the limitations of standard eyepieces with the SMC 8-24mm Zoom Eyepiece, a high-quality, durable, and versatile accessory designed for both terrestrial and astronomical viewing. Crafted with high-refraction, low-dispersion, multi-coated lanthanum glass optics, this innovative eyepiece ensures superior image quality and clarity.

Compatible with all Pentax spotting scopes and telescopes with 1.25" focusers, this zoom eyepiece offers a seamless viewing experience, whether you're capturing breathtaking landscapes or exploring the night sky. With a generous 18-22mm eye relief, it provides comfortable viewing even for extended periods, making it an ideal choice for photographers and nature enthusiasts alike.

The SMC 8-24mm Zoom Eyepiece boasts an apparent angle of view as wide as 60 degrees, offering a broad field of view for a more immersive viewing experience. Its reliable and robust construction adheres to the Japanese Industrial Standards Class 4, ensuring weather resistance and durability for use in various conditions.

Whether you're tracking flying geese at 200-300 yards, spotting .22 cal holes in targets at 200 yards, or simply enjoying the beauty of nature, the SMC 8-24mm Zoom Eyepiece is your reliable partner for clear, bright, and detailed views. Enhance your photography and viewing experience with this versatile and high-performing zoom eyepiece.

Pentax 8-24mm Zoom Eyepiece Features

  • 26-78x with 100mm Scope
  • 16-46x/16-48x with 65mm Scopes
  • 21-63x/20-60x/20-61x with 80mm Scopes
  • For Any Scope Using 1.25" Eyepieces
  • 20-60x Magnification
  • 38-60 Degree Apparent Angle of View
  • 18-22mm Eye Relief
  • Wide Angle
  • Waterproof & Fogproof

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enjoy versatile views with this Pentax zoom eyepiece, offering 20x-60x magnification.
  • Experience comfortable observing sessions with the eyepiece's generous 20mm eye relief.
  • The Pentax eyepiece's multi-layer coating ensures bright, high-contrast image quality.
  • Easily find your subject with a wide field of view, perfect for celestial or terrestrial viewing.
  • This 1.25" barrel eyepiece is compatible with many telescopes and spotting scopes.
  • Achieve optimal clarity and brightness with the Pentax eyepiece's excellent light transmission.

What's in the box:

  • Pentax SMC 8-24mm Zoom Eyepiece (1.25")
  • Pentax Limited 25 Year Warranty
