Pyle Pro PDWM3400 Series Professional UHF Microphone System, Body-Pack Transmitters, Headset, Lavalier Mic, 673-697.975 MHz RF Frequency Range

SKU: PYPDWM3400

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2014-03-31T21:00:00

Rated 4 out of 5

I am happy with the system... except..

This system is good and meet out church workship service. So far, it is still working well. The only issue that stops me to rate 5 stars is... the channel displays on both transmitters were dead after a week of use. That had no effect on the microphone system.. but just a little.. :-)

SY T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Pyle PDWM3400 Specifications

  • Receiver: RF Frequency Range

    673-697.975 MHz

  • Receiver: Image & Spurious Rejection

    >70 dB

  • Receiver: Receiving Sensitivity

    -105 dB

  • Receiver: Signal / Noise Ratio

    -105dB

  • Receiver: Border Upon Channel Rejection

    > 70 dB

  • Receiver: T.H.D.

    < 1%

  • Receiver: Audio Output Level

    0-300 mV

  • Receiver: Power Requirements

    13-15V DC nominal 500 mA+

  • Transmitter: RF Frequency Range

    673-697.975 MHz

  • Transmitter: RF Output

    >10 dBm

  • Transmitter: Modulation Type

    FM

  • Transmitter: Max Deviation

    +/- 40 KHz

  • Transmitter: Spurious Emission

    > 55 dBc

  • Transmitter: Nominal Current Drain

    < 40mA

  • Transmitter: Power Requirements

    2 x 1.5V AA

  • Operation Range

    Up to 164' (50m)

  • Power Supply

    110/220V

  • Dimensions

    Receiver: 6.8 x 5.3 x 1.7" (17.3 x 13.5 x 4.3cm)
    Body-Pack Transmitter: 9.25 x 1.9 x 1.9" (23.5 x 4.8 x 4.8cm)

About Pyle PDWM3400

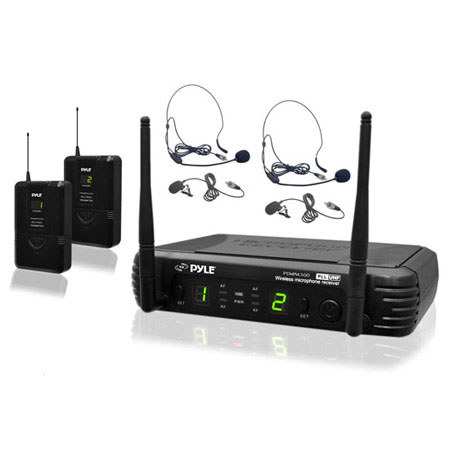

The PylePro PDWM3400 Premier Series Professional UHF Microphone System will provide you with the performance you've been looking for. System comes with 2 body-pack transmitters, 2 headset & 2 lavalier microphones. Whether used for work or play, this microphone system is easy to setup, easy to use and best of all, will give you an amazing high-quality audio experience. Choose from 8 different channels to transmit over. Enjoy hassle-free and reliable wireless sound transmission with today's latest system technology with this All-in-One package. Excellent sound production for vocals or speech and perfect for just about any event on stage, in the office or even at home. Comes with everything you need to perform. No matter what you use it for, the PylePro PREMIER Series Wireless Microphone System will take your sound and style to the next level.

Pyle PDWM3400 Features

  • Wireless Freedom: It feature UHF (Ultra-High Frequency) radios. These systems can be found the world-over & finds uses in personal, commercial, industrial & even military applications. UHF microphone systems are the preferred choice when it comes to safely and effectively transmitting audio signals
  • Premier Performance: Use the Premier Series on-stage, at the office/party. The perfect choice for relaying messages at social events, organizing the crew on the jobsite, directing, performing or entertaining. These versatile wireless microphone systems will make sure your message will be heard
  • Front Panel Control: Located on the face of the unit you will the adjustable volume control knob, RF & AF indicators, power indicator, antennas, power switch and channel frequency display
  • Selectable Frequency: PLL-Synthesized control technique - 8 selectable UHF channels
  • RF Signal Indicator: The RF (Radio Frequency) indicator LED lights when the receiver is successfully obtaining a signal from the transmitter
  • AF Signal Indicator: The AF (Audio Frequency) indicator LED is lit when the wireless system is successfully receiving an audio signal
  • Operation Range: Transmitters will work at a distance of up to 50m (164') from the receiver
  • Output Jacks: Unbalanced 1/4" Phone Plug and Balanced XLR Output connectors may be used for different external devices
  • Multiple System Use: Multiple UHF systems can be used in the same area. Performance will not be affected and will allow all messages to be relayed without interference. In order to achieve optimum system performance, each system must be set at a different frequency to allow clear transmission
  • Low Battery Warning: A red light on the transmitter signals less than one hour of battery life remains

Key Features

  • Wireless Freedom
  • Premier Performance
  • Front Panel Control
  • Selectable Frequency
  • RF Signal Indicator
  • AF Signal Indicator

What's in the box:

  • PylePro PDWM3400 2 x Body-Pack Transmitters
  • 2 x Headset
  • 2 x Lavalier Microphones
  • Receiver
  • TRS 1/4" Stereo Cable
  • AC/DC Power Adapter
  • PylePro 1 Year Warranty
