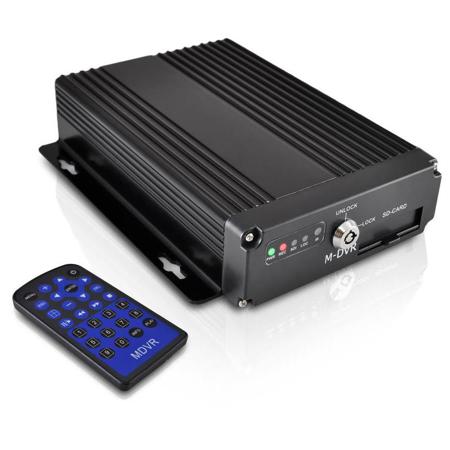

Pyle PLCMDVR15 Mobile DVR Video Surveillance Recording System, 4-Channel

SKU: PYPLCMDVR15

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Pyle PLCMDVR15 Specifications

System
  • Operation language

    English/Chinese/Traditional Chinese/other

  • Equipment parameters

    Graphical menu interface (OSD menu)

  • Password security

    Two-level management of user password and administrator password

  • Video input

    4-channel composite video input

  • Video output

    Single-channel composite video output

  • Video display

    Single-picture and quad-picture display

  • Video standard

    PAL mode, NTSC mode

  • Image compression

    H.264 Main profile, compressed resource: 75 frames D1/s (300 frames, CIF/s)

  • Audio input

    4-channel audio input

  • Audio output

    Single-channel audio output

  • Recording manner

    Synchronous recording of audio and video

Image Processing and Storage

Jump to...
  • Image format

    CIF/HD1/D1, optional

  • Video streaming standard

    ISO14496-10

  • Video bit rate

    CIF: 384Kbps (low), 512Kbps (medium), 768Kbps (high). HD1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high). D1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high).

  • Audio bit rate

    8KB/s

  • Data storage

    Support 64GB SD card/2T hard disk

  • Alarm input

    4 alarm inputs, low-level alarm for less than 4V, high-level alarm for more than 4V

  • Alarm output

    2 alarm outputs, high-level output at 12V and 5V

Communication Interfaces

Jump to...
  • RS485 interface

    Support 1 RS485 interface

  • RS232 interface

    Support 1 RS232 interface

Acceleration Sensor

Jump to...
  • Sensor interface

    Built-in acceleration sensor G-Sensor

Software Kit

Jump to...
  • Playback analysis

    Play back the video file on PC and analyze the vehicle information in the file

Software Upgrade

Jump to...
  • Upgrade file

    This equipment supports SD

MDVR Basic Electric

Jump to...
  • Power Input

    8-36V
    Input voltage between +8V and +36V; when the voltage is lower than 8V or higher than 36V for a long period of time, the equipment will shut down automatically and enter into protected mode

  • Power Output

    12V
    Output voltage 12V (+/-0.2V); maximum current 2A

  • Car Key Signal

    <=4V (Car key on)
    >=5V (Car key off)

  • Video Input Resistance

    75Ohm

  • Video Output Voltage

    2Vp-p

  • I/O Interfaces

    0-4V (Low-level alarm)
    Over 4V (high-level alarm)

  • SD Card Interface

    Support 64GB SD card

  • UPC Code

    068888759052

About Pyle PLCMDVR15

Secure Files by Locking Them Safely
The Pyle DVR is made to keep your files safe in case of an unwanted intruder trying to access them. You may lock the SD card slot, where your files will be stored, by a simple turn of the key.

Easy to Install (Connect up to 4 Cameras)
Easy to install and even simpler to use, this DVR system is ready to use right out of the box. You may connect up to four cameras at once as well as connect to a monitor with the video/audio output located in the back of the unit.

Stores Easily and Safely Anywhere
Storing your unit in a safe place is easy due to its small and compact size. Ideal places include you glove compartment, under your seat or the trunk of your car but it can be stored just about anywhere.

Heavy Duty, Durable and Portable
The DVR unit is made to be extremely durable to protect your investment and your recordings safe. The heavy duty metal housing is made for long term use and is built with durability in mind. It is also light and compact so you can take it with you to review files.

H.264 Compression
The DVR system automatically makes your files smaller and therefore a more manageable size. This is created with the built-in H.264 compression. Keep your files small and maximize your SD card storage space so you can record as much as possible.

Video System: PAL/NTSC
Made for both PAL and NTSC video systems for full compatibility. This mobile DVR surveillance recording system is made for use with systems in most countries and configurations.

USB Connection
A USB connection lets you connect a mouse to control your DVR system.

Alarm Setting
Set various alarm input switches and parameters, actions with alarm, alarm output parameters, Email setting, camera blocking alarm setting, motion detection setting, etc.

Pyle PLCMDVR15 Features

  • 4-Channel Video Surveillance System
  • Audio & Video Recording
  • H.264 video compression
  • User-Friendly Interface Control Display
  • Alarm Setting
  • Remote Control
  • Video System: PAL/NTSC

Key Features

  • 4-Channel Video Surveillance System
  • Audio & Video Recording
  • H.264 video compression
  • User-Friendly Interface Control Display
  • Alarm Setting
  • Remote Control

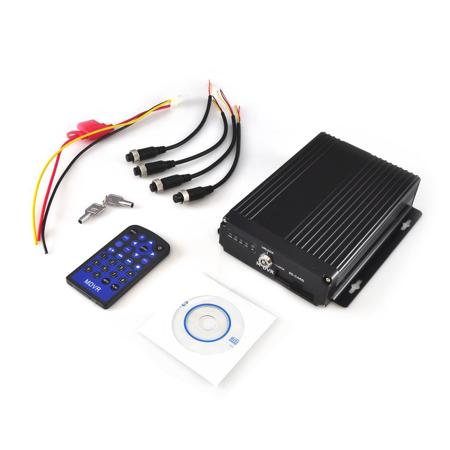

What's in the box:

  • PLCMDVR15 Mobile DVR Video Surveillance Recording System
  • Remote
  • Cables
  • Keys
  • CD-ROM
  • Pyle 1 Year Limited Warranty
