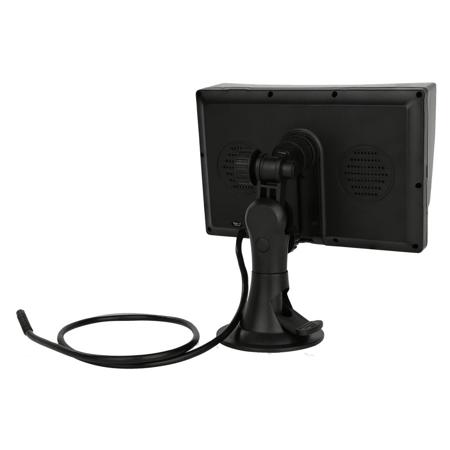

Pyle PLCMTRS77 Rear View/Backup Camera with 7" Monitor Kit, Includes 4x Cameras
See all Pyle items

Pyle PLCMTRS77 Rear View/Backup Camera with 7" Monitor Kit, Includes 4x Waterproof Cameras, Quad View Ability, Night Vision

SKU: PYPLCMTRS77
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-08-23T07:19:12

Rated 2 out of 5

Too bad. Plus the system didn't record. That's the reason I bought this.

Camera screen kept showing interference and blacking out. Couldn't stand the interference. Cameras were great, but the screen drove me crazy.

Stephen M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pyle PLCMTRS77 Specifications

Video Display Modes

Video Display Modes

Jump to...

  • Video Display Modes

    Full View: 1 Video Display - One Camera Input Source
    Dual View: 2 Video Displays - Two Camera Input Sources
    Triple View: 3 Video Displays - Three Camera Input Sources
    Quad View: 4 Video Displays - Four Camera Input Sources

Monitor

Jump to...

  • Display

    7" LCD

  • Wireless Receiver

    Built-into Display

  • Aspect Ratio

    16:9

  • System

    PAL/NTSC Auto Switching

  • Sun Shade

    Anti Glare

  • Mount

    Universal Stand Mount

  • Resolution

    800 x 480 Pixels

  • Brightness

    350 cd/m2

Camera

Jump to...

  • Image Sensor

    1/4" Color CMD

  • Resolution

    580 x 540 Pixels

  • System

    PAL/NTSC Auto Switching

  • Video Output

    1.0V pp-75 Ohm

  • Lens Angle

    170 Degree

  • Min. Illumination

    0.2 Lux

  • Auto Image Adjustment

    Yes

General

Jump to...

  • Dimensions

    Monitor (LxWxH): 6.7 x 4.3 x 0.8" (17.02 x 10.92 x 2.03cm)
    Camera (WxHxD): 3.18 x 2.95 x 2.17" (8.08 x 7.49 x 5.51cm)

  • Weight

    Camera: 9.75 lbs (4.42kg)

Other

Jump to...

  • UPC Code

    068888765657

About Pyle PLCMTRS77

• (4) Camera & Monitor Vehicle Safety Video System
• Front & Rear Vehicle Camera Mounting
• Backup/Reverse Camera Trigger
• (Automatically Activates When Placed in Reverse Gear)
• Includes Remote Control & All Necessary Cables/Wiring
• Reversing Distance Scale Line Display (for Box-Style Cams Only)
• Designed for Car/Truck use, 12/24 Volt Systems
• 4-Pin Video Connector System

Monitor
• 7" inch LCD Display
• OSD Menu with Front Panel Button Controls
• Brightness, Color, Contrast Adjustable
• DC Reverse 12-24 Volt Trigger with Auto Activation

Cameras
• Includes (4) Waterproof Cameras
• (2) Round Style and (2) Box-Style Housings
• Weatherproof Marine Grade Construction
• IP68 Rating Water & Fog Resistant
• LED Lights with IR Night Vision Illumination
• Angle Adjustable Camera Lens
• Low Lux Light Performance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Pyle 7 " Display Monitor
  • 2x Square Cameras
  • 2x Round Cameras
  • Remote Control
  • All Necessary Cables and Wiring for Installation
  • Pyle 1 Year Limited Warranty
