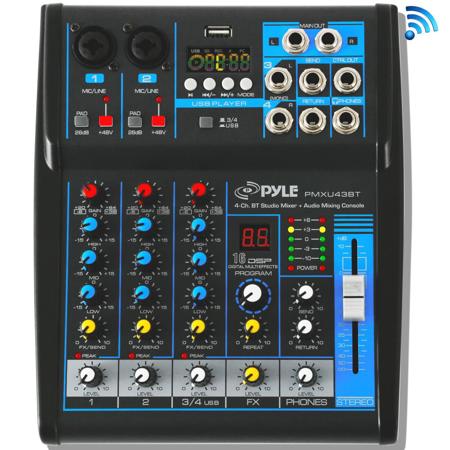

Pyle PMXU43BT 4-Channel Bluetooth 4.0 Studio Mixer and DJ Controller System
See all Pyle items

Pyle PMXU43BT 4-Channel Bluetooth 4.0 Studio Mixer and DJ Controller Audio Mixing Console System

SKU: PYPMXU43BT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Perry W : I have used this model before, and you seemed to have the best price.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Pyle PMXU43BT Specifications

  • Input Mixer Channels

    4-Channel (+ FX/Headphones)

  • Mic Input

    Sensitivity/Impedance: 1.5mV/750 Ohms

  • Input Frequency Response

    20Hz-20kHz, +/-3dB

  • Input Distortion

    0.03%, 1kHz/150mV Input

  • Channel Gain Adjustment

    +20/+64 (-6/+38)

  • High Gain

    +/-15 dB, 12kHz Frequency Shelving

  • Mid Gain

    +/-15 dB, 2.5kHz Frequency Shelving

  • Low Gain

    +/-15 dB, 80kHz Frequency Shelving

  • High/Mid/Low Adjustment

    -15/+15dB

  • Stereo Output Level Meter

    5-Segment (+6, +3, 0, -3, -10dB)

  • PAD Input Channel Adjustment

    26dB

  • Peak CLIP Level

    < 3dB

  • Phantom Power Voltage

    +48V

  • Power Supply

    100-240V (+/-15V DC Power Adapter)

  • Digital Audio File Compatibility Types

    MP3, WAV

  • Wireless Bluetooth Connectivity

    Hassle-Free Audio Streaming Ability
    Works with All of Today's Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.)
    Bluetooth Version: 4.0
    Wireless Range: 15' (4.57m)

  • Dimensions (LxWxH)

    9.3 x 7.5 x 2.6" (23.62 x 19.05 x 6.60cm)

  • Weight

    3.95 lbs (1.79kg)

  • UPC Code

    068888775670

About Pyle PMXU43BT

• DJ & Studio Console Mixer System
• Multi 4-Channel Audio Source Mixing
• Built-in Bluetooth Wireless Receiver
• FX (Analog Effects) & 16 Bit DSP processor
• Direct-to-Computer Connect & Sound Record Ability
• LCD Digital Display & Front Panel Control Center
• Rotary Adjustment Knobs & LED Indicator Lights
• MP3 Digital Audio File Compatibility
• USB Interface: MP3 Flash Drive Reader/Computer Connection
• Connect & Stream Audio from External Devices
• (2) 1/4" (L/R) MAIN Outputs
• (2) XLR/14" Combo Audio LINE/Microphone Inputs
• 1/4" Mono + Stereo Inputs
• 1/4" Send + Return Inputs
• 1/4" Headphone Jack
• Stereo Level Fader/Slider
• Output Signal Level Indication
• BUS Audio Control, Sound Routing
• PAD Channel Source Input Switch
• Independent Channel Input Audio Configuration
• Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
• +48V Phantom Power Control
• Power ON/OFF Switch
• Used for Professional Studio Applications & On-Stage Performances

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

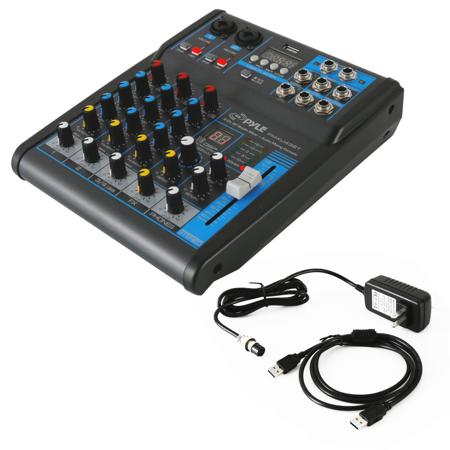

What's in the box:

  • Pyle PMXU43BT 4-Channel Bluetooth 4.0 Studio Mixer and DJ Controller Audio Mixing Console System
  • 3-Pin Power Adapter Cable
  • USB Cable
  • Pyle 1 Year Limited Warranty
