Pyle PT506BT 2-Channel Stereo Powered Amplifier Receiver with Bluetooth, 30W RMS at 8 Ohms

SKU: PYPT506BT

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Pyle PT506BT Specifications

Audio
  • RMS Power Output

    2x 30W at 8 Ohms

  • Maximum Power Output

    2x 100W at 8 Ohms

  • Frequency Response

    20 Hz to 20 kHz, +/-1.5 dB

  • Signal-to-Noise Ratio

    >=81 dB

  • Total Harmonic Distortion

    <0.1% & 1 kHz

  • Separation

    Master Channel: >=45 dB

  • Tone Control

    Bass, 100 Hz: +10 dB
    Treble, 10 kHz: +10 dB

  • Tuner Type

    FM

  • Presets

    30

Connectivity

Jump to...
  • Bluetooth Version

    4

  • Bluetooth Range

    Up to 30' (9.1m)

  • Inputs

    1x Stereo RCA
    1x 1/8" (3.5mm) Aux (Front)
    2x 1/4" (6.35mm) Microphone (Front)

  • Output

    1x RCA Subwoofer Pre-Out

  • Memory Card Slot

    1x SDXC

  • Other Connectors

    1x USB Type-A (Front)

  • Speaker Connectors

    4x Spring-Clip Pairs

  • Supported File Formats

    MP3, WMA

  • Flash Memory Capacity

    USB, SDXC: 64GB

  • Input Level and Impedance

    RCA: 230 mV, 47 kOhms
    Mic: 7 mV, 600 Ohms

General

Jump to...
  • Power Requirements

    110/230 VAC, 50/60 Hz Switchable

  • Dimensions (WxHxD)

    Approx. 12.6 x 3 x 7.5" (32 x 7.62 x 19.05cm)

  • Weight

    8.8 lbs (3.99kg)

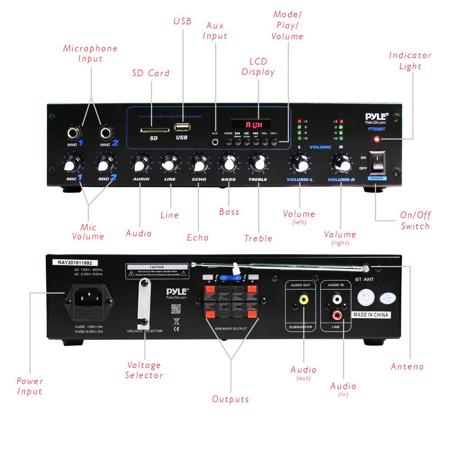

About Pyle PT506BT

• Compact Tabletop Stereo Amplifier Receiver
• Built-in Bluetooth for Wireless Audio Streaming
• Compatible with All Your Favorite Bluetooth Devices (iPhones, Androids, Smartphones, iPads, Tablets, PC, etc.)
• Luxury LCD Display with Function & ID3 TAG Information
• Aux (3.5mm) Audio Input Connector to Connect External Devices
• USB Flash Drive Reader for Digital Audio File Playback
• USB Port Doubles as Device Charge Port
• RCA (L/R) LINE Input Connector
• RCA Subwoofer Output Connector
• (4) Pairs of Push Type Speaker Output Connectors
• (2) 1/4" Microphone Input Connector Jacks
• Tone(Treble & Bass), Master (L&R), Audio, Line, MIC Echo & MIC Volume Adjustable
• Switchable Audio Input (BT/USB/SD/FM/AUX) Selection
• Built in Short Circuit and Over Voltage Protection
• Power ON/OFF Switch
• Perfect for Home /Office Appliance/Canteen/Shop

What's in the box:

  • Pyle PT506BT 2-Channel Stereo Powered Amplifier Receiver with Bluetooth
  • Power Cable
  • Pyle 1 Year Limited Warranty
