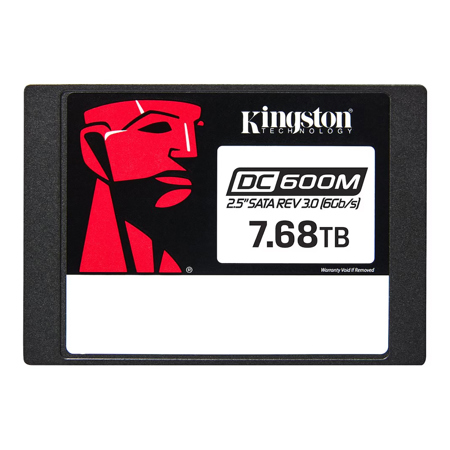

QNAP Kingston Technology DC600M Series 7.68TB Sata III 2.5" Enterprise Internal SSD

SKU: QN79700T7R68 MFR: 79700-T7R6801KS03-RS
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data access with 7.68TB SATA III SSD, perfect for demanding enterprise applications.
  • Safeguard your critical data with TCG Opal 2.0 and AES 256-bit encryption, ensuring top-tier security.
  • Achieve consistent performance with 94,000/34,000 IOPS for steady-state 4k random read/write operations.
  • Benefit from robust hardware-based power loss protection, keeping your data safe during unexpected outages.
  • Enjoy exceptional endurance with 14016TBW and 1 DWPD (5 years), ideal for intensive 24/7 workloads.
  • Monitor drive health proactively using enterprise SMART tools for reliability tracking and wear leveling.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

QNAP DC600M Specifications

  • Form factor

    2.5"

  • Interface

    SATA Rev. 3.0 (6Gb/s) - with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

  • Capacity

    7.68TB

  • NAND

    3D TLC

  • DRAM Cache

    Yes

  • Encryption

    TCG Opal 2.0, AES 256-bit encryption

  • Sequential read/write

    560MBs/530MBs

  • Steady-state 4k random read/write

    94,000/34,000 IOPS

  • Quality of service

    240/170 uSec (latency) (99.999)

  • Typical latency - read/write

    <130 micros / <70 us

  • Hot-plug capable

    Static and dynamic wear levelling

  • Enterprise SMART tools

    Reliability tracking, usage statistics, life remaining, wear levelling, temperature

  • Hardware-based power loss protection

    Yes

  • Endurance (TBW)

    14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)

  • Power consumption

    Idle: 1.30W
    Average: 1.45W
    Max read: 1.6W
    Max write: 3.6W

  • Storage temperature

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Operating temperature

    32 to 158 Degree F (0 to 70 Degree C)

  • Vibration operating

    2.17G Peak (7-800Hz)

  • Vibration non-operating

    20G peak (10-2000Hz)

  • MTBF

    2 million hours

  • UBER

    <=10 -17

  • Dimensions

    2.75 x 3.93 x 0.27" (69.9 x 100 x 7mm)

  • Weight

    3.25 oz (92.34g)

  • UPC Code

    0740617334951

About QNAP DC600M

Kingston's DC600M SSD Series provides high-performance storage solutions for data centers, system integrators and more. Delivering consistent latency and reliability, the drives were designed for mixed-use workloads, featuring 3D TLC NAND, hardware-based power loss protection and capacities of up to 7.68TB, making them ideal for enterprise applications.

Kingston's DC600M SSD is fourth-generation data center SATA 3.0, 6Gbps SSDs utilizing 3D TLC NAND intended for "mixed use" server workloads. Well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialize on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.

Designed for data center environments
Optimized to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)
Optimized performance predictability to meet service-level agreements (SLAs).

Capacities of up to 7.68TB
Upgrade and manage storage with capacities of up to 7.68TB.

QNAP DC600M Features

  • Designed for data center environments
  • On-board Power Loss Protection (PLP)
  • Consistent latency and IOPS, reliable QoS
  • Includes Acronis cloning software
  • Up to 560MB/s read, 530MB/s write

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience lightning-fast data access with 7.68TB SATA III SSD, perfect for demanding enterprise applications.
  • Safeguard your critical data with TCG Opal 2.0 and AES 256-bit encryption, ensuring top-tier security.
  • Achieve consistent performance with 94,000/34,000 IOPS for steady-state 4k random read/write operations.
  • Benefit from robust hardware-based power loss protection, keeping your data safe during unexpected outages.
  • Enjoy exceptional endurance with 14016TBW and 1 DWPD (5 years), ideal for intensive 24/7 workloads.
  • Monitor drive health proactively using enterprise SMART tools for reliability tracking and wear leveling.

What's in the box:

  • QNAP Kingston Technology DC600M Series 7.68TB Sata III 2.5" Enterprise Internal SSD
  • QNAP 5 Year Limited Warranty
