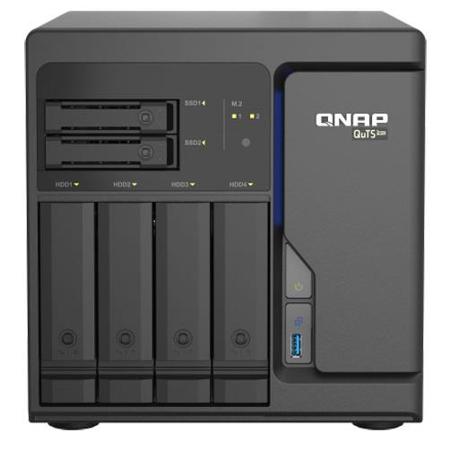

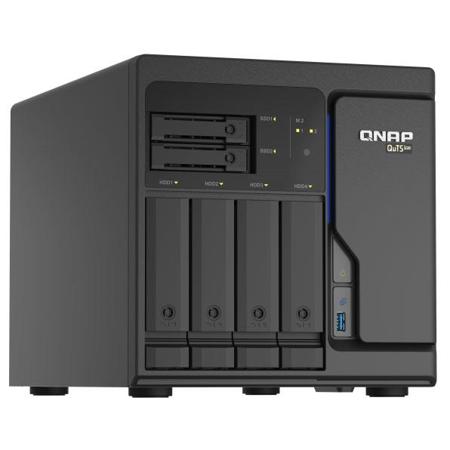

QNAP TS-h686 6-Bay QuTS hero NAS Enclosure, Intel Xeon D-1602 2-Core/4 Threads 2.5GHz, 8GB ECC RAM
SKU: QNH686D16028
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
About QNAP TS-h686
Delivering enterprise performance at SMB prices, the TS-h686 features an Intel Xeon D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h686 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h686 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.
Four 2.5GbE ports accelerate file sharing across teams and devices, virtual machine applications or multimedia transmission.
DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s bandwidth) enable SSD caching to boost random read/write performance.
Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.
QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.
Powerful Intel Xeon D processor with up to 128 GB DDR4 ECC memory
The TS-h686 uses an Intel Xeon D-1600 series processor and DDR4 ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss. Supporting up to 128 GB RAM to cope with higher workloads, the TS-h686 provides a high-performance and reliable NAS solution for demanding business IT environments.
Set SSD caching to boost IOPS with M.2 NVMe SSD
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-h686 comes with two 2.5-inch SSD drive bays and two M.2 NVMe Gen3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance and reduce storage volume latency. This is especially perfect for databases and virtual machine applications. Without occupying any 3.5-inch drive bays, the TS-h686 allows you to maximize both your storage capacity and performance.
Quad-port 2.5GbE meets today's high-bandwidth demands
Featuring four native 2.5GbE RJ45 LAN ports (backwards compatible with 1G/100M), the TS-h686 allows you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The support of Port Trunking and failover further satisfies bandwidth and reliability demanding applications including virtualization, large file transfers, high-speed backup/restoration, and any real-time application. QNAP also offers numerous options of managed and unmanaged 10GbE/2.5GbE switches, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Hybrid Storage with high I/O expandability
2x 2.5-inch SSD bays
Offers flexible configuration for cache acceleration.
4x 3.5-inch drive bays
Supports SATA 6 Gb/s drives; lockable trays.
2x PCIe Gen 3 x8 expansion slots
Supports 5GbE/ 10GbE/ 25GbE/ 40GbE network expansion cards, QM2 cards, graphics cards, or QXP PCIe SATA expansion cards for greater application potential.
4x 2.5GbE LAN ports
Supports Port Trunking and failover.
Smart cooling
The system fan automatically adjusts its speed based on system temperatures.
2x USB 3.2 Gen 1 ports
Delivers transfer speeds up to 5 Gbps.
2x M.2 SSD slots
Supports NVMe Gen 3 x4 M.2 SSD with the 2280/22110 form factors for enabling cache acceleration.
DDR4 ECC memory
Four DDR4 Long-DIMM slots supporting up to 128 GB RAM.
Intel Xeon D processor
Intel Xeon D series processor with multi-core computing power and up to 3.2 GHz speeds.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Data integrity is key
QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many Times (WORM) is also supported by QuTS hero.
RAID Z enables robust data protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.
Multi-level cache technology with both read and write
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions are simultaneously supported to boost performance.
App Center ecosystem extends NAS functionality
Apps for backup/sync, business, content management, productivity, and more features can be installed on demand to expand the application potential of the TS-h686.
Inline data deduplication, compression, and compaction drives big data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h686 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
The TS-h686 also supports snapshots and remote backup that help organizations accomplish routine backup tasks cost-effectively and efficiently.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h686 to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows, Linux, UNIX, and Android virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import and export containers, and create abundant microservices.
PCIe expansion for upgrading 10GbE transmission or enabling GPGPU computing
The TS-h686 features two PCIe Gen 3 x8 slots (each slot provides up to 64 Gb/s bandwidth) and supports installing expansion cards to enable additional functions and greater application potential.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h686 perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h686 using M.2 SSD slots (M.2 SSDs purchased separately), organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
Switch operating systems to upgrade current storage
The TS-h686 can also switch to using QTS - QNAP's standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h686 to upgrade your storage infrastructure.
