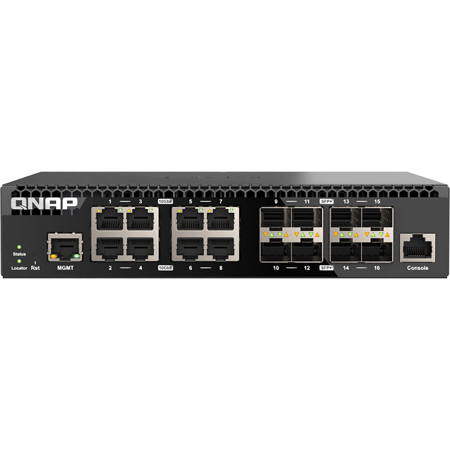

QNAP QSW-M3216R-8S8T 16-Port Half-Width Rackmount Managed Switch with 8x 10GbE SFP+/RJ45 Port

Half-width design, two models in 1U
With a half-width rackmount design, a QSW-M3216R-8S8T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-3216R-8S8T) for efficient physical space utilization and tidy cabling.

Note: The optional SP-EAR-QSW2FOR1-01 rackmount kit is required if two half-width rackmount switches are installed

Flexible deployment with sixteen 10GbE SFP+ and RJ45 ports
The QSW-M3216R-8S8T provides eight 10GbE SFP+ ports and eight 10GbE RJ45 ports for connecting various devices and enabling high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6 (or better) cabling.

Note:10GbE SFP+ ports are backward compatible with 1GbE SFP; the 10GbE RJ45 ports support up to five speeds (10G/5G/2.5G/1G/100M)

Dependable performance with effective heat dissipation
With a compact metal body that optimizes cooling performance, the QSW-M3216R-8S8T provides stable and reliable operations even when under full load. The front-panel LEDs also assist in viewing the current system status.

QSS: Graphical UI for management over all network devices
QNAP Switch System (QSS) features an easy-to-use web interface, allowing you to easily perform various L2 network management functions.

Overview dashboard
View real-time system information, port connection status, and port traffic.

Uncompromising AV-over-IP experience
The AV-over-IP Wizard guides you through configuring IGMP Snooping and VLAN to route AV traffic for applications like video walls and large outdoor display walls. Combined with QoS priority management, it delivers low-latency and high-resolution AVoIP experiences.

SNMP
Enable SNMPv2c, v3 login or public SNMP MIB to collect and organize information about all SNMP-enabled devices on IP networks.

Online firmware check and update
Keep your QNAP switch secure with one-click firmware updates.

Cloud-based control platform for efficient management of multiple switches
No need to purchase additional hardware or software. With the AMIZcloud management platform, you can easily monitor switches distributed across various locations and instantly access device information.

Optimize network performance with bandwidth and packet control
The QSW-M3216R-8S8T offers practical bandwidth and packet control features that effectively allocate bandwidth and manage network segmentation. This significantly enhances network performance for administrators.

LACP
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.

QoS
Quality of Service (QoS) provides detailed traffic control (Queue Scheduling) and priority management (Strict Policy), improving network performance and ensuring the real-time delivery of critical traffic.

IGMP Snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

DDM
The QSW-M3216R-8S8T fiber ports have optical transceivers and Digital Diagnostic Monitoring (DDM) functionality, which offers real-time monitoring and reporting of various parameters related to fiber optic connections, such as optical power, temperature, voltage, and transceiver status.

Port Mirroring
Port Mirroring sends a copy of network packets seen on one switch port to a network monitoring connection on another switch port, greatly assisting troubleshooting.

Powerful security and system functions
The QSW-M3216R-8S8T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL
Access Control List (ACL) enhances security by filtering incoming and outgoing packet data through custom rules. ACL Mirroring is also supported to allow for copying traffic that matches specific ACL rules and forwarding it to designated monitoring or analysis devices.

LLDP
Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.

RSTP
Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.

Flow Control
Balances traffic between a sender and a receiver to avoid network congestion.

Fully embrace high-speed networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A switch that supports 2.5GbE/10GbE
QNAP 2.5GbE/10GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

A fast NAS
A QNAP NAS with multiple 2.5GbE/10GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Upgrade desktops and servers
Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add a 5GbE/10GbE port to laptops
Use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter to connect laptops and upgrade-limited computers to 5G/2.5G/1G/100M networks.
