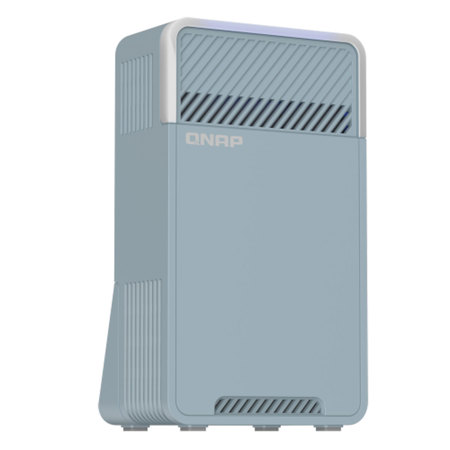

QNAP QMiro-201W AC2200 Next-Generation Tri-Band Mesh Wi-Fi SD-WAN Router

SKU: QNMIRO201WUS

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

QNAP QMiro-201W Specifications

Hardware

Hardware

Jump to...
  • Number of Ethernet Ports

    2

  • CPU

    Qualcomm IPQ4019, Quad core ARM Cortex A7@716.8MHz

  • 1GbE (RJ45)

    2

  • Memory

    512MB DDR3

  • Flash

    4MB SPI NOR Flash
    4GB eMMC

  • Antenna

    4 Internal Antennas

  • USB 3.2 Gen 1 port

    1

  • Bluetooth

    5

  • Button

    Reset, WPS

  • Power

    12V DC

  • Power consumption

    24W

  • Dimensions

    68 x 100 x 175.5mm

  • Weight

    0.44Kg

  • Operating Temperature

    0 Degree C - +40 Degree C

  • Operating Humidity

    5% to 95% non-condensing

  • Certifications

    JATE / CE / FCC / BSMI / NCC / IC / SRRC / VCCI / RCM / OFCA

  • Wireless Standard

    802.11a/b/g/n/ac

  • Wireless Speed Rating

    AC2200

  • Wireless Speed 2.4 GHz

    2.4G (400Mbps): 2x2 (40MHz)

  • Wireless Speed 5 GHz

    5G (1734Mbps): 2x2 (80MHz)

  • Frequency Band 2.4 GHz

    Yes

  • Frequency Band 5 GHZ

    Yes

  • Wireless Bandwidth

    20/40/80MHz

  • Transmit Output Power

    Depends on country code

  • Antenna Type

    2.4G: 2 Internal 3.0dBi antennas
    5G: 2 Internal 4.6dBi antennas

  • Antenna Gain 2.4 GHz

    3.0dBi

  • Antenna Gain 5 GHz

    4.6dBi

  • Wi-Fi 5 (802.11ac)

    Yes

  • Wi-Fi Mesh

    Yes (with Tri-Band)

  • SD-WAN

    Yes

Software

Jump to...
  • System Status and Management

    Device connection status
    Device health status
    WAN status
    Wireless status
    Firmware schedule management

  • Operation Modes

    Wireless router mode
    Access point (AP) mode

  • Wired Network Management

    WAN port x1
    DHCP client
    PPPoE
    Static IP
    LAN port x 1
    DHCP server
    Reserved IP table

  • Wireless Network Management

    Supports IEEE 802.11ac (Wi-Fi 5)
    Supports MU-MIMO
    Supports band steering for dual-band (2.4GHz and 5GHz bandwidth) access points
    Transmission power (high, middle, and low)
    20/40/80 MHz bandwidth
    RTS/CTS (Request to Send/Clear to Send) function
    Dual-band 2.4G and 5G band settings
    Guest wireless
    Smart connect
    SSID and password configuration
    Wireless scheduler
    Wireless (Protected Setup (WPS)

  • WiFi Mesh

    Support up to 4 device(1 master 3 satellites per mesh system)
    Tri-band
    Add/delete node

  • IPv4 routing management

    Direct route
    Static route

  • NAT

    Port forwarding and Network Address Translation (NAT)
    Support FTP ALG, PPTP ALG and SIP ALG

  • QVPN

    Secure remote access with L2TP, OpenVPN and QBelt (QNAP proprietary) protocol
    Client IP pool configuration
    VPN client management
    Connection logs
    Maximum tunnel scale: 30

  • Parental Controls

    Website filter
    Safe search
    Youtube
    Google
    Bing

  • System Setting

    Restart, Reset, Backup, Audio Alert
    Local account, QNAP ID, Remote management
    Even Logs

  • Firmware

    Firmware update
    Live update
    Schedule update
    Manual update
    Display mesh nodes firmware status

  • UPC Code

    885022020256

About QNAP QMiro-201W

Enhance your remote working experience with the QNAP QMiro-201W AC2200 Next-Generation Tri-Band Mesh Wi-Fi SD-WAN Router. Designed to support the evolving needs of modern businesses, this advanced router offers both a high-speed in-premises solution and a remote VPN that's easily accessible by users in multiple locations.

The QMiro-201W is equipped with tri-band Mesh Wi-Fi 5 and an enterprise-grade SD-WAN VPN solution, enabling seamless multi-site VPN deployment via the QuWAN Orchestrator. This makes it an ideal choice for building next-generation networks.

Experience smooth and stable Wi-Fi connections with the router's tri-band Wi-Fi that operates via 2.4GHz, 5GHz, and dedicated Mesh 5GHz frequencies. The QMiro-201W also supports Mesh Wi-Fi Handover, ensuring wide-range connectivity and automatic connection to the router with the strongest Wi-Fi signal for multiple users.

With its dedicated Mesh 5GHz frequency, the QMiro-201W provides high-bandwidth connections between Mesh Wi-Fi routers. Unlike conventional dual-band routers, this device ensures uninterrupted and stable Wi-Fi connections by not sharing its 5GHz band between Wi-Fi clients and Mesh Wi-Fi routers.

The QMiro-201W features the user-friendly QuRouter OS, offering a web-based GUI and an easy-to-understand dashboard for efficient network management. This OS also supports wireless router or AP mode configuration, allowing the dispatching or receiving of an IP address as a master router.

QNAP QuWAN, a SD-WAN solution, is included to facilitate automatic Mesh VPN topology from corporate networks to personal home routers. This feature ensures secure and convenient connectivity for remote workers.

The QMiro-201W also offers parental controls to create a safe internet environment for your family. You can block inappropriate sites, set up screen time, and filter keywords on search engines.

Designed with style and functionality in mind, the QMiro-201W features a stylish Morandi blue color and a near-silent fanless cooling system. The QuRouter mobile app allows you to monitor your home mesh network, including connection status, network usage, and the number of connected users.

With the QMiro-201W, you can build a flexible home Wi-Fi environment and enjoy a seamless wireless experience. Whether you live in a small apartment or a large house, this router can cover up to 2100 square feet or 195 square meters with every new connection.

QNAP QMiro-201W Features

  • Connect your Home with High-Coverage Tri-Band Mesh Wi-Fi
  • Dedicated Tri-band Mesh Wi-Fi for Smooth Connections
  • QuRouter OS: User-Friendly Router Management
  • Convenient connectivity for remote workers
  • Create a family-friendly internet environment
  • Protect yourself from breaches and intrusion
  • Stylish Morandi blue and fanless design for homes
  • Control your Wi-Fi with a convenient mobile app

Product Documents

User Manual

Key Features

  • Next-generation tri-band Mesh Wi-Fi SD-WAN router, ideal for remote working environments
  • Supports 2.4GHz, 5GHz, and dedicated Mesh 5GHz frequencies for stable Wi-Fi connections
  • Features QuWAN Orchestrator for seamless multi-site VPN deployment
  • User-friendly QuRouter OS for efficient network management and configuration
  • Includes parental controls for a safe internet environment and QNAP QuWAN for secure connectivity
  • Stylish Morandi blue design with near-silent fanless cooling system for modern digital homes

What's in the box:

  • QMiro-201W AC2200 Next-Generation Tri-Band Mesh Wi-Fi SD-WAN Router
  • Ethernet Cable
  • Power Cord
  • AC Adapter
  • Quick Installation Guide
  • Qnap 2 Year Limited Warranty
