Qnap QM2 Dual NVMe M.2 2280 PCIe SSD, One 10GBASE-T 10GbE Network Expansion Card
See all Qnap items

QNAP QM2 Dual NVMe M.2 2280 PCIe SSD and Single 10GBASE-T 10GbE Network Expansion Card (PCIe Gen2 x4)

SKU: QNQM22P10G1T

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PHILIP B : If you only have 1 PCIe slot, then this is your best choice to get 10GbE and NVMe SSD combined. Though I have a major problem how they market it. this is PCIe 2.0 x4 slot card, which is 4000MB/s on bandwidth on BUS. Yet a fast NVMe SSD cards can run 3500MB/s each, stripe them and you can exceed PCIe BUS speed entirely. Not to mention the 10GbE gives you another 400-450MB/s of bandwidth alone. This card really needs PCIe x8 OR PCIe 3.0 to truely use full bandwidth.

Reviews about this item

Review Summary

2022-09-22T08:56:09

Rated 1 out of 5

Bad Product, Bad Manufacturer, Bad Retail Company

It never showed up.

CONNOR M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

QNAP QM2 Expansion Card Specifications

  • Interface

    PCI Express 2.0 x4

  • Supported M.2 SSD Types

    2x M.2 2280 PCIe SSD

  • Operating System

    QTS 4.3.3 (or later)

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Compatible NAS Models

    TS-531P, TS-531X, TS-831X, TS-x31XU, TS-1635, TS-x53B, TS-563, TVS-x63, TS-x63U, TS-x70, TS-x70U, TVS-x71, TVS-x71U, TVS-x73, TVS-x82(T)
    Note: TVS-x82(T) only supports the System Zone PCIe slot

  • 10GbE Support

    1x 10GBASE-T 10GbE LAN support (backwards compatible with 5GbE/2.5GbE/1GbE/100MbE)

  • Dimensions (L x W x H)

    6.29 x 3.56 x 0.81" (159.85 x 90.3 x 20.6mm) Half-Height, Half-Length (HHHL), low-profile PCIe card

  • UPC Code

    885022013364

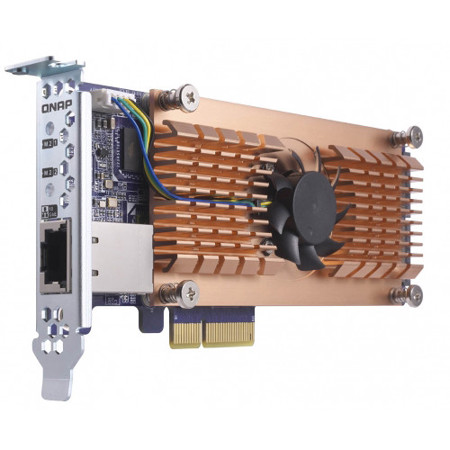

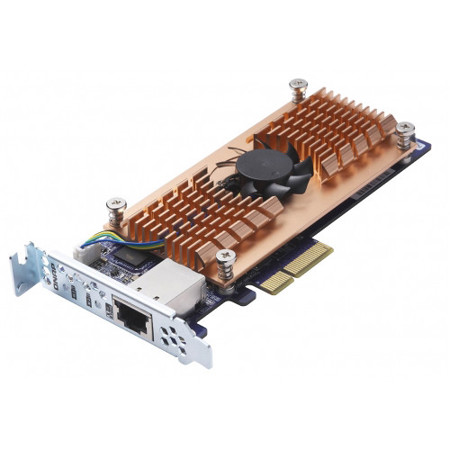

About QNAP QM2 Expansion Card

The QM2 is a PCIe card that adds support for M.2 SSDs and 10GbE/5GbE/2.5GbE/ 100MbE RJ45 connectivity (optional) to a QNAP NAS, effectively enhancing NAS storage performance and data transmission capabilities. Up to two M.2 22110/2280 SSDs can be installed to create a RAID 1 or RAID 0 caching pool to boost performance, or a storage volume in a tiered storage pool to optimize storage efficiency with Qtier auto-tiering.

10GbE Connectivity
Implementing 10GbE network infrastructure is becoming increasingly affordable, with the higher bandwidth also becoming essential for everyday IOPS-demanding applications. With 10GBASE-T connectivity, the QM2-2S10G1T and QM2-2P10G1T are cost-effective solutions for adding 10GbE connectivity to compatible QNAP NAS, saving time and money for users when upgrading their network infrastructure.

M.2 SSD status indicators
Monitor M.2 SSD status

M.2 SSD thermal sensor
Real-time M.2 SSD temperature monitoring

Dual M.2 slots
Up to two M.2 22110/2280 SSDs (M.2 SSDs are not included)

Adjustable screws for varied SSD thickness
Can fit both single-sided and dual-sided SSDs

Smart and quiet fan
Auto-adjust based on SSD and overall temperature

Custom-made aluminum-alloy cooling module
Prevent overheating and thermal throttling to ensure high SSD performance

10GbE 10GBASE-T port
Easy to install and backwards compatible with 5GbE/2.5GbE/1GbE/100MbE

QNAP QM2 Expansion Card Features

  • M.2 SSD status indicators
  • M.2 SSD thermal sensor
  • Dual M.2 slots
  • Adjustable screws for varied SSD thickness
  • Smart and quiet fan
  • Custom-made aluminum-alloy cooling module
  • 10GbE 10GBASE-T port

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • M.2 SSD status indicators
  • M.2 SSD thermal sensor
  • Dual M.2 slots
  • Adjustable screws for varied SSD thickness
  • Smart and quiet fan
  • Custom-made aluminum-alloy cooling module

What's in the box:

  • QM2 with Cooling Module Low-Profile Bracket (Preinstalled)
  • Full-Height Bracket
  • Low-Profile Flat Bracket
  • Thermal Pad Kit
  • Rubber Pad (Black) Kit
  • M.2 SSD Screw Pack
  • Qnap 6 Month Limited Warranty
