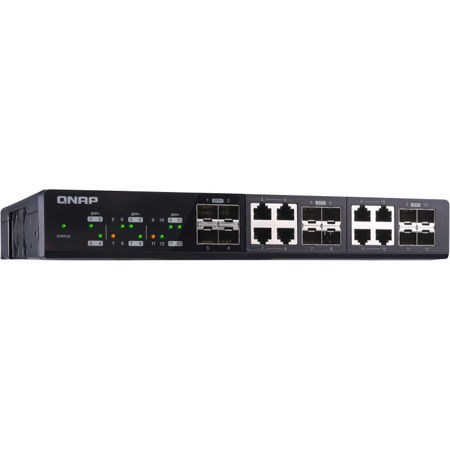

QNAP QSW-1208-8C 12-Port Unmanaged 10GbE Switch

SKU: QNQSW1288CUS

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?THE C : We're building a NAS video editing solution and needed 10gb throughput for 3 stations.CLINTON+LAM C : To pair it up with my Qnap 10gb equipped NASDavid S : Good price and good reviews.

Reviews about this item

Review Summary

2019-12-25T10:25:09

Rated 5 out of 5

Nice 10 gig switch

Fans always run, but are quiet, almost inaudible. Uses 16 watts without anything plugged in. Uses 18 watts with one 10 gig idle connection. Built very sturdy and is pretty heavy for its size. I would recommend this switch if your in the market for 10 gig.

David S.

2019-12-23T07:29:28

Rated 5 out of 5

Fast and great quality

Purchased this for my home network to add 10g speed for my photo and video workflow. I have 2 QNAP NAS devices and my PC’s hooked up this to perform backups, editing over the network, etc... definitely a big upgrade to speed and my overall workflow.

Brenten Y.

2019-12-11T14:50:36

Rated 5 out of 5

Super fast transfer speed for home networking!

Good upgrade to home networking. Super fast transfer speed between my QNAP NAS gigs!

Qian Z.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

QNAP QSW-1208-8C Specifications

  • 10G SFP+ (fiber) ports

    4

  • 10G SFP+ (fiber) & RJ-45 (copper) ports

    Combo: 8

  • Form Factor

    Desktop/rackmount

  • Switching capacity

    240 Gbps

  • MAC address caching capacity

    27K

  • Number of priority queues

    8

  • Jumbo frame support

    Up to 9K packet size

  • Power Supply Unit

    100 - 240 V AC, 50 -60 Hz, max. 2.5 A

  • Power Consumption (W)

    All ports used, line-rate traffic: 49 W
    Link-down standby: 21W

  • Fan

    2 low-noise smart fans

  • Sound Level

    @ 25 Degree C: 18.7 dB(A)

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Relative Humidity

    10 - 85%, non-condensing

  • Electromagnetic compliance

    Class A

  • LED Indicators

    Per switch: Power
    Per port: Speed, link, activity

  • Supported standards

    IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.1p Class of Service
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    IEEE 802.3an 10GBASE-T
    IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable
    IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
    IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM)
    IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Dimensions (H x W x D)

    1.69 x 11.22 x 9.17" (43 x 285 x 233mm)

  • Weight

    4.73 lb (2.15kg)

  • UPC Code

    885022013555

About QNAP QSW-1208-8C

FEATURED REVIEWS

Super fast transfer speed for home networking!

By Qian Z.

Good upgrade to home networking. Super fast transfer speed between my QNAP NAS gigs!

Nice 10 gig switch

By David S.

Fans always run, but are quiet, almost inaudible. Uses 16 watts without anything plugged in. Uses 18 watts with one 10 gig idle connection. Built very sturdy and is pretty heavy for its size. I would recommend this switch if your in the market for 10 gig.

The QNAP QSW-1208-8C is a 12-port 10GbE unmanaged switch, allowing you to instantly upgrade your network environment at a cost-effective price. The QSW-1208-8C supports 10GBASE-T and NBASE-T standards, allowing you to take advantage of higher network speeds with your existing Cat 5e and 6a cables. Both SFP+ (fiber) and RJ45 (copper) ports are available (with 8 combo ports) for servicing a range of network needs. Compliant with IEEE 802.3az (Energy Efficient Ethernet, EEE), the QSW-1208-8C is energy efficient as well. With high performance, low latency and superb functionality, the QSW-1208-8C is the ideal choice for upgrading your home or business network to support 10GbE connections.

Faster speeds using existing cables with 10GBASE-T & NBASE-T
The QSW-1208-8C is compatible with 10GbE and NBASE-T technologies to provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfers. The QSW-1208-8C is also backwards compatible to provide connectivity with legacy devices.

Flexible deployment with eight combo ports
The 12-port QSW-1208-8C switch offers four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces to the same switch. With RJ45 interfaces, 10 GbE is supported with Cat 6a (or above) cables. Alternatively, direct attach copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-1208-8C is 240 Gbps, guaranteeing the full potential of each port.

Note: For the speed of 10 Gbps, if the distance between the switch and the device is shorter than 45 meters (148 feet), a Cat 6 cable can be used.

Near-silent and energy saving
With its smart cooling system, the QSW-1208-8C works quietly to ensure high-speed network performance without generating distracting background noise. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting link speeds and activities and adjusting accordingly, the QSW-1208-8C provides energy savings of up to 50% to minimize lifetime operational costs.

Versatile installation and sleek appearance
The QSW-1208-8C features a sleek modern design that blends in with existing digital homes and offices. A Rackmount Kit is also included at no extra cost for installing the QSW-1208-8C in a rack.

QNAP QSW-1208-8C Features

  • With NBASE-T support, existing cables can be used. Backwards compatibility is provided for legacy devices
  • With a combination of SFP+ (fiber) and RJ45 (copper) ports, most devices can take advantage of 10GbE connectivity provided by the QSW-1208-8C
  • IEEE 802.3az (EEE) helps to reduce power consumption for low-speed and inactive connections

Key Features

  • IEEE 802.3az (EEE) helps to reduce power consumption for low-speed and inactive connections

What's in the box:

  • QSW-1208-8C 12-Port Unmanaged 10GbE Switch
  • Power Cord
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
  • Qnap 2 Year Limited Warranty
