QNAP REXP-1620U-RP 12Gbps SAS RAID Expansion Enclosure for TVS-EC2480U-SAS-RP, TS-EC2480U-RP NAS Servers

Simple & flexible storage expansion for QNAP NAS
The REXP-1620U-RP expansion enclosure is designed for expanding the storage space on a QNAP NAS by connecting multiple expansion enclosures via high-speed mini SAS cables. Featuring a 12Gbps SAS interface on the chassis, the REXP-1620U-RP ensures fast data pass-through from 12Gbps SAS-enabled QNAP NAS even when using 6Gbps hard drives. This is especially useful for large data applications that require high performance interconnection, such as video surveillance, archiving large data and TV broadcast storage.

• Plug and use, seamless capacity expansion
• Missing mode protection
• High density, high efficiency and high scalability
• Flexible management with the QTS Storage Manager
• Backup storage for the QNAP NAS
• Supports SAS 12 Gbps, SAS/SATA 6 Gbps HDD and SSD
• Backward compatible with a 6 Gbps SAS-enabled NAS / REXP expansion unit and 6 Gbps SAS HBA by using the 12Gb/s SAS for 6Gb/s SAS cable

Plug and use, seamless capacity expansion
Simply connect a REXP-1620U-RP to a QNAP NAS and power it on. The QNAP NAS will detect the hard drives in the REXP-1620U-RP as newly-installed local drives. You can seamlessly expand and manage the NAS capacity by using the powerful QTS Storage Manager.

Missing mode protection
When the disconnection of a RAID expansion enclosure is detected, the NAS blocks IO access to protect data. The system can recover from missing mode to its normal state with the data staying intact.

High density, high efficiency and highly scalable

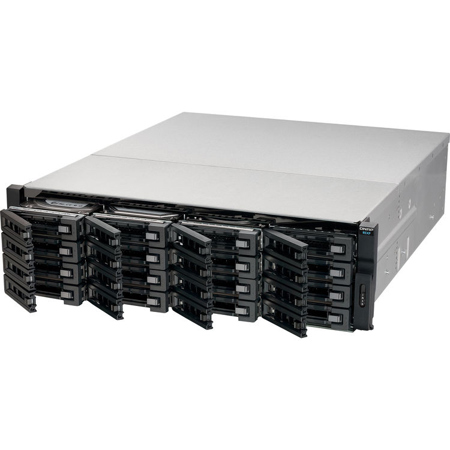

The REXP-1620U-RP supports 16 hard drives and 128TB raw capacity in 3U rack space. The REXP-1620U-RP has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chaining respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure), with each supporting 12Gbps full duplex speed. The solution delivers unprecedented performance of up to 48Gbps per host connection.

Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1620U-RP management. IT administrators can easily monitor the health of the REXP-1620U-RP and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators in quick maintenance.

An excellent backup solution for the QNAP NAS
In addition to expanding an existing volume, IT administrators can use the REXP-1620U-RP as a budget-friendly external storage to perform speedy and secure backup tasks for a QNAP NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up NAS data to the REXP-1620U-RP on a real time or scheduled basis.

Flexible drive type and capacity
The REXP-1620U-RP offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission-critical applications, low-cost but high-capacity SATA HDDs for large data archiving or high-speed and high-stability SSDs for I/O-intensive operations.
