QNAP TL-R1620SEP-RP 16-Bay JBOD 3U Rackmount SAS 12Gb/s Storage Expansion Enclosure, Diskless

SKU: QNTLR1620SEP MFR: TL-R1620SEP-RP-US
Earn VIP Reward Points

Key Features

  • Expand your QNAP NAS storage: This 16-bay JBOD enclosure boosts capacity easily.
  • Experience fast performance with SAS 12Gb/s: Ideal for data-intensive applications.
  • Ensure data security: Supports RAID configurations for reliable storage protection.
  • Enjoy remote access to your files: Seamless integration with QNAP's OS for easy access.
  • Scale your storage as needed: Perfect for growing businesses needing flexible storage.
  • Set up quickly with hot-swappable drives: Minimize downtime and maximize efficiency.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

QNAP TL-R1620SEP-RP Specifications

  • JBOD Connection Interface

    SAS

  • Drive Bay

    16 x 3.5"

  • Drive Compatibility

    3.5" SAS 12Gb/s, 6Gb/s hard disk drives
    3.5" SATA 6Gb/s, 3Gb/s hard disk drives
    2.5" SATA 6Gb/s, 3Gb/s solid state drives

  • Hot-swappable

    Yes

  • Form Factor

    3U Short Depth Rackmount

  • Host Interface

    4x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644)

  • LED Indicators

    Front panel: HDD 1-16, Power, Status, Link, Fan error
    Rear panel: SAS connector, Enclosure ID

  • Buttons

    Power

  • Operating Temperature

    32 Degree F - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 158 Degree F (-20 - 70 Degree C)

  • Relative Humidity

    5-95% RH non-condensing, wet bulb: 27 Degree C (80.6 Degree F)

  • Power Supply Unit

    550W(x2), 100-240V

  • Power Consumption

    207.13 W (Operating Mode, Typical)

  • Fan

    3 x 80mm, 12VDC

  • System Warning

    Buzzer

  • QTS / QuTS hero

    Yes

  • Windows

    Yes

  • Supports JBOD Cascading

    Yes

  • Supports Expanding NAS Storage Pools

    Yes

  • Supports Multi-path

    Yes

  • Management

    Managed via QNAP QTS / QuTS hero OS:
    Supports Disk S.M.A.R.T. information
    RAID expansion enclosure identifier
    Locate RAID expansion enclosures
    Locate hard disks on RAID expansion enclosure
    Smart fan control by detecting system and hard drive temperature
    In-band SAS firmware update

  • Dimensions (H x W x D)

    5.17 x 18.98 x 16.74" (13.14 x 48.27 x 42.47cm)

  • Weight

    28.97 lbs (13.14kg)

  • UPC Code

    885022020614

About QNAP TL-R1620SEP-RP

- For NAS -
The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 4.6PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. With four mini SAS HD SFF-8644 Wide Ports, the TL-R1620Sep-RP delivers up to 192Gbps transfer speed when connected to a single host. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation.

Supported NAS System
Expand the storage space of a QTS/QuTS hero NAS, supports up to 4.6PB raw capacity by daisy-chaining up to 16 expansion enclosures.

DataBolt Bandwidth Optimization
Combine two 6Gb/s connections into one 12 Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.

Multipath Routing
Ensure smooth data transmission and continuous operation by using the TL-R1620Sep-RP with a NAS that supports multipath routing.

Storage Management
Manage the storage space and settings of the TL-R1620Sep-RP with Storage & Snapshot Manager on the host NAS.

Remote Files Transfer
Conserve network bandwidth and performance by using the TL-R1620Sep-RP to transfer huge files from one device to another.

Easy Installation & Storage
With a short-depth design, the TL-R1620Sep-RP is suitable for universal deployment.

Achieve up to 96Gb/s with link aggregation
The TL-R1620Sep-RP is powered by a low-power 28nm SAS35x36R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Also, it has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. By connecting the TL-R1620Sep-RP to the host NAS and daisy-chaining multiple JBODs with two wide ports configured with link aggregation, the solution delivers up to 96Gb/s transfer speed.

Supports SAS DataBolt technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure
Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1620Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.

Connect up to 16 JBODs, support up to 4.6PB raw capacity
The TL-R1620Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1620Sep-RP can be daisy-chained to achieve a raw capacity of up to 4.6PB.

Multipath routing to ensure continuous system operations
By daisy chaining the TL-R1620Sep-RP, data transmission loads can be balanced with multipath routing to achieve high availability. If one route fails, another transmission route can be used to access the data and ensure continuous system operations. The TL-R1620Sep-RP also features a redundant power supply to ensure system uptime.

Flexible daisy chaining modes
By daisy-chaining your NAS to multiple TL SAS JBODs and REXP SAS JBODs, you can take advantage of multipath routing and link aggregation to benefit from higher transfer speeds and system availability.

Storage Management
By using Storage & Snapshot Manager on the host NAS, you can configure and manage the TL-R1620Sep-RP's storage space by setting RAID groups, storage pools and snapshots, or configuring the JBOD as the storage volume of host NAS, allowing you to easily expand NAS storage to accommodate massive data or backup files. You can also configure and manage the TL-R1620Sep-RP via the Console Port.

Speed up remote file transfers with JBOD migration
Moving many small files or a single large data file over a network can be time-consuming and negatively impact network performance. By setting up the RAID configuration on the TL-R1620Sep-RP, you can use it to move files to another computer or NAS. Simply save the files to the TL-R1620Sep-RP, connect it to the destination device, and then copy the files over.


- For PC/Server -
The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of Windows servers. You can daisy-chain multiple JBODs via high-speed Mini SAS HD cables for flexible storage expansion to meet the requirements of virtualization applications and storing huge data. Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s; SAS Zoning technology divides one TL-R1620Sep-RP to into dedicated storage zones for four host servers. When connected to a Windows server that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation. The TL-R1620Sep-RP also supports Windows S2D (Storage Spaces Direct) failover cluster that combines storage, compute, and networking for centralized management.

Supported Server
Certified with Windows Server 2019; can be daisy-chained to flexibly expand the storage spaces of Windows servers.

DataBolt Bandwidth Optimization
Combine multiple 6Gb/s transmissions into 12 Gb/s data streams to achieve faster speed with existing 6Gb/s infrastructure.

Multipath Routing
Ensure smooth data transmission and continuous operations by using the TL-R1620Sep-RP with a server that supports multipath routing (Multipath I/O, MPIO).

SAS Zoning
With the QNAP JBOD Manager app, the storage space of the TL-R1620Sep-RP can be divided into four zones. Different host servers can only access a single zone through different Wide Ports.

Storage Management
Windows users can manage the storage space and settings of the TL-R1620Sep-RP with the QNAP JBOD Manager app.

QNAP TL-R1620SEP-RP Features

  • Expand up to 4.6PB with daisy-chained enclosures for NAS/servers
  • Achieve 96Gb/s speed with DataBolt & link aggregation
  • Ensure continuous operation with multipath routing & redundant power supply
  • Flexible SAS zoning supports up to 4 servers with isolated storage
  • Short-depth design can be installed in standard server racks or small AV cabinets

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Expand your QNAP NAS storage: This 16-bay JBOD enclosure boosts capacity easily.
  • Experience fast performance with SAS 12Gb/s: Ideal for data-intensive applications.
  • Ensure data security: Supports RAID configurations for reliable storage protection.
  • Enjoy remote access to your files: Seamless integration with QNAP's OS for easy access.
  • Scale your storage as needed: Perfect for growing businesses needing flexible storage.
  • Set up quickly with hot-swappable drives: Minimize downtime and maximize efficiency.

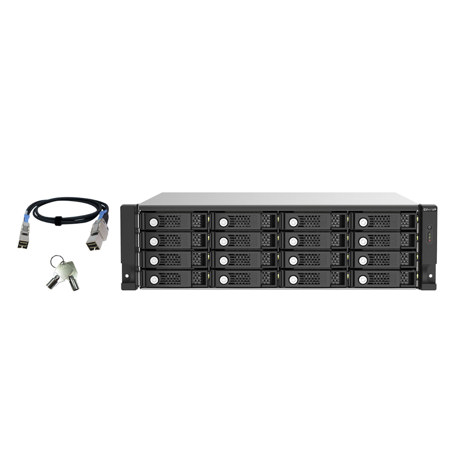

What's in the box:

  • QNAP TL-R1620SEP-RP 16-Bay JBOD 3U Rackmount SAS 12Gb/s Storage Expansion Enclosure (Diskless)
  • 2x Power Cables
  • Mini SAS Cable (SFF-8644)
  • 48x Flat Head Screws for 2.5" Drives
  • 64x Flat Head Screws for 3.5" Drives
  • 2x Drive Bay Keys
  • QNAP 5 Year Limited Warranty
