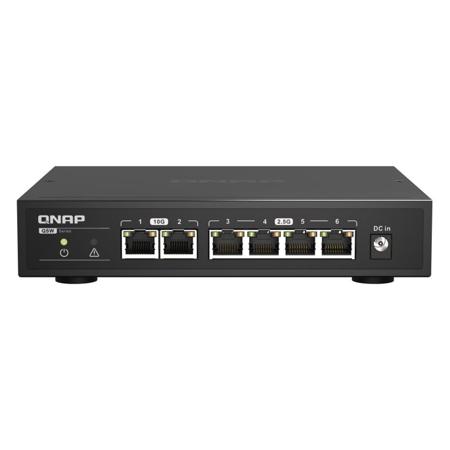

QNAP QSW-2104-2T 6-Port Unmanaged Switch with 2x 10GbE BASE-T and 4x 2.5GbE RJ45 Ports

SKU: QNTQSW21042T

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?NIKHIL S : Met my requirements for a multi-gig ethernet backhaul between my router and APs and a 10gbe uplink port.THOMAS D : Need transfer speedAnthony M : To setup a home networkENRIQUE G : Upgrade

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

QNAP QSW-2104-2T Specifications

  • Management Type

    Unmanaged

  • Number of Ports

    6

  • 10GbE BASE-T (RJ45)

    2

  • 2.5GbE (RJ45)

    4

  • Power Supply Description

    Adapter

  • Max. Power Consumption

    12W

  • Input Power Type

    DC

  • Input Voltage Range

    12V/1A

  • MAC Address Table

    16K

  • Total Non-Blocking Throughput

    30Gbps

  • Switching Capacity

    60Gbps

  • Supported Standards

    IEEE 802.3u 100Base-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3bz 2.5G/5GBase-T
    IEEE 802.3an 10GBase-T
    IEEE 802.3az Energy Efficient Ethernet (EEE)IEEE

  • Form Factor

    Desktop

  • LED Indicators

    Per Port: Speed/Link/Activity
    Loop LED: Loop
    Per System: Power/Status

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Relative Humidity

    5-90% Non-condensing

  • Certifications

    FCC, CE, BSMI, VCCI, LVD,CCC,KCC

  • Electromagnetic Compliance

    Class B

  • Jumbo Frames

    9K

  • Dimensions (H x W x D)

    1.34 x 7.09 x 5.71" (34 x 180 x 145mm)

  • Weight

    1.59 lbs (721.21g)

  • UPC Code

    885022020898

About QNAP QSW-2104-2T

Where high-speed, reliable, and efficient networking is a necessity, the QNAP QSW-2104-2T 6-Port Unmanaged Switch stands out as a superior choice. This high-performance switch is designed to cater to the needs of small to medium-sized businesses, home offices, and professionals requiring robust connectivity.

The QSW-2104-2T is a user-friendly, plug-and-play switch that boasts 2x 10GbE BASE-T and 4x 2.5GbE RJ45 ports. These ports provide the flexibility to connect a diverse range of devices with varying bandwidth requirements, thereby enhancing your network environment.

This unmanaged switch is not just about speed; it's also about silent and energy-efficient operation. Its unique fanless design ensures near-silent operation, making it an ideal choice for quiet workspaces. The switch also supports IEEE 802.3az (Energy Efficient Ethernet, EEE), optimizing power usage for low-speed and inactive connections without compromising on performance or functionality.

The QSW-2104-2T also features automatic loop detection and blocking, ensuring continuous network operation by quickly resuming normal operation if a network loop is detected.

The switch's 10GbE RJ45 ports are compatible with the 10GBASE-T/NBASE-T standard and support 5 speeds (10G/5G/2.5G/1G/100M) to meet diverse bandwidth requirements. Its 2.5GbE RJ45 ports can instantly boost your network speed by 2.5 times using existing Cat 5e cables.

With the QSW-2104-2T, you can easily create a hybrid high-speed network to accelerate file transfers, virtual machine applications, multimedia streaming/sharing, and more. This switch is a part of QNAP's comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities.

The QSW-2104-2T is not just a switch; it's a future-proof investment for your network environment, ready to handle bandwidth-hungry applications. Its auto-negotiation feature optimizes transfer speeds and performance for each connected device, ensuring optimal performance right out of the box.

In summary, the QNAP QSW-2104-2T 6-Port Unmanaged Switch is a durable, high-performance, and user-friendly solution for your networking needs, offering maximum flexibility with multiple 10G and 2.5G Ethernet ports.

QNAP QSW-2104-2T Features

  • QSW-2104-2T is an easy-to-use unmanaged switch with 2-port 10GbE RJ45 and 4-port 2.5GbE RJ45
  • No complex settings are required, and auto-negotiation ensures optimal performance
  • Automatic loop detection and blocking to ensure continuous network operation
  • The unique fanless design with ventilated construction provides noiseless operation
  • IEEE 802.3az (EEE) helps to reduce power consumption for low-speed and inactive connections

Key Features

  • Upgrade your network with this QNAP 6-Port Ethernet switch, featuring 2x 10GbE and 4x 2.5GbE ports.
  • Experience lightning-fast data transfers with the 10GbE ports, perfect for bandwidth-intensive applications.
  • Easily expand your home or office network using this unmanaged switch; simply plug and play for instant connectivity.
  • Enjoy a reliable network connection with a switching capacity of 60Gbps, ensuring smooth data flow.
  • This QNAP switch supports Jumbo Frames, optimizing large file transfers and improving overall network performance.
  • Compact desktop design fits seamlessly into any environment; enjoy powerful networking without taking up space.

What's in the box:

  • Qnap QSW-2104-2T 6-Port Unmanaged Switch with 2x 10GbE BASE-T & 4x 2.5GbE RJ45
  • Power Supply
  • Bracket Screws
  • Anchors
  • Foot Pads
  • Quick Installation Guide
  • Qnap 2 Year Limited Warranty
