Kit Savings

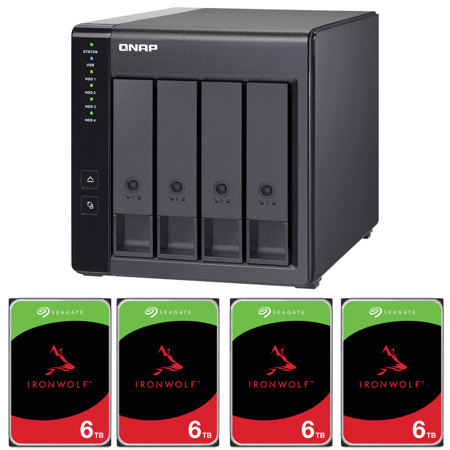

QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure, Bundle with 4x Seagate IronWolf Pro 6TB SATA III 3.5" Internal NAS HDD, 7200 RPM (CMR)

SKU: QNTR004K MFR: TR-004-US K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Qnap TR-004 4-Bay USB 3.0 Type-C Hardware RAID Enclosure DAS
    Qnap TR-004 4-Bay USB 3.0 Type-C Hardware RAID Enclosure DAS
  • +
  • Seagate IronWolf Pro SATA III 3.5" Internal NAS Hard Drive, 7200 RPM 6TB Single
    Seagate IronWolf Pro SATA III 3.5" Internal NAS Hard Drive, 7200 RPM 6TB Single

    Qty: 4

  • +
  • Show more

Key Features

  • Expand your storage with this 4-bay enclosure, supporting both 2.5" and 3.5" SATA drives.
  • Enjoy fast data transfers with the USB 3.2 Gen 1 interface on this QNAP RAID enclosure.
  • Create a secure RAID configuration (0/1/5/10) to protect your valuable data with ease.
  • Use as direct attached storage (DAS) for quick access and easy file management on the go.
  • This QNAP TR-004 includes four 6TB IronWolf NAS hard drives for reliable storage.
  • Hot-swappable design allows for easy drive replacement without system downtime; maximize uptime.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$119.00

2 Year

$189.00

3 Year

$289.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-03-18T10:41:22

Rated 5 out of 5

Synology TR-004 - great value

I really appreciate Adorama’s service and competitive (the cheapest I found) pricing. Also, their return service is perfect, as I had to return the Synology I originally chose. The speeds on this at RAID 5 & three 8TB Barracuda drives are exactly as promised (220MB/sec) and setup was super easy. Happy customer

ANDREW C.

2020-07-17T14:01:09

Rated 4 out of 5

Looks promising but **encrypted volumes can’t be accessed directly via computer**

Looks like a great little DAS! For my use case, however, there was one dealbreaker: Encrypted volumes can not be used directly from a computer (i.e. not via a QNAP NAS). I wanted to use this device as a NAS backup, but also be able to access the files directly in case of an emergency. This limitation didn’t seem clear in the literature. I ended up buying a lower-end QNAP NAS for my purpose, which seems to be the only solution to my problem.

SEAN D.

2020-07-08T16:46:24

Rated 5 out of 5

So far so good

Stays connected which is more than I can say for the enclosure it replaced

JEREMY L.

2019-05-13T14:02:38

Rated 5 out of 5

Meets my needs nicely

For <$ this QNAP DAS serves its purpose. I have plenty of NAS devices from QNAP, Synology, Thecus but I did need or want a NAS for this project. No doubt it's not enterprise grade equipment with plastic sleds, cheap locks, etc. but it's not marketed or priced for this type of use either. I had no issues with the fan, the firmware update was effortless and I installed 4 10TB+, set a raid up with the switches then wiped it our and reset with software control and it was super fast and easy. Like all these types of devices, you want to make sure your drives (especially the higher capacity drives) are compatible with the unit. (this is easily found on the QNAP website). Drives that are not listed may or may not work so buyer beware. Granted I am only 24 hours in use with this but so far, I think it's a great deal if you need a multi-bay DAS

David R.

2019-01-23T10:14:04

Rated 5 out of 5

FAST and High Capacity storage

I needed something with high capacity with RAID protect and fast storage. This was a bargain at $ I put 4 8TB in RAID 5 giving me 24TB usable space. I was getting around 180 MB/s using USB Type C to my Dell XPS Type C connection.

Chris L.

2019-01-13T13:29:54

Rated 1 out of 5

Qnap TR-004: Not impressed, noisy fan, quality issues, firmware issues

Qnap TR-004: Not impressed, noisy fan, quality issues, firmware issues

Cameron B.

2019-01-13T13:28:29

Rated 1 out of 5

Qnap TR-004: Not impressed, noisy fan, quality issues, firmware issues

Qnap TR-004: Not impressed, noisy fan, quality issues, firmware issues. Fan howls, groans, moans, growls & squawks (only quiet when inactive & at lowest speed). No matter what it is connected to (another QNAP device, PC, or laptop), it repeatedly & intrusively nags about a firmware update, but then declares it is already up-to-date. QNAP website has no newer version. The quality of this device is lackluster, compared to the also plastic/flimsy TS-451+.

Anonymous P.

2019-01-06T09:41:13

Rated 4 out of 5

NAS Expansion

Met my expectations for a fairly priced QNAP expansion enclosure. Plastic locks & keys lend a "cheapness" to appearance even if they do the job...

PETER K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

QNAP TR-004 Specifications

  • JBOD Connection Interface

    USB

  • Main Chip

    Micro processor with hardware RAID

  • Drive Bay

    4 x 3.5"

  • HDD Compatibility

    3.5" SATA 3Gb/s slot (supports SATA 6Gb/s hard drives with backward compatibility, performance limited to 3Gb/s)
    2.5" SATA 3Gb/s slot (supports SATA 6Gb/s hard drives with backward compatibility, performance limited to 3Gb/s)
    2.5" SATA 3Gb/s slot (supports SATA 6Gb/s solid state drives with backward compatibility, performance limited to 3Gb/s)

  • Hot-swappable

    Yes

  • USB 3.2 Gen 1 Port

    1x Type-C USB 3.2 Gen 1 (USB 3.2 Gen 1)

  • Form Factor

    Tower

  • Operating Temperature

    32 Degree F - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 Degree F - 158 Degree F (-20 - 70 Degree C)

  • Relative Humidity

    5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)

  • Power Supply Unit

    Minimum 60W adapter (12VDC), 100-240VAC

  • Power Consumption: HDD Sleep Mode

    4.17 W

  • Power Consumption

    18.21 W (Operating Mode, Typical) (tested with drives fully populated)

  • Fan

    1 x 120mm, 12VDC

  • System Warning

    Buzzer

  • Kensington Security Slot

    Yes

  • QTS / QuTS hero

    Yes

  • Windows

    Yes

  • Ubuntu

    Yes

  • Mac

    Yes

  • Used as Hardware RAID (DAS)

    Yes

  • RAID 10

    Yes

  • RAID 5+ Spare

    Yes

  • RAID 5

    Yes

  • RAID 1

    Yes

  • RAID 0

    Yes

  • JBOD

    Yes

  • Single Disk

    Yes

  • Dimensions (H x W x D)

    6.63 x 6.31 x 8.62" (16.83 x 16.02 x 21.89cm) (excludes foot pad; foot pad may be up to 1.18" (30mm) high)

  • Weight

    4.1 lbs (1.86kg)

  • UPC Codes

    192223263413, 885022016358, 763649176320

Models
QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure, with 4x 6TB NAS HDD
$1,098.96

Ships from Manufacturer

Usually ships within 1-2 Days

QNAP TR-004U 4-Bay USB 3.2 Gen 1 Type-C 1U RAID Expansion Enclosure, Diskless
$329.00

Special Order

Generally ships in 7-14 days, subject to availability

Accessory TypeDrive Docking & StorageDrive Docking & StorageDrive Docking & Storage
Mount TypeDesktop MountRack MountDesktop Mount
Number of Drive Bays442
Drive Form Factor2.5 and 3.52.5 and 3.52.5 and 3.5
Drive Power TypeAC AdapterAC AdapterAC Adapter

About QNAP TR-004

FEATURED REVIEWS

FAST and High Capacity storage

By Chris L.

I needed something with high capacity with RAID protect and fast storage. This was a bargain at $ I put 4 8TB in RAID 5 giving me 24TB usable space. I was getting around 180 MB/s using USB Type C to my Dell XPS Type C connection.

Synology TR-004 - great value

By ANDREW C.

I really appreciate Adorama’s service and competitive (the cheapest I found) pricing. Also, their return service is perfect, as I had to return the Synology I originally chose. The speeds on this at RAID 5 & three 8TB Barracuda drives are exactly as promised (220MB/sec) and setup was super easy. Happy customer

Effective storage expansion with RAID Support
The TR-004 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5-inch SATA drive bays and supporting RAID configuration, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.

Supports various RAID levels
The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

Individual Mode
Treats every disk as separate storage space, allowing you to independently access each one.

JBOD Mode
All the disks are recognized as a single drive. This allows maximal storage utilization but provides no data protection.

RAID 0 Mode
Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.

RAID 1/10 Mode
Half of the total storage capacity is used to store data, and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.

RAID 5 Mode
RAID 5 requires at least three drives to use and parity information is distributed among the drives, providing optimized storage capacity and protection against one disk failing.

Software Ctrl Mode
Use this mode to control the RAID configuration from your NAS or computer.

Flexible storage configuration and management
Compared with other RAID enclosures, the TR-004 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

Use Storage & Snapshots Manager to configure the TR-004 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-004 as a DAS.

Versatile usage scenarios to meet storage expansion needs
The TR-004 meets many storage expansion requirements for home and work use, including:

Expand the capacity of your NAS
The TR-004 provides an alternative method for users to expand their NAS storage capacity. By connecting the TR-004 to their NAS and using the Storage & Snapshots Manager, users can easily configure and manage their storage expansion. The TR-004 supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, find files with Qsirch and organize files with Qfiling.

Use the TR-004 as an alternative to conventional NAS expansion enclosures
As an external hardware RAID device, the TR-004 operates independently and does not require additional NAS system resources. When compared with the UX-500P expansion enclosure, the TR-004 uses less NAS system resources.

External storage for your NAS
Instead of using the TR-004 to expand the capacity of your QNAP NAS, you can use it as a complimentary storage unit for backing up or moving data. It also allows you to physically migrate huge data collections that would require significant network bandwidth. While connected to the NAS, you can monitor the health and status of the TR-004 by using the Storage & Snapshots Manager on the NAS.

Expand the storage space of your computer
The TR-004 can quickly add storage space to your computer. You can use the DIP switch to configure a hardware RAID mode or manage it by using the QNAP External RAID Manager utility. The health and status of the TR-004 can also be monitored by using the QNAP External RAID Manager utility.

Cross-platform file sharing
From your NAS to Windows, Mac, and Linux computers, the TR-004 is compatible with a wide range of devices. This makes it ideal for quickly moving large files between different devices. The TR-004 is even compatible with devices that use the exFAT file system, adding further convenience for accessing and sharing files from a wider range of devices.

QNAP TR-004 Features

  • USB 3.2 Gen 1 Type-C port for faster data transfer
  • Supports up to four SATA drives for reliable read and write performance
  • Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group
  • Lockable hard drive trays to prevent accidental drive removal
  • Eject button for disconnecting the TR-004 from a NAS or computer (Requires the QNAP External RAID Manager utility)
  • Instantly back up files from the TR-004 to the NAS using the One Touch Copy button

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Expand your storage with this 4-bay enclosure, supporting both 2.5" and 3.5" SATA drives.
  • Enjoy fast data transfers with the USB 3.2 Gen 1 interface on this QNAP RAID enclosure.
  • Create a secure RAID configuration (0/1/5/10) to protect your valuable data with ease.
  • Use as direct attached storage (DAS) for quick access and easy file management on the go.
  • This QNAP TR-004 includes four 6TB IronWolf NAS hard drives for reliable storage.
  • Hot-swappable design allows for easy drive replacement without system downtime; maximize uptime.

What's in the box:

  • QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Expansion Enclosure
  • AC Power Adapter
  • Power Cord
  • USB Type-C to Type-A Connector Cable
  • 2x Drive tray keys
  • USB Cable Clip
  • 12x Screws For 2.5 " Drives
  • 16x Screws For 3.5 " Drives
  • User Manual
  • QNAP 2 Year Limited Warranty
  • Bundle Includes:
  • 4x Seagate IronWolf Pro SATA III 3.5" Internal NAS Hard Drive
  • 7200 RPM
