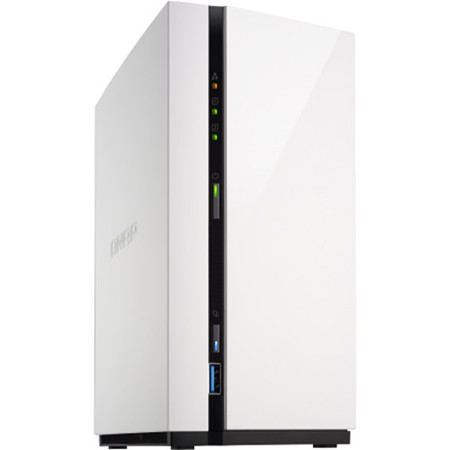

QNAP TS-228A 2-Bay NAS Enclosure, ARM RTD 1295 Quad-Core 1.4GHz, 1GB RAM

SKU: QNTS228AUS

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2019-06-20T08:54:13

Rated 5 out of 5

Good Budget NAS

So far so good. Put 2 x 4 TB WD Reds in here in RAID 1. Performance is pretty snappy. Hybrid backup sync works well. Pretty quiet, only noise really comes from hard drives. Plex works fine for streaming (I assume it won't transcode well but haven't needed to try).

JASON H.

2019-02-26T07:46:44

Rated 4 out of 5

Good but somewhat slow

Populated with 2 6gb HDDs; works well. You might look at other 2 bay NAS solutions should you want faster backups, which of course cost you more.

William F.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

QNAP TS-228A Specifications

Hardware

Hardware

Jump to...
  • CPU

    Realtek RTD1295 quad-core 1.4GHz processor
    Architecture: 64-bit ARM A53
    Hardware encryption acceleration engine

  • System Memory

    1 GB DDR4, not expandable

  • Flash Memory

    4GB eMMC

  • Drive Bay

    2 x 3.5 inch SATA 6Gbps

  • Drive Compatibility

    3.5 inch SATA drives

  • Gigabit Ethernet Port

    1 x RJ45

  • USB Port

    Type A; 1x USB 3.1 Gen1 (Front); 2x USB 2.0 (Rear)

  • LED Indicators

    Network, disk, system status, one-touch copy

  • Buttons

    Power, reset, USB one touch copy

  • System Warning

    Buzzer

  • Form Factor

    Tower

  • Operating Temp. & Relative Humidity

    32 - 104 Degree F (0 - 40 Degree C)
    5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)

  • Power Supply Unit

    External, 36 W, AC 100 to 240 V

  • Power Consumption

    HDD standby: 2.9W
    In operation: 7.06W
    (with 1x 1TB disk installed)

  • Sound Level

    17.0 dB (A)

  • Fan

    1x 7612 cooling blower for system

  • Dimensions (H x W x D)

    7.36 x 2.36 x 4.92" (187.7 x 60 x 125mm)

  • Weight

    Net: 1.23 lb (0.56kg)
    Gross: 3.84 lb (1.74kg)

Software

Jump to...
  • Operating System

    QTS 4.3.4 (embedded Linux)

  • Supported Clients

    Apple Mac OS 10.7 or later
    Linux and UNIX
    Microsoft Windows 7, 8, and 10
    Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016

  • Supported Browsers

    Apple Safari 7 or later
    Google Chrome
    Microsoft Internet Explorer 10 or later
    Mozilla Firefox

  • Multilingual Support

    Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

  • File System

    Internal hard drive (EXT4)
    External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+)

  • Networking

    TCP/IP (IPv4 & IPv6: Dual Stack)
    Service binding based on network interfaces
    Squid Proxy server
    Proxy client
    DHCP client, DHCP server
    Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
    UPnP & Bonjour Discovery
    USB Wi-Fi Adapter Support

  • Security

    Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
    CIFS host access control for shared folders
    FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
    AES 256-bit external drive encryption
    Importable SSL certificates
    Instant alert via E-mail, SMS, beep,and push service
    2-step verification

  • iSCSI (IP SAN)

    iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
    Supports LUN mapping & masking
    Online LUN capacity expansion
    Support for SPC-3 persistent reservation
    Supports MPIO & MC/S
    iSCSI LUN backup, one-time snapshot, and restoration
    iSCSI connection and management by QNAP Windows Qfinder Pro
    Virtual disk drive (via iSCSI initiator)
    Max No. of virtual disk drives: 8

  • UPC Code

    885022014309

10 Accessories for QNAP TS-228A 2-Bay NAS Enclosure, ARM RTD 1295 Quad-Core 1.4GHz, 1GB RAM

  • All Accessories (10)
  • Cables & Adapters (7)
  • Switches (1)
  • Drives & Storage (1)
  • Tools (1)

About QNAP TS-228A

FEATURED REVIEWS

Good Budget NAS

By JASON H.

So far so good. Put 2 x 4 TB WD Reds in here in RAID 1. Performance is pretty snappy. Hybrid backup sync works well. Pretty quiet, only noise really comes from hard drives. Plex works fine for streaming (I assume it won't transcode well but haven't needed to try).

NAS

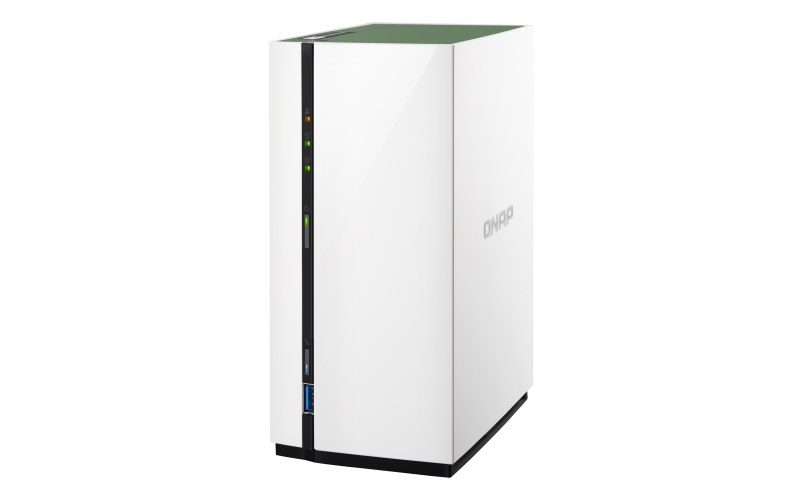

Lightweight & Powerful Entry-Level NAS For Private Cloud & Home Entertainment.

Equipped with a Realtek RTD1295 quad-core processor, the TS-228A provides home users with powerful features including snapshot-based backup, file synchronization, and private cloud services. The TS-228A is also a one-stop home entertainment portal for streaming photos, music, and videos to multiple devices throughout your home and beyond. With energy-saving and quiet operation, the TS-228A is especially suited for home users and provides easy-to-use and convenient functionality for file storage and multimedia needs.

NAS

Qsync is an easy-to-use real-time file sync service for computers and mobile devices. With Qsync, your data can be shared across multiple locations, making file sharing even easier.

NAS

The TS-228A provides you with snapshot protection at an affordable price, allowing you to protect files and data from accidental deletion and malware attacks.

NAS

Hybrid Backup Sync gives you the freedom to set and combine multiple auto backup/sync functions to keep important data safe and to ensure peace of mind.

NAS

The three multimedia "stations" (Photo, Music, and Video) help you to effortlessly centralize, manage, organize, and browse your family's multimedia files.

NAS

Your multimedia collection can be streamed directly from the TS-228A to supported smart TVs, music players, and game consoles.

NAS

Download Station combines many popular downloading services and functions. With the power-efficient and quiet TS-228A, you can run downloading tasks for a long period of time without running up a large electricity bill.

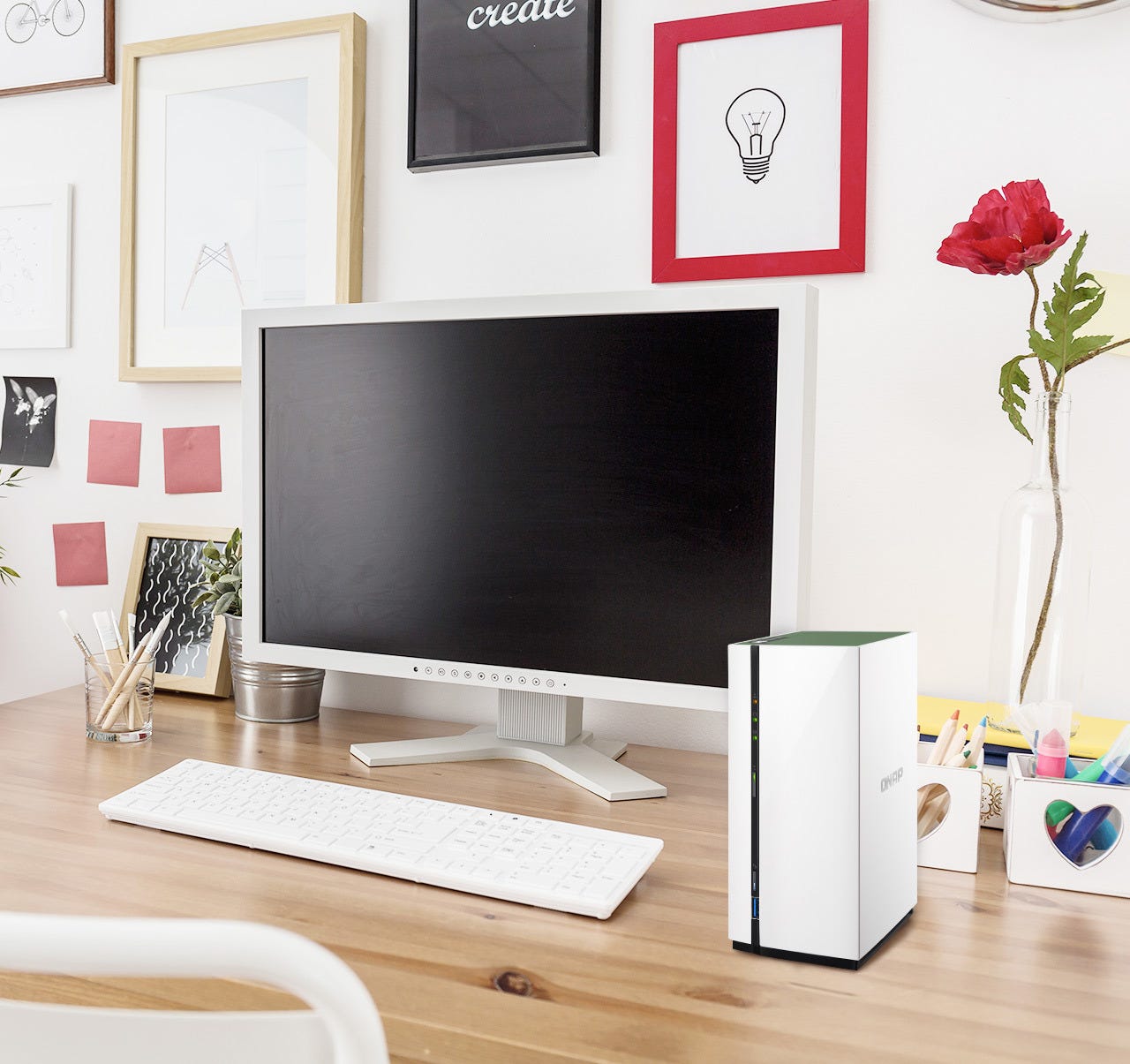

Lightweight & Easy Installation.

The minimal and streamlined design of TS-228A makes it fit easily into your home. Featuring a unique, tool-less design, setting up the TS-228A is so easy that it doesn't even need a screwdriver!

Lightweight & Easy Installation.

A Single NAS For Cross-Platform, Multi-Device File Access & Sharing.

The TS-228A acts as a file exchange platform to simplify your file management across devices, and is compatible with a wide range of computers and devices (including Windows, macOS and more). For mobile devices, the Qsync suite can be installed for synchronizing and sharing files across PC, phones and tablets.

A Single NAS For Cross-Platform, Multi-Device File Access & Sharing.

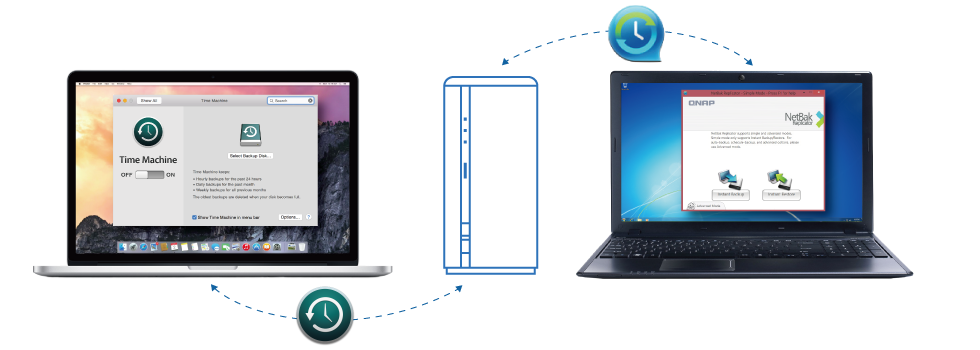

Backing Up Data Is As Easy As 1-2-3.

By practicing safe computer habits and with the TS-228A handling your file backup tasks, you can rest easy knowing that your data is safe. QNAP's NetBak Replicator backup utility can assist in backing up/restoring files on a Windows® PC while macOS users can set up Time Machine to save to the TS-228A.

Backing Up Data Is As Easy As 1-2-3.

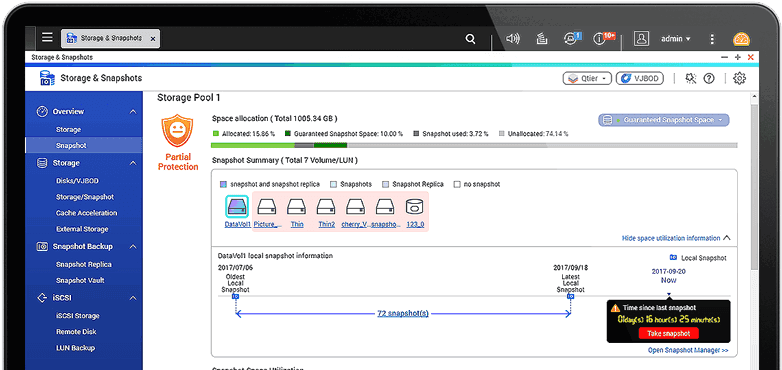

High-End Snapshot Protection For Files & Data.

QNAP has extended support for file snapshot protection to our entry-level NAS. Snapshots were originally only possible on high-end business systems, and they allow you to record the system state and data content at a single point of time. With snapshot protection, if you accidentally delete/modify files, or if any hard disks should fail or your network is infected with malware, you can quickly restore files to a previous point in time.

NAS

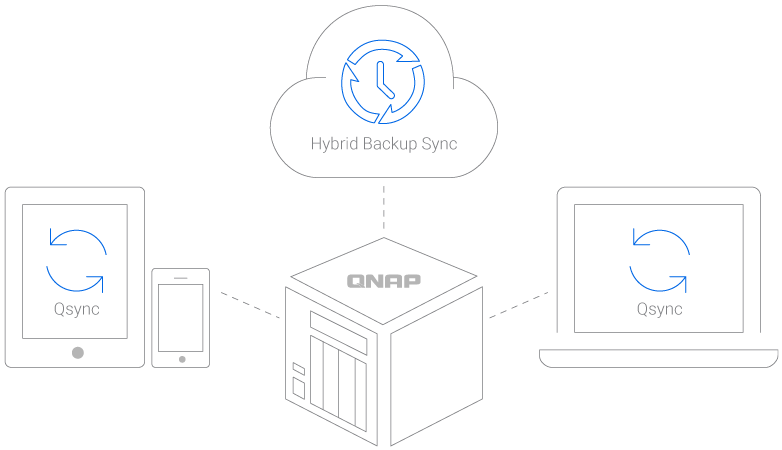

Back Up Your Files With The Versatile Hybrid Backup Sync.

With the TS-228A, complicated backup settings are history. You can now use Hybrid Backup Sync as your single portal for backing up, restoring, and syncing files. Supporting local NAS, remote NAS and cloud storage as both origins and destinations, you can combine multiple backup tasks to provide optimal protection for your data. Other features include scheduling, versioning, data compression and multiple-layer encryption, so your files are kept safe and sound.

Back Up Your Files With The Versatile Hybrid Backup Sync.

360-Degree Panorama Photo/Video.

Good news for adventurers! QNAP NAS now supports the popular 360-degree panorama recording format! By clicking the 360-degree panorama display button, your photos and videos will be displayed as 360-degree panorama media files.

NAS

All Your Downloading Needs Covered.

With the energy-efficient and quiet TS-228A, you no longer need to use different downloading utilities or to keep your computer running all the time. Use Download Station to search for downloads and to manage your download tasks.

All Your Downloading Needs Covered.

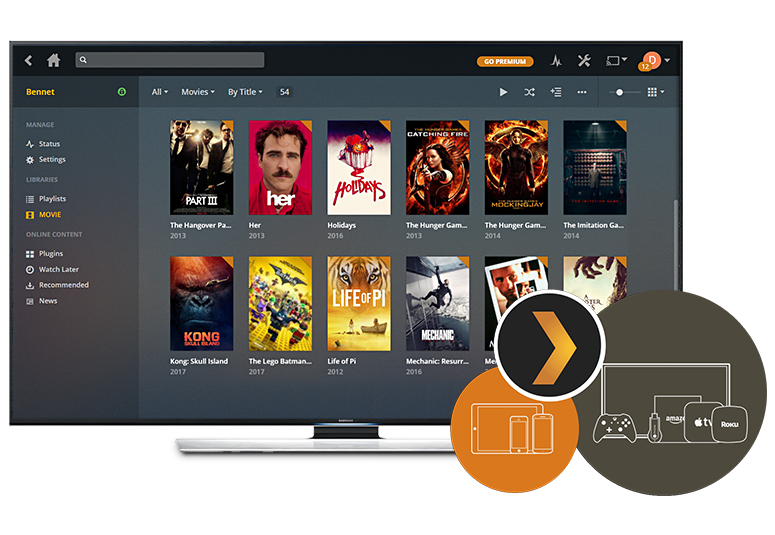

Greater Multimedia Enjoyment With Plex.

You can download Plex Media Server from the QTS App Center to use the TS-228A as a centralized entertainment portal and stream media files from the TS-228A to mobile devices, DLNA-compatible devices, and TVs by using common streaming devices (including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®).

NAS

Serious Security Features.

The TS-228A is loaded with comprehensive security features such as 2-step authentication, encrypted access, IP filtering/blocking and anti-virus. Also, you can use permissions for users and folders to block unwanted access from unauthorized users or apps.

Serious Security Features.

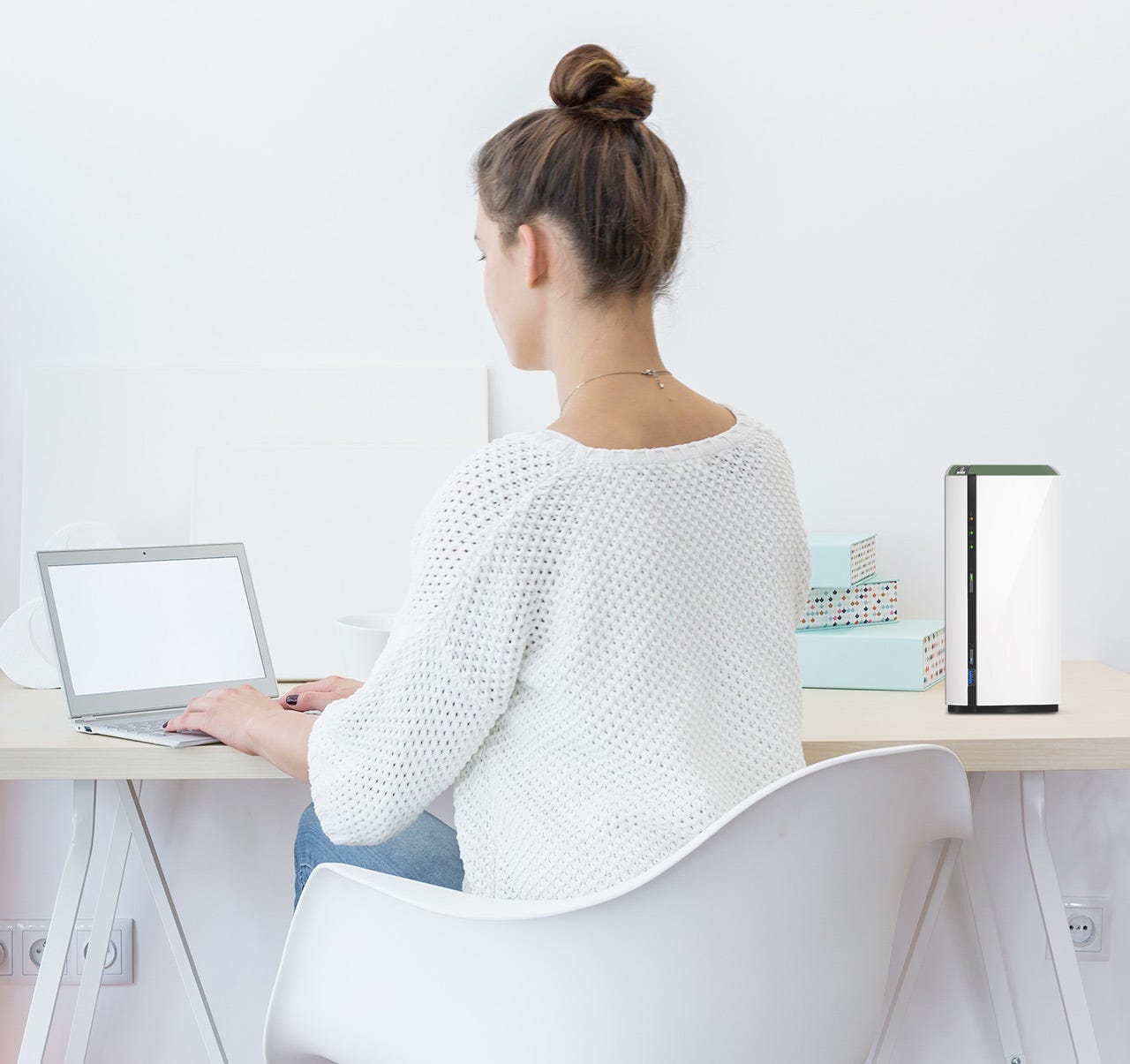

Power Efficient & Quiet.

The TS-228A requires only 12.21 W, providing powerful features without a high power bill. Other smart energy-saving modes help to minimize electricity usage, and with a quiet cooling fan both the noise and heat generated by the TS-228A is kept to a minimum.

Power Efficient & Quiet.

What's in the box:

  • TS-228A NAS
  • Ethernet Cable
  • Power Cord
  • AC Adapter
  • Pair of Fixers (L & R)
  • Quick Installation Guide
  • Qnap 2 Year Limited Warranty
