AnnapurnaLabs, an Amazon company Alpine AL314, quad-core, 1.7GHz
32-bit ARM
Yes
Yes
2 GB SO-DIMM DDR3
8GB DDR3
1 x SO-DIMM DDR3
512 MB (Dual boot OS protection)
2 x 3.5-inch SATA 6Gb/s, 3Gb/s
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Yes
Yes (Support)
1
1 (2.5G/1G/100M)
Yes
3
Tower
Power, Status, LAN, USB, HDD1-2
Power, Reset, USB Auto Copy
32 Degree F - 104 Degree F (0 - 40 Degree C)
5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)
60W Adapter, 100-240V
HDD Sleep Mode: 8.46 W
Operating Mode, Typical: 15.6 W (Tested with drives fully populated)
1 x 70mm, 12VDC
19.5 db(A)
Buzzer
Yes
400 Connections (CIFS)
6.65 x 4 x 8.6" (169 102 219mm)
3.22 lbs (1.46kg)
QTS 4.4.2 (embedded Linux)
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, and 10
Microsoft Windows Server 2008 R2, 2012, 2012 R2 and 2016, 2019
Apple Safari 7 or later
Google Chrome
Microsoft Internet Explorer 10 or later
Mozilla Firefox
Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Internal hard drive (EXT4)
External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
TCP/IP: Dual stack (IPv4 and IPv6)
Jumbo frame
Port trunking (Link aggregation):
failover
Load balancing
DHCP server and client
RADVD
USB Wi-Fi adapter
Virtual switch:
Network Address Translation (NAT)
Spanning Tree Protocol (STP)
Software-Defined Switch mode
Static Route
NCSI (Network Connectivity Status Indicator)
DDNS settings (Customize & Multiple Service)
HTTP/HTTPS Connections (TLS 1.0/1.1/1.2)
Supports WebDAV Connection
Supports Virtual Host (Max: 32)
Importable SSL Certificate
Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
Host access control for shared folders (CIFS/SMB)
AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
256-bit external drive encryption (AES)
Importing of SSL certificates from Let's Encrypt
Instant alerts through email, SMS, push service, and audio
2-step verification
Supported RAID types: RAID 0, 1, 5, 6, 10, JBOD, Single
RAID Hot Spare and Global Hot Spare
RAID Rebuild Speed Customization
Online RAID capacity expansion
Online RAID level migration
SSD RAID Over-provisioning
SSD RAID Performance evaluation (with SSD Profiling Tool)
SSD TRIM for RAID 0,1,10
Bitmap support
Disk auto S.M.A.R.T. data migration
Disk bad block scan and S.M.A.R.T test.
Disk bad block recovery
Disk secure data erase
Ironwolf Health Management
Online volume expansion
Volume type conversion
Volume shrink
Storage space utilization
Storage expansion using QNAP expansion units
JBOD enclosure roaming
SSD read-only and read-write cache
SSD write-only cache
Storage pools
Qtier Data Tiering Technology
Automatic or scheduled data tiering
IO-aware auto tiering
Shared folder tiering on demand
Flexible volumes and LUNs with thin provisioning and space reclaiming
If the NAS has less than 4GB RAM, then the maximum volume capacity is 144TB.
If the NAS has at least 4GB RAM, then the maximum volume capacity is 250TB.
Snapshots
Volume and LUN snapshots
Snapshot Dashboard
Snapshot Manager
Snapshot local restore and revert
Snapshot Clone
Snapshot Replica and Snapshot Vault
Snapshot remote restore and revert
Unified Snapshot Directory
Support for Windows Previous Versions (CIFS/SMB)
iSCSI targets with multiple LUNs per target
LUN mapping (LUN can be moved between iSCSI and FC if supported)
LUN masking
Online LUN capacity expansion
SPC-3 persistent reservation
MPIO & MC/S
iSCSI LUN backup, one-time snapshot, and restoration
Virtual disks using iSCSI initiator
Stack chaining master
Added support for sending notifications via SMS center (SMSC) or providers, including Nexmo, Twilio, and Clickatell
Added Outlook as an SMTP service option
Added support for sending notifications via instant messaging applications, including Skype and Facebook Messenger
Added support for Overview and History in Notification Center
Added support for 23 languages for notification messages
Added support for creating custom notification rules to specify notification criteria, including application categories, severity levels, and keywords
Delivery method and message recipient settings are now more flexible
Added support for creating multiple notification rules at the same time
Added support for sending notifications for a single system event
Wake-on-LAN (WoL)- 1GbE port only
Standby mode for internal drives
Scheduled power on and off
USB and network UPS support with SNMP management
Multiple user creation
User data importing and exporting
User quota management
Local user access control (AFP, CIFS/SMB, FTP, and WebDAV)
Application access control (File Station, Music Station, Photo Station, and Video Station)
Subfolder permissions (AFP, CIFS/SMB, FTP, and File Station)
Microsoft Active Directory (AD) and domain controller support
LDAP server and client
Domain user login (AFP, CIFS/SMB, FTP, and File Station)
Free host name registration (DDNS)
Optional myQNAPcloud SSL certificates (DDNS)
Auto router configuration using UPnP
Web-based file manager with HTTPS 2048-bit encryption
myQNAPcloud Link for remote access without complex router setup
File syncing across multiple devices with SSL secure connection
Selective synchronization for specific folders or subfolders
Team folders as file center for better collaboration
File sharing using email links
Policy settings for conflicting files and file type filter
Version control for a maximum of 64 versions
Unified privilege and configuration management
Central configuration mode
Remote erase and restore
Qsync client supported platforms: Windows, Mac, Ubuntu, Android and iOS
Monitoring of NAS system resources such as CPU, memory and network
Monitoring of NAS storage resources such as volumes, RAID, and disk activity
Monitoring of NAS application resource use
Creation of extra swap space when SSDs are installed
Reporting of issues to the QNAP support team, with automatic collection of system information
Remote connection between QNAP support engineers and NAS for issue resolution (with user permission)
Multi-window, multitasking system management
Smart toolbar and dashboard for system status display
SNMP versions 2 and 3
Resource monitor
Network recycle bin:
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup
File type filter
Comprehensive logs (events and connections)
Syslog server and client
Backup and restoration of system settings
Qmanager: Mobile application for remote system monitoring and management
Qboost
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
Windows ACL (CIFS/SMB)
Advanced folder permissions (AFP, CIFS/SMB, and FTP)
Shared folder aggregation (CIFS/SMB)
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
Document viewing using Office Online, Google Docs, and Chrome extension
Microsoft Office file editing using Google Docs, Sheets, and Slides
ISO file mounting (maximum: 256 ISO files)
Mount smart phones as external storage
Read access for compatible optical disc drives
Read access for compatible smartphones (MTP)
Download and upload link sharing
File dragging and dropping (Chrome and Firefox)
File compression (ZIP and 7z)
Download link creation and sending for publicly shared files, with expiration date and password protection
Subtitle display (SRT and UTF-8)
Slideshow playback in media viewer
Convert image files to pdf by "Image2PDF" integration
Qfile: Mobile app for file browsing and management
Integrate with HybridMount which supports File Cloud Gateway and File Station Mount mode. File Station Mount mode supports:
Cloud drive mounting for Google Drive, Dropbox, Microsoft OneDrive, Microsoft OneDrive for Business, HiDrive, Amazon Cloud Drive, Yandex Disk and Box
Remote shared folder mounting (CIFS/SMB, FTP, and WebDAV)
Auto filing
Recipe function
Archiving through iSCSI, USB, DVD and remote NAS
Advanced settings:
Source File Filters
File Editing
File deletion
Data integrity check
File conflict policy
Cloud storage backup to Amazon Glacier, Amazon S3, Azure Storage, Google Cloud Storage, HKT Object Storage, OpenStack Swift, WebDAV
Cloud storage syncing with Alibaba Cloud, Amazon Drive, Amazon S3, BackBlaze B2, Box, Dropbox, OneDrive, Google Drive, HiDrive, hubiC, OneDrive, OneDrive For Business, ShareFile, Yandex Disk
RTRR server & client with bandwidth control
Rsync server with download bandwidth control
Remote server syncing (CIFS/SMB, FTP, Rsync, and RTRR)
Scheduled backup to local and remote storage spaces
Backup versioning
Encryption, compression, and file filters
Centralized management for backup, restoration, and sync jobs
Support for Apple Time Machine
Data backup to multiple external storage devices
Desktop backup with QNAP NetBak Replicator for Windows
Support for the following third-party backup software: Veeam Backup & Replication, Acronis True Image, Arcserve Backup, Retrospect, Nakivo Backup & Replication, and Veritas Backup Exec
Integrating indexing, transcoding, thumbnail generation, and content management
New content management design, configuring content sources for QTS multimedia applications
View the status of multimedia apps and services all on the same screen.
Browse photos in timeline view or folder view
Virtual albums and smart albums
AI-assisted photo management, classifying people, things, places, etc.
Photo organization by thumbnail, list, timeline, or folder
Virtual and smart albums
Validity control for album sharing
Photo tagging with text, colors, and ratings
Slideshows with background music and transition effects
Album configuration backup and restoration
Advanced folder permissions
Support for domain users
Qphoto: Mobile application for online browsing and sharing
Music playing and sharing through web browsers
Music streaming to multiple devices
Changing of album covers through Google search or by uploading photos
Internet radio (MP3)
Eight music alarms
Switching between spotlight mode and manage mode
Advanced search
Scrolling lyrics
Qmusic: Mobile application for music streaming and management
Video organization by thumbnail, list, timeline, or folder
Virtual and smart collections
Video tagging with text, colors, and ratings
Video link sharing through social media and email
Movie information and poster display from Internet sources or user-uploaded files
Subtitle display (SRT, ASS, SSA)
Subtitle search and downloading
Subtitle file importing
Subtitle display style adjustment
Playback speed adjustment
Direct video streaming for certain file formats
Facebook login
Advanced folder permissions
Support for LDAP users
Video uploading to YouTube and Youku
Multi-zone video display
Qvideo: Mobile application for online video browsing and management
Support for LXC and Docker
Application downloading from the built-in Docker Hub Registry
One-click installation
Container importing and exporting
Console mode
Three networking modes (Note: Docker containers support Bridge, NAT, and Host mode. Linux containers (LXC) support only NAT.)
Auto-start containers
Docker certificate downloading
Private registry addition
Application repository for switching to any repository on GitHub.com
Full-text search
Data distribution using a bar chart
Previews for photos, music, videos, PDFs, Gmail, and others
Advanced search operators and search scope
Customized search filters with included or excluded conditions
Related files suggestion in Viewer
Chrome, Firefox and Safari extension
Support for up to 5,000 IP cameras
2 free camera licenses
Instant playback for recent surveillance events
Visual options for e-maps
Playback speed control
Supporting for displaying preview snapshots on the timeline
Intelligent video analytics (IVA) for advanced video searching
Surveillance client designed for macOS
Mobile surveillance application (Vmobile) for iOS and Android
Mobile recording application (Vcam) for iOS and Android
VPN server:
Secure remote access with PPTP, L2TP/IPSec, OpenVPN, QBelt(QNAP proprietary) protocol
Support for a maximum of 100 clients
Support public/ NAS default/ manually DNS server
Support manually assign/auto detect/none outgoing network interface
Support privilege settings for domain/Local users
VPN client:
Support PPTP, L2TP/IPSec, OpenVPN, QBelt(QNAP proprietary) protocol
Support using VPN as a NAS default gateway
Support connection log check
Support utility and Mobile apps for Windows, Mac, iOS, Android
Support for DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One
Support for CUE indexing file for APE and FLAC
QNAP NAS location on the same local network
NAS shared folder mounting
Basic setting configuration (firmware, SMTP server, and network settings)
Direct connection with USB QuickAccess and Thunderbolt (specific models only)
Storage Plug & Connect (Windows only):
Creation and mapping of NAS shared folders
Creation of and connection to iSCSI targets and LUNs
Media upload (Windows only):
Media file upload to the NAS
Automatic creation of thumbnails or transcoding of videos using the computer
Official and community software add-ons
Automatic updates and notifications for new versions
Repository for imported third-party content
User-specified volume for storing applications
Video, photo and music streaming to Apple TV (via Qmedia) or Chromecast using the following:
NAS applications: File Station, Music Station, Photo Station, and Video Station
Mobile applications: Qfile, Qmusic, Qphoto, and Qvideo
PC-less downloads (BitTorrent, FlashGet, FTP/FTPS, HTTP/HTTPS, QQDL, and Thunder)
BitTorrent: Support for search, magnet links, private trackers, and proxy
Scheduled download and bandwidth control
RSS subscription and download (broadcatching)
Support for add-ons that extend download functionality
Qget: Mobile application for download browsing and management
Insert Evernote Notes in Notes Station 3
Enable Embedding YouTube video into Notes
Table creation using the insert table editor
One-way scheduled sync of contacts from multiple Google accounts
Contact importing from CSV or vCard 3.0 files
Contact exporting to CSV or vCard 3.0 files
Duplicate contact searching and merging
Contact management: Groups, favorites, lock, search, delete and restore
Support for Android and iOS
Daily task automation
Social media data archiving
File synchronization between the NAS and various cloud services
System event notifications on Line, Skype, Gmail, and mobile phones
Music playback on Music Station using Amazon Echo voice commands
Usage of motion detection sensors as trigger for camera recording on Surveillance Station
Trigger based file synchronization between the NAS and various cloud storage services
View miixes made using the Qmiix web portal that include triggers and actions involving QNAP apps
Create miixes for web-based and NAS-related apps
Create miixes on the Qmiix web portal that include File Station, a QNAP app
System event notifications on Line, Skype, Gmail, and mobile phones
Multiple Security Policies (Basic/Intermediate/Advanced/Custom)
Checks NAS settings for security weaknesses
Integrates with existing anti-virus services
Integrates with existing anti-malware services
Integrates with the Security Advisory service
Detects and removes malware from your QNAP NAS
Designs and specifications are subject to change without notice
Some features may vary by model
QTS does not support DRM content and some IPv6 services
Some data encryption features may be unavailable because of country-specific legislative restrictions
885022018925

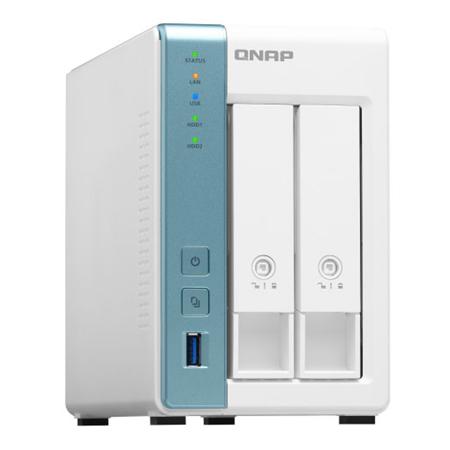

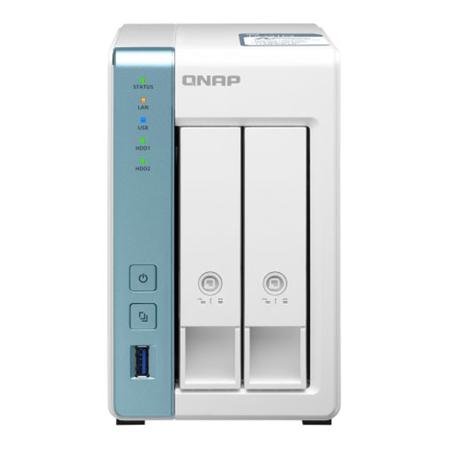

Quad-core 1.7GHz NAS with 2.5GbE and Feature-rich Applications for Home & Office
Powered by Annapurna Labs Alpine AL-314, quad-core 1.7 GHz processor, 2GB DDR3L RAM, one 1GbE LAN port and one 2.5GbE LAN port, the TS-231P3 features a 2.5GbE RJ45 port, providing up to 2.5 times the speed of regular Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. The TS-231P3 ensures data security by supporting AES 256-bit encryption and various local/remote/cloud backup options - including snapshot protection that allows for files and data to be reverted to previously-recorded states if they are accidentally deleted, modified or affected by malware.
2.5GbE connectivity for smoother everyday use and multimedia playback.
HBS backs up and synchronizes NAS data to remote servers or cloud storage, while QuDedup deduplicates data at the source to optimize bandwidth and storage utilization.
Snapshots fully record the system status and data. If files are accidentally deleted or modified, they can be quickly restored to previously-recorded states.
Supports LXC and Docker containers for rapidly deploying application services across various platforms.
File Station centralizes NAS and cloud-based files for easy access. Files can also be easily encrypted to protect sensitive data.
Expand the TS-231P3 storage capacity by connecting TR and TL series storage enclosures.
Build a Faster Home Network with QNAP
The TS-231P3 includes a 1GbE port and a 2.5GbE port to provide a smoother NAS experience and multimedia playback. Additional network connection options from QNAP include USB 3.2 Gen 1 to 5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their home network at a cost-effective price. The TS-231P3 features three USB 3.2 Gen 1 port that delivers outstanding multitasking performance.
Easy and Secure File Management
File Station allows direct management of files stored on the TS-231P3 and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Users can also use Microsoft Office Online to directly view/edit Microsoft Office documents stored on the TS-231P3. Confidential/sensitive data can also be encrypted to add extra security.
Multi-Point File Backup, Access and Sync
The TS-231P3 supports file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows, Mac, and Linux/UNIX devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-231P3 becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps backup/synchronize data on the TS-231P3 to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency of multi-version backup to destination storage, while optimizing storage utilization. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status.
Protect Important Data with Snapshots
Snapshots help protect data by fully recording the NAS system state and metadata. With snapshots, users can quickly restore files to previously-recorded states if files are accidentally deleted or modified, or if the system is compromised by malware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data.
Take Full Control of NAS System Status and Data Security
Notification Center consolidates all QTS system events and alerts, providing a single-app solution for notifications. Security Counselor recommends actions and settings to improve the TS-231P3 security.
Stay Informed at All Times
The Notification Center offers a single-app solution for QTS system events and alert notifications. This removes the need to configure different app settings and helps users streamline management processes and save time.
NAS security portalSecurity Counselor checks for weaknesses and offers recommendations for users to protect their TS-231P3. It also integrates anti-virus and anti-malware software to ensure comprehensive data protection.
Comprehensive Surveillance Solution for 24/7 Security
Surveillance Station features a user-friendly interface and supports over 3,000 IP cameras. With an expandable IP camera channel licensing system, users can build a comprehensive surveillance system for real-time monitoring, video and audio recording and playback. Budget-conscious users can also save money on cameras by using USB webcams to record footage. Surveillance feeds can be monitored at any time by using the Vmobile app on mobile devices.
Extend NAS functionality with Containers and Apps
Container Station integrates LXC and Docker lightweight virtualization technologies, allowing users to host and operate containerized applications directly on the TS-231P3. With many popular and fully-configured applications available from the built-in Docker Hub (including for automation and multimedia), the TS-231P3 provides users with a vast array of potential functions and application capabilities.
The TS-231P3 also features apps for backup/sync, content management, communications, downloading, and entertainment. Every app can be installed from the QTS App Center with a single click.
Multiply Your Productivity
The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more.
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the TS-231P3, and safeguard email security and personal privacy.
Notes Station 3
Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup.
Smart Filing
Qfiling automates file organization. Files are automatically archived into folders based on your settings.
Full-Text Search
Qsirch quickly finds images, music, videos, documents, emails, and other files.
Flexible and Economical Storage Expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-231P3 storage to accommodate data growth:
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-231P3.
Attach Expansion Enclosure
Connect two RAID expansion enclosures (TR-004 or TR-002) or two USB 3.2 Gen 2 JBOD (TL-D800C) and use the QTS Storage & Snapshots Manager to handle NAS capacity expansion.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
