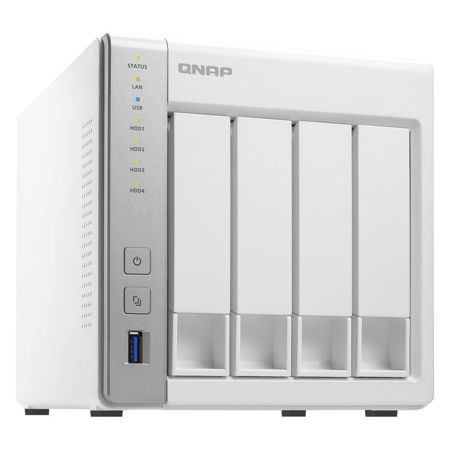

QNAP TS-431P 4-Bay Personal Cloud NAS Enclosure, ARM Cortex A15 Dual-Core 1.7GHz, 1GB RAM

TS-431P - Powerful yet affordable 4-bay NAS for small and home offices

The TS-431P is a powerful yet easy-to-use network storage center for backup, synchronization, remote access, and home entertainment with many feature-rich apps available, including Notes Station (create digital notes on a secure private cloud and share with colleagues and friends), QmailAgent (centralize email account management and back up emails), and Qcontactz (centrally store and manage contact information). All these apps (and more) are available at no extra cost. The dual-core TS-431P features three USB 3.0 ports and dual LAN ports, delivering outstanding multitasking performance to enhance your productivity & digital life and offering an ideal storage and backup center as a secure private cloud.

Dual-core processor delivers high performance
Equipped with an AnnapurnaLabs, an Amazon company Alpine AL-212 dual-core 1.7 GHz Cortex-A15 processor and 1GB DDR3 RAM, the TS-431P is a high-performance NAS for home, workgroups and SOHO users providing outstanding performance of up to 223 MB/s read & 172 MB/s write throughput. The TS-431P's enhanced hardware-based encryption and decryption engine provides transfer speeds of over 190 MB/s with AES 256-bit full NAS volume encryption, boosting system performance & security while ensuring the safety of sensitive personal data stored in the NAS. When used with a compatible 802.11ac or dual-band 2.4GHz/5GHz 802.11n USB Wi-Fi adapter, the TS-431P becomes an ideal media center with remarkably high speeds for transferring a large amount of files and streaming bandwidth-intensive multimedia.

Fast Disaster Recovery with Snapshots
The TS-431P supports block-based Snapshots, which can record and save the state of the file system and the metadata of the files outside the file system at any time. In the event of an unexpected NAS failure or if struck by a ransomware attack, the snapshots remain intact, allowing you to quickly and easily restore the system back to a previous normal state. You can preserve and restore multiple versions of the same file, folder or even the entire volume. The TS-431P supports up to 64 snapshots per volume or LUN (up to 256 in total). Snapshot Replica facilitates double protection that replicates snapshots to a remote QNAP NAS or server.

Note: The Snapshots feature will be available from QTS 4.3.4.

High Efficiency with dual LAN support
The TS-431P supports multiple port-trunking modes, enabling administrators to set up link aggregation to increase total data transmission potential. Failover and dual IP are also supported to ensure continuous system operations. Supported port-trunking modes include: Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing) and Balance-alb (Adaptive Load Balancing).

Enhance productivity with multiple USB 3.0 ports
Equipped with three SuperSpeed USB 3.0 ports, the TS-431P allows you to flexibly arrange tasks with a wide range of external devices without interrupting your current workflow. You can back up files to USB drives, access data stored on SD cards via USB card readers, share up to 3 printers via network, and connect to a UPS to ensure a continual power supply.

QTS - Simple and efficient
Thanks to the intuitive user interface of QTS, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency. QTS breaks the barriers of devices, platforms and geography to bring optimized cloud experiences to you.

Create digital notes on your private cloud
The revamped Notes Station features an optimized interface for a smoother user experience. Notes Station allows users to collectively write documents and helps users to track changes by retaining the revision history of documents. Notes Station provides useful image-editing tools, helping you create well-designed documents. You can also create sharing links to share documents in real time. Documents can also be encrypted to prevent unauthorized access, and snapshot backup is provided to retain different versions of documents from different time periods. With its importing/exporting and full-site backup functions, Notes Station supports backing up your documents to local or remote QNAP NAS.

Note: Notes Station 3 will be available from QTS 4.3

QmailAgent - A mailroom center for your private cloud
QmailAgent is an online email client that helps you manage multiple email accounts, allowing you to access all of your emails and to easily switch between different accounts. It provides complete functionality for composing, reading and organizing emails. You can even attach files, photos and documents from the TS-431P when composing emails. iOS and Android users can use the QmailClient app to quickly check multiple email accounts with mobile devices, and to browse & send emails using the QmailAgent on their TS-431P. You can use QmailAgent together with Qsirch, which supports searching through the .eml files stored on the TS-431P, to make searching through and managing massive amounts of emails much easier.

Note: QmailAgent will be available from QTS 4.3

Qcontactz - Easily manage huge amounts of contacts on the NAS
Qcontactz with the high-capacity TS-431P helps you centrally store and manage contact information for colleagues, business partners, families, and friends. Other features include: importing from Google accounts, importing/exporting CSV or vCARD 3.0 files, automatic identification of frequently-used contacts, encryption for sensitive/confidential contact information, smart searching, and more. Qcontactz offers snapshot backups that enable you to revert to a previous version of your contacts list according to your needs. A companion app for Android phones and iPhone is also available for easy access to contacts. Qcontactz can also be used with QmailAgent to create the perfect email workflow environment.

Note: Qcontactz will be available from QTS 4.3

Well-rounded backup solutions to secure data
The TS-431P is a comprehensive centralized backup center for multiple files. The front panel USB port features a One-touch-copy function for you to instantly back up data on USB drives to the TS-431P or alternatively to back up data from the TS-431P to USB drives. You can use QNAP NetBak Replicator to back up files on Windows (including Outlook email archiving) to the TS-431P, or use Time Machine for Mac data backup. A wide range of third-party backup software (such as Acronis True Image and Symantec Backup Exec) are also supported to facilitate system backup and restoration.

Disaster recovery solutions bring peace of mind
Hybrid Backup Sync consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) into a single app for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. Supported cloud services include Amazon Glacier, Azure Storage, Google Cloud Storage, Google Drive, Microsoft OneDrive, Dropbox, Amazon Drive, Yandex Disk, Box and Amazon S3/OpenStack Swift/WebDAV compatible services. Hybrid Backup Sync supports multi-version backup, flexible job scheduling, file compression to save storage space, and more.

Comprehensive security options
In open network environments, business data may be exposed in a potential hack. The TS-431P provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more. Administrators can also control the access rights of each user to different folders, preventing unauthorized access to important files. The TS-431P supports AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen.

Cross-platform file sharing, centralized data storage
The TS-431P supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the TS-431P.

Manage your files via the Internet
File Station brings conventional desktop-style file operations to web browsers, allowing you to upload, download, and manage files on your TS-431P wherever there is an internet connection. Supporting file extraction, folder creation, and smart search for files and folders, File Station also allows you to easily share files via unique URLs protected with reliable security features, SSL and password options. You can even directly browse and transfer files between the TS-431P and public cloud services like Google Drive, Dropbox, Microsoft OneDrive, Box, Yandex Disk and Amazon Drive, open office files directly with a Google Chrome office extension, and also view your files on Google Docs or Office Online.

Container Station - LXC and Docker Containers inclusive
QNAP Container Station exclusively integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TS-431P as well as download apps from the built-in Docker Hub Registry. It supports container import/export, permission settings, and an Online Document app for directly viewing, editing and storing files of various types on your NAS (including Office documents, images and text files).
