QNAP TS-431XeU Specifications

Hardware

Hardware

Jump to...
  • Processor

    AnnapurnaLabs, an Amazon company, Alpine AL-314 Quad-Core 1.7 GHz

  • Hardware Encryption Accleration

    Yes

  • System Memory

    1x 8GB SO DIMM DDR3-1600

  • Maximum Memory

    1x 8GB SO DIMM DDR3-1600

  • Memory Slot

    1

  • Hard Drive Tray

    4

  • Drive Interface

    SATA 6 Gb/s, HDD or SSD

  • Drive Type

    3.5" or 2.5"

  • 10GbE LAN

    1x 10 Gigabit SFP+ port

  • GbE LAN

    2x Gigabit RJ45 LAN port

  • USB Port

    4x USB 3.0

  • Storage expansion

    1x UX-800U-RP and 1x UX-1200U-RP
    2x UX-800U-RP
    1x UX-800U-RP or UX-1200U-RP
    Up to 24 drives are supported.

  • Fan

    3x 4 cm system fan (12V DC)

  • Power Supply

    100W, 100-240V AC, 50/60Hz, open frame

  • LED Indicators

    HDD1, HDD2, HDD3, HDD4, LAN1, LAN2, 10GbE, STATUS

  • Buttons

    Power, Reset

  • Other Interfaces

    Kensington security slot, console port

  • System Warning

    Buzzer

  • Form Factor

    1U

  • Operating Temperature

    32 - 104 degree F (0 - 40 degree Celsius)

  • Relative Humidity

    5 to 95 % non-condensing, wet bulb: 27 degree of Celsius

  • Noise Level/Sound Level

    20.3 dB

  • Power Consumption

    HDD standby: 12.42
    In operation: 30.99
    (With 4x 2TB HDDs installed)

  • Dimensions (H x W x D)

    1.73 x 17.28 x 11.46" (44 x 439 x 291mm)

  • Weight

    Net: (4.15kg)
    Gross: (5.78kg)

Software

Jump to...
  • Supported disk group types

    RAID 0/1/5/6/10, RAID 5+ hot spare, single, JBOD

  • Supported protocols

    CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP (S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC

  • File sharing

    Maximum number of users: 4096
    Maximum number of user groups: 512
    Maximum shared folders: 512
    Maximum simultaneous connections: 700

  • Other Features

    File Station, Photo Station, Music Station, Video Station, Download Station, Qsync, Notes Station, FTP Server, Print Server, VPN Server, VPN Client, Antivirus Protection

  • Streaming Server

    DLNA Server, Airplay, Chromecast, iTunes Server

  • UPC Code

    885022014040

12 Accessories for QNAP TS-431XEeU 4-Bay 1U Short-Depth Rackmount NAS Enclosure, Alpine AL-314 Quad-Core 1.7GHz, 8GB RAM

  • All Accessories (12)
  • Cables & Adapters (7)
  • Switches (1)
  • Drives & Storage (2)
  • SSD Drives (1)
  • Tools (1)

About QNAP TS-431XeU

FEATURED REVIEWS

Great Network Storage Solution!

By ARTHUR O.

This NAS works very well, providing me with easily accessible storage. It was easy to mount in my rack and it's very quiet for a rack-mount unit.

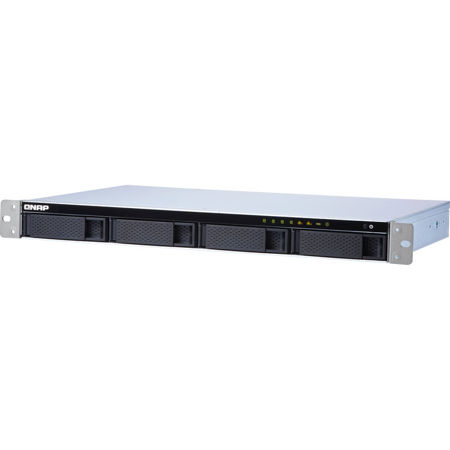

You can elevate your business's data management and security with the TS-431XEeU 4-Bay 1U Short-Depth Rackmount NAS Enclosure. Engineered for high-performance and reliability, this durable NAS solution is powered by an Alpine AL-314 Quad-Core 1.7GHz processor and comes with 8GB of RAM, ensuring smooth and efficient operation.

The TS-431XEeU stands out with its compact short-depth design, making it an ideal fit for space-constrained environments while still offering a spacious 4-bay capacity for extensive storage possibilities. Its user-friendly interface simplifies setup and management, making it accessible even for those with minimal technical expertise.

With a built-in 10GbE SFP+ port, this NAS enclosure is ready to integrate into high-speed networks, providing a cost-effective way to future-proof your IT infrastructure for rapid data transfer rates. This feature, combined with the unit's SSD cache acceleration, significantly enhances the IOPS performance of storage volumes, optimizing the workflow of demanding applications.

The TS-431XEeU's support for snapshots is a game-changer for data protection, allowing you to capture the system status and data at any moment. In the event of a system failure or ransomware attack, you can swiftly restore files from a snapshot, minimizing downtime and data loss.

Designed for continuous operation, the NAS enclosure offers comprehensive RAID configurations and hot-swapping capabilities, ensuring uninterrupted service and data safety. The advanced RAID recovery technology further protects your data by allowing accidental drive removals to be corrected without data loss.

Maximize storage utilization with the innovative VJBOD (Virtual JBOD) feature, which enables you to expand the storage capacity of other QNAP NAS units economically. This flexibility makes the TS-431XEeU a scalable solution for growing storage demands.

For developers and tech enthusiasts, the inclusion of Container Station allows for the rapid deployment of IoT applications, fostering an environment for innovation and modernization of legacy systems.

The intelligent QTS operating system enhances the user experience with a streamlined interface, real-time system monitoring, and a comprehensive App Center. Cross-platform file sharing and synchronization are optimized, facilitating collaboration and project management across different operating systems.

The TS-431XEeU is equipped with robust backup and disaster recovery solutions, supporting a variety of cloud services and providing a solid plan for safeguarding your data. Security is a top priority, with numerous options to protect your data from unauthorized access, including encrypted connections, IP blocking, and two-factor authentication.

For secure remote access, the NAS enclosure serves as both a VPN server and client, ensuring that your data remains safe when accessing your network from afar.

Lastly, the powerful Qsirch search engine dramatically reduces the time spent searching for files, while QmailAgent and Surveillance Station offer comprehensive solutions for email management and security surveillance, respectively.

The TS-431XEeU 4-Bay 1U Short-Depth Rackmount NAS Enclosure is a reliable, high-performance, and user-friendly solution that will meet the needs of businesses looking for a secure and efficient way to manage and share their data.

QNAP TS-431XeU Features

  • The short depth design is suitable for installing in smaller racks or space-constrained locations
  • 10GbE readiness, SSD caching, and encryption acceleration engine
  • VJBOD allows using the TS-431XeU to expand the storage capacity of other QNAP NAS
  • Containerized virtualization and IoT app development with Container Station
  • Build a private cloud to centrally organize & manage files and backup tasks
  • Secure access with VPN Server & VPN Client
  • Qsirch, the full text search engine, helps quickly locate files on the NAS
  • Expand the total storage capacity up to 24 drives by connecting up to 2 QNAP expansion enclosure (UX-1200U-RP or UX-800U-RP)

Key Features

  • High-performance 4-bay NAS enclosure with Alpine AL-314 Quad-Core 1.7GHz processor and 8GB RAM
  • Compact short-depth design ideal for space-constrained environments
  • Integrated 10GbE SFP+ port for high-speed network connections
  • Advanced data protection with snapshot support and RAID configurations
  • Versatile VJBOD feature for economical storage expansion across multiple QNAP NAS units

What's in the box:

  • TS-431XeU NAS
  • 2x Ethernet Cable
  • Flat-Head Screws for 3.5 " HDD
  • Flat-Head Screws for 2.5 " HDD
  • Power Cord
  • 2x Hanger
  • 2x Holder
  • Quick Installation Guide
  • Qnap 2 Year Limited Warranty
