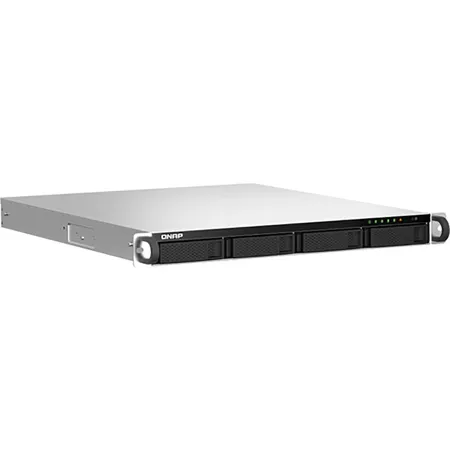

QNAP TS-464U 4-Bay 1U Rackmount NAS Enclosure, Intel Celeron N5095, 8GB RAM, Diskless

Intel quad-core rackmount NAS with dual-port 2.5GbE and PCIe expandability for high-speed transmission and virtualization applications

Powered by an Intel Celeron N5095, quad-core processor (burst up to 2.9GHz), the TS-464U features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combine bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U provides flexibility in extending NAS functionality, allowing you to install various cards: 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance.

The TS-464U uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)

2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

PCIe expandability
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

Snapshots
Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.

License-free virtualized environment
Host multiple containerized apps to run a wide range of applications and services.

Drives Auto-Tiering
Qtier auto-tiering technology and SSD caching enable constant storage optimization.

Flexible expansion
Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.

Quad-core high performance
The TS-464U is powered by an Intel Celeron N5095 quad-core processor and supports 8GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance.

Streamline large file transfers and video editing with 2.5GbE
The TS-464U comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-proof your IT infrastructure for high-speed networks
The TS-464U is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-464U. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O capabilities with PCIe expansion
The TS-464U has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.

2.5/5/10GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).

QM2 card
Add M.2 SSD caching, Edge TPU or 10GbE network connectivity to the NAS for optimize performance and bandwidth.

USB 3.2 Gen 2 (10Gbps) card
Add extra USB ports to the TS-464U.

Wireless adapter
Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TS-464U into a wireless NAS. Or make the TS-464U a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.

SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-464U supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-464U with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Direct 4K HDMI output for multimedia and virtual machine display
The TS-464U features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 1.4b output supports up to 4K (3840 x 2160p) @60Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-464U to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-464U as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

Faster image identification with integrated Intel OpenVINO AI engine.
With integrated Intel OpenVINO AI computing resources, the TS-464U accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QuMagie photo management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.

QTS 5, Fast, smooth, and easy-to-use!
The TS-464U comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You'll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows - every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Switch to QuTS hero operating system for optimal data integrity and reliability
The TS-464U also supports QuTS hero - QNAP's ZFS-based NAS operating system, providing end-to-end data integrity, WORM protection, data reduction (inline data deduplication, compression, and compaction), and much more.

Comprehensive backup and disaster recovery solution
The TS-464U supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup
For Windows, install NetBak Replicator to back up your PC to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-464U to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.

Cloud backup for NAS
Use Hybrid Backup Sync to back up NAS data to myQNAPcloud Storage or other mainstream cloud space. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats
The TS-464U supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-464U to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
