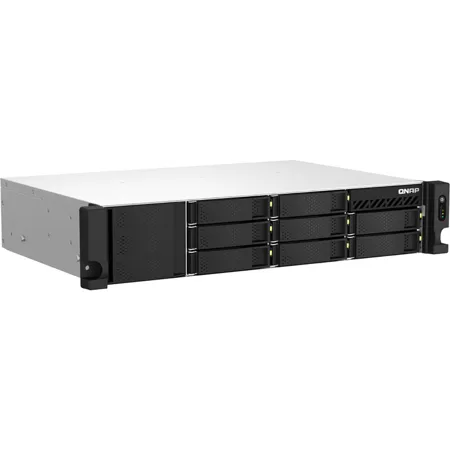

QNAP TS-864eU 8-Bay 2U Short-Depth Rackmount NAS Enclosure, Intel Celeron N5095, 8GB RAM, Diskless

Short depth rackmount 2.5GbE NAS, space-efficient design with PCIe expandability and HDMI output

The TS-864eU is powered by Intel Celeron N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU surpasses the previous generation.

The TS-864eU uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)

2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.

HDMI Output
Supports 4K media playback and real-time transcoding.

PCIe expandability
One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.

USB interface
Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.

Backup and data recovery
Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.

Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.

Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB
The TS-864eU is powered by Intel Celeron N5095 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.

Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A fast 2.5GbE NAS
A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Upgrade computers and servers
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add a 5GbE port to laptops
Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

A switch that supports 2.5GbE+
QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

Future-proof your IT infrastructure for high-speed networks
The TS-864eU is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-864eU. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O capabilities with PCIe expansion
The TS-864eU has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.

2.5/5/10GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).

QM2 card
Add M.2 SSD caching, Edge TPU or 10GbE network connectivity to the NAS for optimize performance and bandwidth.

USB 3.2 Gen 2 (10Gbps) Expansion Card
Add extra USB ports to the TS-864eU.

SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-864eU supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-864eU with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Faster image identification with integrated Intel OpenVINO AI engine.
With integrated Intel OpenVINO AI computing resources, the TS-864eU accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QuMagie photo management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.

Direct 4K HDMI output for multimedia and virtual machine display
The TS-864eU features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 1.4b output supports up to 4K @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display.

By connecting the TS-864eU to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-864eU as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

QTS 5, Fast, smooth, and easy-to-use!
The TS-864eU comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You'll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows - every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps

Switch to QuTS hero operating system for optimal data integrity and reliability
The TS-864eU also supports QuTS hero - QNAP's ZFS-based NAS operating system, providing end-to-end data integrity, WORM protection, data reduction (inline data deduplication, compression, and compaction), and much more.

Comprehensive backup and disaster recovery solution
The TS-864eU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup
For Windows, install NetBak Replicator to back up your PC to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-864eU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.

Cloud backup for NAS
Use Hybrid Backup Sync to back up NAS data to myQNAPcloud Storage or other mainstream cloud space. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats
The TS-864eU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-864eU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
