This item is no longer available.

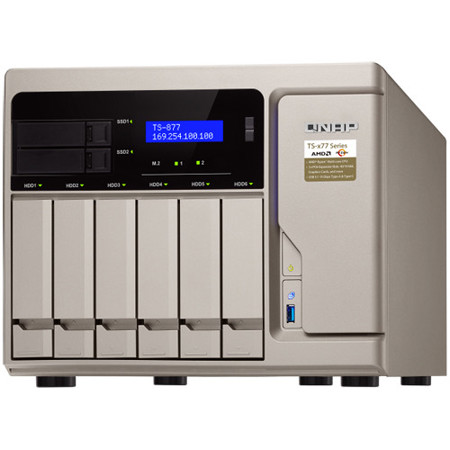

TS-877 - The first Ryzen-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences.
The TS-877 powered by AMD's new 14nm Ryzen processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-877 the preeminent choice to tackle resource-demanding applications and tasks.
Absolute performance with AMD Ryzen and up to 64GB RAM
Powered by a high-performance AMD Ryzen 7 1700 or AMD Ryzen 5 1600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877 delivers aggressive yet power-smart performance to meet your multitasking demands and is capable of running up to 7 virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-877 with gold-standard performance is your ideal choice.
Top-class hardware engineering
The feature-packed hardware of the TS-877 bolsters overall system performance. Coupled with the flexible and expandable architecture, the TS-877 fulfills diversified application needs.
Extend NAS functionality with PCIe slots
The TS-877 features three PCIe slots (1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x4) that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.
10GbE/ 40GbE adapters
Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.
QM2 M.2 SSD/10GbE cards
Install QNAP's innovative QM2 M.2 SSD/10GbE card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.
Note: The QM2 card can only be installed in the System Zone PCIe slot (PCIe slot 1). A QM2 card and a graphics card cannot be installed in the same NAS when both cards require PCIe slot 1.
Wireless network cards
Install a compatible wireless network card to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
Fuel GPU-accelerated computing with a 450W power supply
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared to other hardware. The TS-877 offers PCIe slots to support AMD Radeon or NVIDIA graphics cards and a 450 watt power supply that is capable of powering a graphics card for boosting imaging processing in QTS and performance of virtual machines via GPU passthrough. When enjoying videos with the TS-877, you can use the remote control (RM-IR004, optional purchase) that supports QButton for a more convenient control of your multimedia experience.
Note:
1. The 450 watt power supply unit provides a 8-pin (6+2) power connector and a 6-pin power connector for a graphics card.
2. When Virtualization Station uses graphics cards, the NAS will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
3. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for VM is supported by AMD and NVIDIA graphics cards.
4. TS-877 supports graphics cards with dimensions up to 266 x 112 x 45 mm.
5. Consult the Compatibility List for information on supported NAS and graphics cards.
SSD caching and auto tiering enable 24/7 optimized storage efficiency
The TS-877 provides two 2.5-inch SSD slots dedicated for caching to increase IOPS performance, and supports optional M.2 SATA 6Gb/s SSDs. Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-877 with auto tiering that further helps continuously optimize storage efficiency across M.2 SSD, SSD, and high-capacity SATA drives with around-the-clock acceleration. The new Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Note: M.2 SSD sold separately. M.2 SSD operations can easily generate excessive heat, and it is recommended to install a heatsink (from QNAP or a third-party provider) on M.2 SSD.
Performance & reliability. Your wise choice.
The TS-877 supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.
RAID 50/60
For businesses using NAS with over 10 disks, RAID 50/60 not only provides greater data protection than a single RAID 5/6, but also maximizes usable storage space compared to RAID 10. Besides data storage, and with an obvious random write performance boost when using SSD RAID, RAID 50/60 also offers a great choice for professional video streaming and database usage.
iSER
iSCSI Extensions for RDMA (iSER) protocol working with a compatible 10GbE/40GbE SFP+ NIC helps boost data transfer performance of the TS-877 as VMware ESXi storage, providing an essential tool to optimize demanding virtualization applications.
Central management
Designed for IT administrators, QRM+ provides a single-point solution to discover, map, monitor and manage all Windows, Linux and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-877 supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware, Citrix, Microsoft Hyper-V and Windows Server 2012 R2, the TS-877 provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
All-in-one server to host virtual machines and containers
Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.
Virtualization Station
Virtualization Station allows you to run multiple Windows, Linux, UNIX, Android and vQTS virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Container Station integrates LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry. It supports container import/export and permission settings. It's easy deployment, portable, and efficient.
Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!
QNAP 10GbE/NBASE-T unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provide a 10GbE PCIe network expansion card for the TS-877 and Windows/Linux PCs to take advantage of high-speed LAN environments.
QTS - Intelligent, intuitive and creative NAS operating system
With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps realizes far more extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.
Optimized collaboration with seamless file sharing and sync
The TS-877 centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-877 will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.
Complete backup planning
The TS-877 provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore Windows files, alongside Time Machine support for Mac devices. It is easy, fast and convenient
